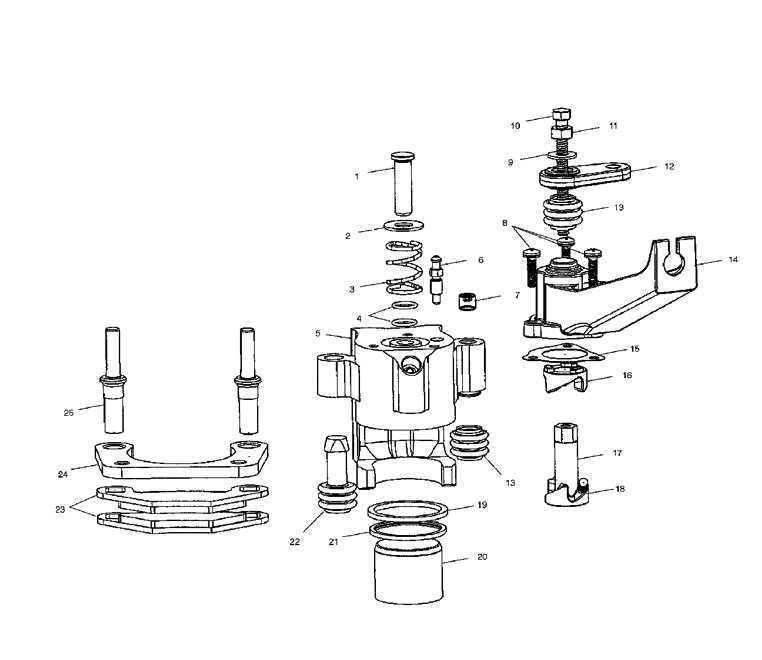

REAR BRAKE CALIPERS для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска

№

Артикул

Название
1

5133195 PLUNGER-BRAKE

PLUNGER-BRAKE
2

7556205 WSHR-FLAT,PLUNGER

WSHR-FLAT,PLUNGER
3

1910581 SPRING-COMPRESSION

SPRING-COMPRESSION
4

5412127 O-RING-1/16 C/SX3/8X1/2 OD

O-RING-1/16 C/SX3/8X1/2 OD
5

1910508 ASM-CALIPER,BRAKE,1.5,LH,W/PB (INC 5-25)

ASM-CALIPER,BRAKE,1.5,LH,W/PB (INC 5-25)
5

1910509 ASM-CALIPER,BRAKE,1.5,RH,W/PB (INC 5-25)

ASM-CALIPER,BRAKE,1.5,RH,W/PB (INC 5-25)
6

7080352 SCREW,BLEEDER

SCREW,BLEEDER
7

7515489 SCR-3/8-24X5/16 SOC SET-Y

SCR-3/8-24X5/16 SOC SET-Y
8

7517963 SCR-10-32X.62 PHILLIPS SIMS

SCR-10-32X.62 PHILLIPS SIMS
9

7556206 WSHR-1/4'' FLAT,.060 THK

WSHR-1/4'' FLAT,.060 THK
10

7517964 BOLT-1/4-20X2 1/2 LG HEX HEAD

BOLT-1/4-20X2 1/2 LG HEX HEAD
11

7542105 NUT HEX

NUT HEX
12

5133196 LEVER-BRAKE ACTUATOR

LEVER-BRAKE ACTUATOR
13

5410494 BOOT-PIN SEAL

BOOT-PIN SEAL
14

5245793 BRKT-HOUSING, LEFT HAND

BRKT-HOUSING, LEFT HAND
14

5245794 BRKT-HOUSING, RIGHT HAND

BRKT-HOUSING, RIGHT HAND
15

5830214 GASKET-RAMP

GASKET-RAMP
16

5133199 INSERT-BALL TRACK, LEFT HAND

INSERT-BALL TRACK, LEFT HAND
16

5133201 INSERT-BALL TRACK, RIGHT HAND

INSERT-BALL TRACK, RIGHT HAND
17

5133202 BRAKE-ACTUATOR, LEFT HAND

BRAKE-ACTUATOR, LEFT HAND
17

5133203 BRAKE-ACTUATOR, RIGHT HAND

BRAKE-ACTUATOR, RIGHT HAND
18

3514375 BALL-.187 STEEL

BALL-.187 STEEL
19

5412010 SEAL-CALIPER INNER,1.50''

SEAL-CALIPER INNER,1.50''
20

5132829 PISTON-BRAKE,1.500

PISTON-BRAKE,1.500
21

5412011 SEAL-CALIPER,OUTER,1.50''

SEAL-CALIPER,OUTER,1.50''
22

5410495 BOOT-PIN BUSHING

BOOT-PIN BUSHING
23

1910514 KIT-BRAKE PAD,ASM,1.5

KIT-BRAKE PAD,ASM,1.5
24

5133197 BRACKET

BRACKET
25

5910023 SLIDER

SLIDER
