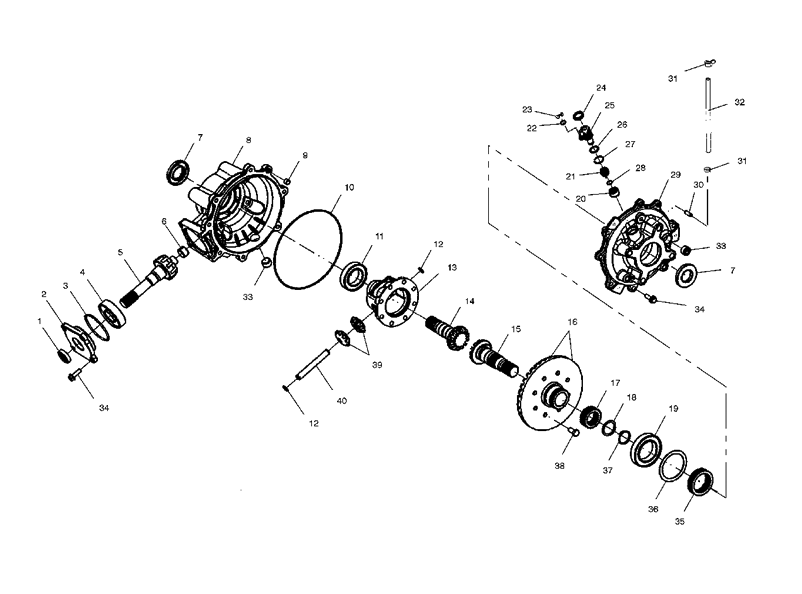

GEARCASE - REAR для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
-1341442 ASM-GEARCASE,REAR,DIFASM-GEARCASE,REAR,DIF
-
13233785 SEAL-TRIPLE LIPSEAL-TRIPLE LIP
-
23233800 COVER-INPUTCOVER-INPUT
-
33233801 O-RINGO-RING
-
43233589 BEARING,BALLBEARING,BALL
-
53233802 PINION-10TPINION-10T
-
63233577 BUSHINGBUSHING
-
73233803 SEALSEAL
-
83233804 CASE-FRONTCASE-FRONT
-
93233529 PIPE,KNOCKPIPE,KNOCK
-
103233824 O-RING 182MMX3MMO-RING 182MMX3MM
-
113233806 BEARING-BALLBEARING-BALL
-
123233807 RING-RETAINING,DIFFRING-RETAINING,DIFF
-
133233810 HOUSING-DIFFERENTIAL LOCKHOUSING-DIFFERENTIAL LOCK
-
143233811 GEAR-OUTPUT SHAFT RH 14TGEAR-OUTPUT SHAFT RH 14T
-
153233812 GEAR-OUTPUT SHAFT LH 14TGEAR-OUTPUT SHAFT LH 14T
-
163233813 GEAR-RING,37TGEAR-RING,37T
-
173233815 COLLAR-SPINEDCOLLAR-SPINED
-
183233378 WASHER,THRUSTWASHER,THRUST
-
193233268 BEARING, BALLBEARING, BALL
-
203233822 ACTUATOR-CAMACTUATOR-CAM
-
213233820 SPRING-TORSIONSPRING-TORSION
-
227555923 WASHERWASHER
-
237661140 PIN-CLIP,14MMPIN-CLIP,14MM
-
243233823 SEAL-VRINGSEAL-VRING
-
253233818 ACTUATORACTUATOR
-
265410440 O RINGO RING
-
273233819 RING-RETAININGRING-RETAINING
-
283233821 RING-RETAININGRING-RETAINING
-
293233817 COVER-OUTPUTCOVER-OUTPUT
-
303233524 TUBE,VENTTUBE,VENT
-
317670102 CLIPCLIP
-
328450003-600 HOSEHOSE
-
333233805 PLUG-DRAINPLUG-DRAIN
-
343233252 SCREWSCREW
-
353233816 DOG-ENGAGEMENTDOG-ENGAGEMENT
-
363233581 SHIM 3.1 X 2.5SHIM 3.1 X 2.5
-
373233377 RING,RETAININGRING,RETAINING
-
383233814 SCREW-CAPSCREW-CAP
-
393233809 PINION-DIFF 10TPINION-DIFF 10T
-
403233808 PIN-PINION,DIFFPIN-PINION,DIFF
