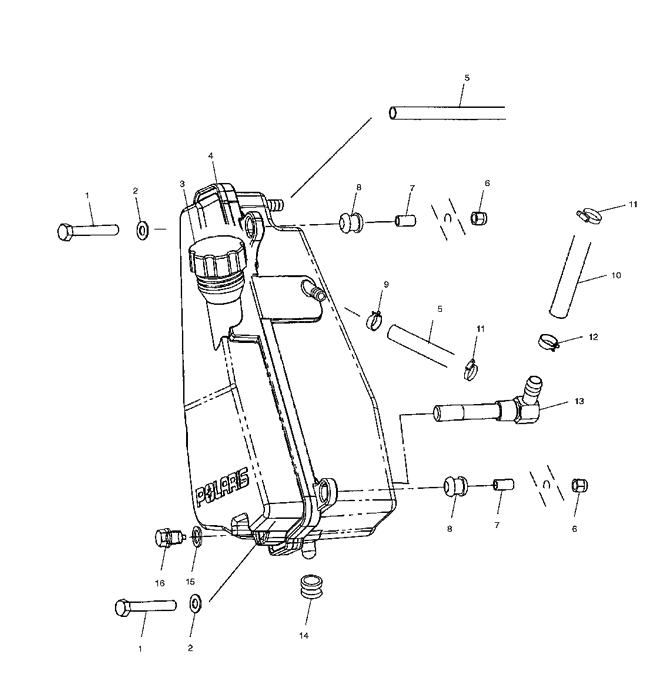

OIL TANK (IF BUILT AFTER 1/01/02) для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
17512163 BOLTBOLT
-
27558301 WASHER, FLATWASHER, FLAT
-
35434307 DIPSTICKDIPSTICK
-
41261175 TANK OIL,PLASTICTANK OIL,PLASTIC
-
58450073-100 HOSEHOSE
-
67542122 NUT-NYLOKNUT-NYLOK
-
75333204 BUSHING,MTG.BUSHING,MTG.
-
85410828 GROMMET,MTG,RESERVOIRGROMMET,MTG,RESERVOIR
-
97080699 CLAMP,HOSECLAMP,HOSE
-
108450096 HOSEHOSE
-
117080474 CLAMP, HOSECLAMP, HOSE
-
127081026 CLAMP-HOSE,SPRING .81CLAMP-HOSE,SPRING .81
-
137052326 SCREEN-OIL FILTER,90°SCREEN-OIL FILTER,90°
-
145411042 GROMMETGROMMET
-
155850135 WASHERWASHER
-
167051524 PLUGPLUG
Все узлы модели:
- AIR BOX ASSY.
- BED - REAR
- BRAKE - FRONT CALIPER
- BRAKE - REAR W/ FOOT PEDAL
- BRAKE LINES - MASTER CYLINDER
- CAB FRAME
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CHASSIS - BODY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- DRIVESHAFT - REAR
- ELECTRICAL - BATTERY
- ENGINE AND CLUTCH AIR INTAKE
- EXHAUST SYSTEM
- FLYWHEEL COVER
- FUEL TANK
- GEAR SELECTOR - DIFFERENTIAL LOCK
- GEARCASE
- GEARCASE - REAR
- HOOD
- MAGNETO
- MOLDINGS AND SEAT
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- • OIL TANK (IF BUILT AFTER 1/01/02)
- OIL TANK (IF BUILT BEFORE 1/01/02)
- PARK BRAKE LOCK
- REAR BRAKE CALIPERS
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SHOCK
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- THROTTLE
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
