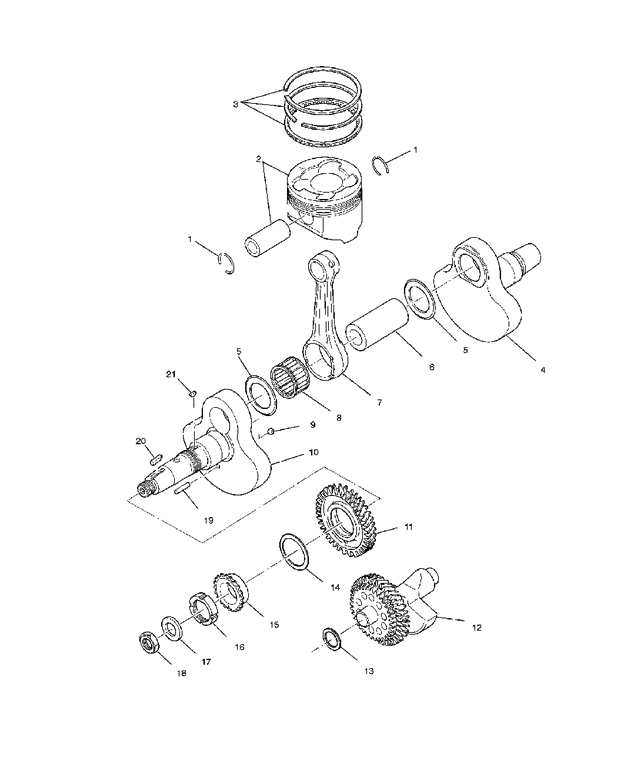

CRANKSHAFT W/ PISTON для Polaris RANGER 2X4 SERIES 10 [A10RB42AA] - 2003 года выпуска
-
№АртикулНазвание
-
13085534 CLIPCLIP
-
23086207 SET, PISTON STD (INC PIN)SET, PISTON STD (INC PIN)
-
23086208 SET,PISTON,.010"/.25MM O/S (INC PIN)SET,PISTON,.010"/.25MM O/S (INC PIN)
-
23086209 SET,PISTON,.020''/.50MM O/S (INC PIN)SET,PISTON,.020''/.50MM O/S (INC PIN)
-
33086488 SET,PISTON,RING STDSET,PISTON,RING STD
-
33086489 SET,PISTON,RING .010"/.25MM O/SSET,PISTON,RING .010"/.25MM O/S
-
33086490 SET,PISTON,RING,.020"/.50MM O/SSET,PISTON,RING,.020"/.50MM O/S
-
43085340 CRANKSHAFT #2CRANKSHAFT #2
-
53085344 SPACER,CRANK PINSPACER,CRANK PIN
-
63085341 PIN-CRANKPIN-CRANK
-
73086206 ROD,CONNECTINGROD,CONNECTING
-
83085400 BEARING,LARGE ENDBEARING,LARGE END
-
93085024 BALL, STEELBALL, STEEL
-
103084881 CRANKSHAFT (INC 4-11,19)CRANKSHAFT (INC 4-11,19)
-
103085339 CRANKSHAFT #1CRANKSHAFT #1
-
113085852 GEAR,BALANCER #1GEAR,BALANCER #1
-
123085404 SHAFT,BALANCERSHAFT,BALANCER
-
133084895 SPACER,0.8SPACER,0.8
-
133084896 SPACER,1.0SPACER,1.0
-
133084897 SPACER,1.2SPACER,1.2
-
143240088 SPACER,0.6SPACER,0.6
-
143084892 SPACER,0.8SPACER,0.8
-
143084893 SPACER,1.0SPACER,1.0
-
143084894 SPACER,1.2SPACER,1.2
-
153084882 SPROCKET 1SPROCKET 1
-
163085528 NUT,SLITNUT,SLIT
-
173083904 WASHERWASHER
-
183083905 NUT,LOCKNUT,LOCK
-
193085346 PIN, DOWELPIN, DOWEL
-
203081447 KEYKEY
-
213080130 KEY WOODRUFFKEY WOODRUFF
