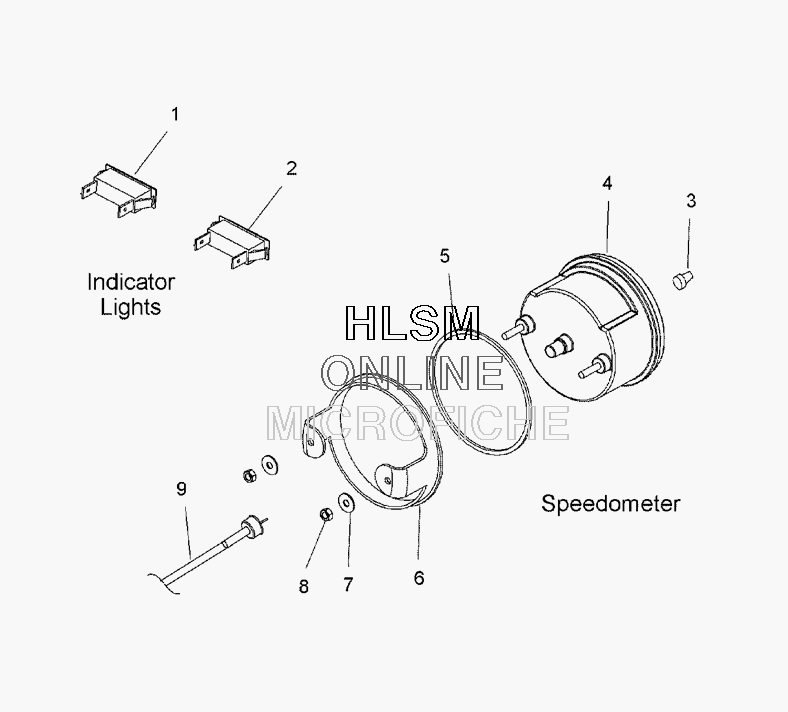

SPEEDOMETER W/INDICATOR LIGHTS для Polaris WIDETRACK LX AND EURO (S09SU4BSBE) - 2009 года выпуска
-
№АртикулНазвание
-
14040011 INDICATOR'TEMP'WARN.INDICATOR'TEMP'WARN.
-
24040019 INDICATOR'REVERSE'WARN.INDICATOR'REVERSE'WARN.
-
33280186 KNOB, TRIP ODOMETER, LEFT HAND THD.KNOB, TRIP ODOMETER, LEFT HAND THD.
-
43280407 ASM-SPEEDO, 5'', 120 MPH, WHT/BKASM-SPEEDO, 5'', 120 MPH, WHT/BK
-
44030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
53280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
63280210 BRKT, TACH/SPEEDO, 5''BRKT, TACH/SPEEDO, 5''
-
73280157 WASHER, FLATWASHER, FLAT
-
87546703 NUT, NYLOKNUT, NYLOK
-
97081499 ASM-SPEEDO CABLE W/FOILASM-SPEEDO CABLE W/FOIL
-
95811763 TAPE, FOIL1.5''X12''3M1430/5.5MILTAPE, FOIL1.5''X12''3M1430/5.5MIL
