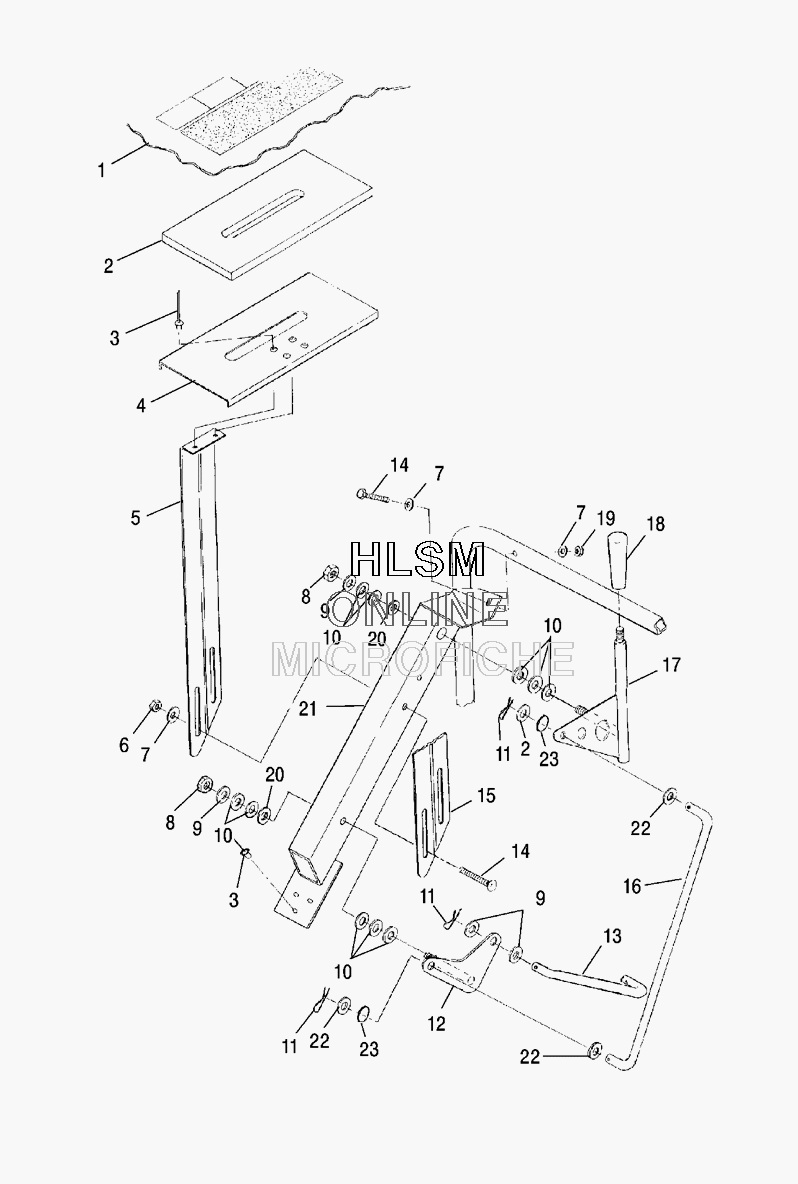

SHIFT LINKAGE для Polaris WIDETRACK LX AND EURO (S09SU4BSBE) - 2009 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7077619 DECAL, SHIFT PATTERN
    DECAL, SHIFT PATTERN
  • 2
    5813233 FOAM-INDICATOR PLATE
    FOAM-INDICATOR PLATE
  • 3
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 4
    5243204 PLATE-INDICATOR
    PLATE-INDICATOR
  • 5
    5241897 SUPPORT, RIGHT HAND, INDIC. PLATE
    SUPPORT, RIGHT HAND, INDIC. PLATE
  • 6
    7542101 NUT HEX-LOCK
    NUT HEX-LOCK
  • 7
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 8
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 9
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 10
    7555820 WASHER, FLAT
    WASHER, FLAT
  • 11
    7661203 PIN, COTTER
    PIN, COTTER
  • 12
    1012558 PLATE, LOWER PIVOT
    PLATE, LOWER PIVOT
  • 13
    5224770 ROD, LINKAGE, LOWER
    ROD, LINKAGE, LOWER
  • 14
    7517931 BOLT-CARR 1/4-20 UNC-2AX1.5-Y
    BOLT-CARR 1/4-20 UNC-2AX1.5-Y
  • 15
    5241896 SUPPORT, LEFT HAND, INDIC. PLATE
    SUPPORT, LEFT HAND, INDIC. PLATE
  • 16
    5224769 ROD, UP.LINKAGE
    ROD, UP.LINKAGE
  • 17
    1341250 ROD, SHIFT LEVER
    ROD, SHIFT LEVER
  • 18
    5132004 HANDLE-SHIFT
    HANDLE-SHIFT
  • 19
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 20
    7571619 WASHER, WAVE
    WASHER, WAVE
  • 21
    1012559 SUPPORT, SHIFT LEVER ROD
    SUPPORT, SHIFT LEVER ROD
  • 22
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 23
    5410542 O RING
    O RING
