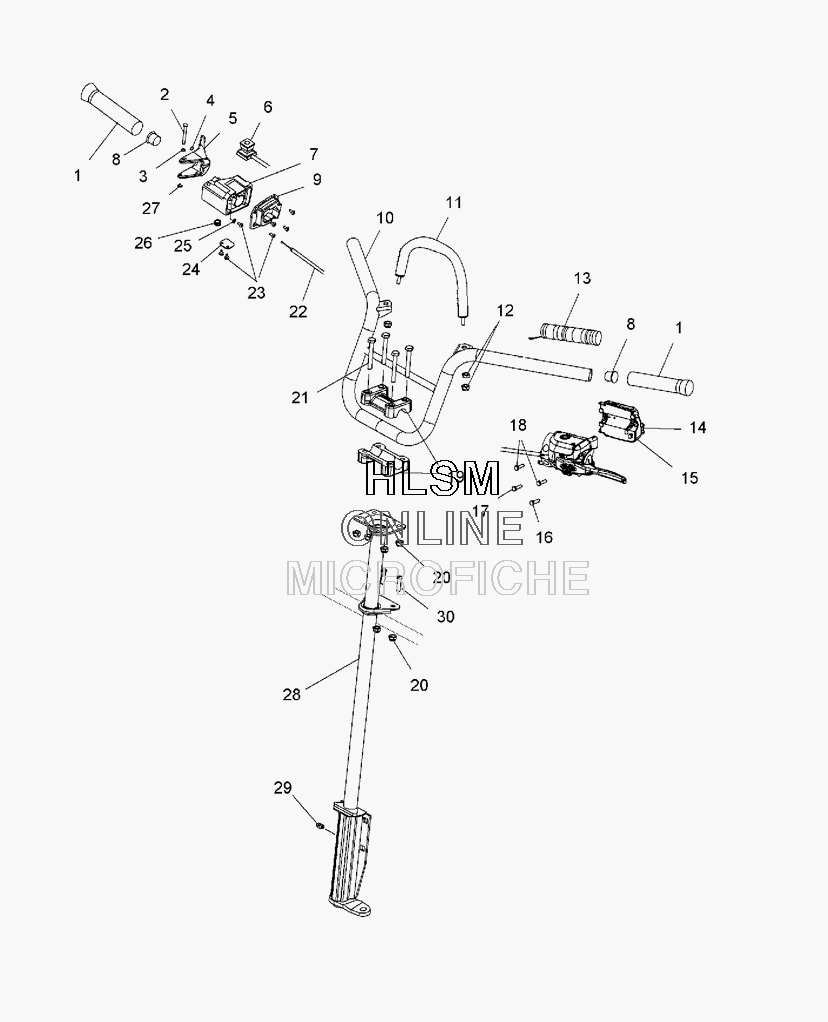

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris WIDETRACK LX AND EURO (S09SU4BSBE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 2
    7661624 PIN-RETAINING
    PIN-RETAINING
  • 3
    7555730 WASHER
    WASHER
  • 4
    7710401 RING, RETAINING
    RING, RETAINING
  • 5
    2010271 ASM-LEVER, HTR, HI/LO 35.5MM
    ASM-LEVER, HTR, HI/LO 35.5MM
  • 5
    5432970 THROTTLE, LEVER, 35.5MM
    THROTTLE, LEVER, 35.5MM
  • 6
    4011541 SWITCH
    SWITCH
  • 7
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 8
    5431096 PLUG
    PLUG
  • 9
    5430604 BLOCK-ADAPTER
    BLOCK-ADAPTER
  • 10
    1822958-067 HANDLEBAR
    HANDLEBAR
  • 11
    2683815-070 BAR-MOUNTAIN, BLACK
    BAR-MOUNTAIN, BLACK
  • 12
    7542344 NUT, NYLOK
    NUT, NYLOK
  • 12
    7547107 NUT5/16-18, HX, JAM
    NUT5/16-18, HX, JAM
  • 13
    2410778 HEATER-GRIP, LO/MED/HI, STD
    HEATER-GRIP, LO/MED/HI, STD
  • 14
    5433291 BUTTON SWITCH HI/LO, LEFT HAND CONTROL
    BUTTON SWITCH HI/LO, LEFT HAND CONTROL
  • 15
    2010305 ASM-CONTROL, LEFT HAND, (BASIC) (INCL. 14)
    ASM-CONTROL, LEFT HAND, (BASIC) (INCL. 14)
  • 16
    7517566 SCREW, 1.50
    SCREW, 1.50
  • 17
    7512078 SCREW, 1.12
    SCREW, 1.12
  • 18
    7517441 SCREW, .75
    SCREW, .75
  • 19
    5630187-067 BLOCK, HANDLEBAR, BLACK
    BLOCK, HANDLEBAR, BLACK
  • 20
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 21
    7517238 SCREW
    SCREW
  • 22
    7080554 CABLE, THROTTLE, W/OIL
    CABLE, THROTTLE, W/OIL
  • 23
    7511848 SCREW
    SCREW
  • 24
    5432261 HOLDER-WIRE
    HOLDER-WIRE
  • 25
    7555727 WASHER
    WASHER
  • 26
    7512465 SCREW, SET
    SCREW, SET
  • 27
    7710503 RING, RETAINING
    RING, RETAINING
  • 28
    1823182-067 POST, STEERING, BLACK
    POST, STEERING, BLACK
  • 29
    7080433 FITTING, LUBRICATION, THREADED
    FITTING, LUBRICATION, THREADED
  • 30
    7518264 SCR-1/4-20X1 1/2 PH/TRX-GR5-Y
    SCR-1/4-20X1 1/2 PH/TRX-GR5-Y
