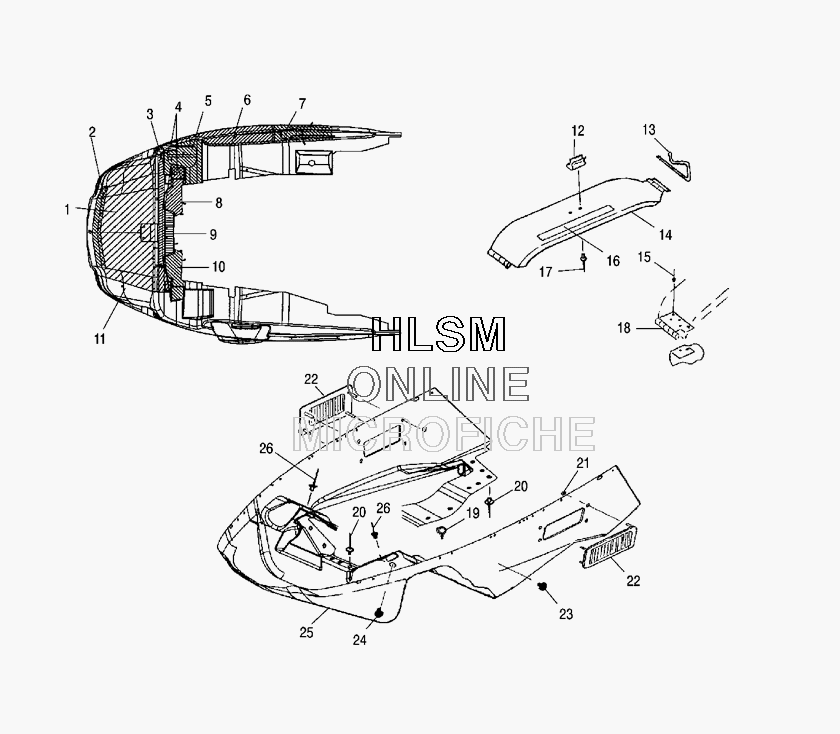

NOSEPAN AND FOIL для Polaris WIDETRACK LX AND EURO (S09SU4BSBE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5811618 FOIL, TAPE, PAN #1
    FOIL, TAPE, PAN #1
  • 2
    5811745 FOIL, TAPE, PAN, FRT
    FOIL, TAPE, PAN, FRT
  • 3
    5810492 FOIL
    FOIL
  • 4
    5810498 TAPE, FOIL, PAN#8
    TAPE, FOIL, PAN#8
  • 5
    5810496 FOIL, TAPE, #6
    FOIL, TAPE, #6
  • 6
    5810497 TAPE, FOIL, PAN#7
    TAPE, FOIL, PAN#7
  • 7
    5811458 FOIL-TAPE, 12''X12''
    FOIL-TAPE, 12''X12''
  • 8
    5810494 TAPE, FOIL, PAN#4
    TAPE, FOIL, PAN#4
  • 9
    5810495 TAPE, FOIL, PAN#5
    TAPE, FOIL, PAN#5
  • 10
    5810493 TAPE, FOIL, PAN#3
    TAPE, FOIL, PAN#3
  • 11
    5810345 FOIL, TAPE
    FOIL, TAPE
  • 12
    5222769 CLIP, BELT RETAINER
    CLIP, BELT RETAINER
  • 13
    7080698 PIN, CLUTCH GUARD
    PIN, CLUTCH GUARD
  • 14
    1012557 GUARD ASM, CLUTCH
    GUARD ASM, CLUTCH
  • 15
    7621402 RIVET, POP
    RIVET, POP
  • 16
    7075350 DECAL, ENGINE AND CLUTCH (CPSC)
    DECAL, ENGINE AND CLUTCH (CPSC)
  • 17
    7621429 RIVET
    RIVET
  • 18
    5211722 PLATE, BACKER
    PLATE, BACKER
  • 19
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 20
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 21
    7670009 PALNUT
    PALNUT
  • 22
    5437158-070 GRILL-LOUVERED, WT, BLACK
    GRILL-LOUVERED, WT, BLACK
  • 23
    5410344 PLUG
    PLUG
  • 24
    5410820 PLUG, HOLE
    PLUG, HOLE
  • 25
    5436970 NOSEPAN-HYB, W/T, BLACK
    NOSEPAN-HYB, W/T, BLACK
  • 26
    7621418 RIVET, POP
    RIVET, POP
