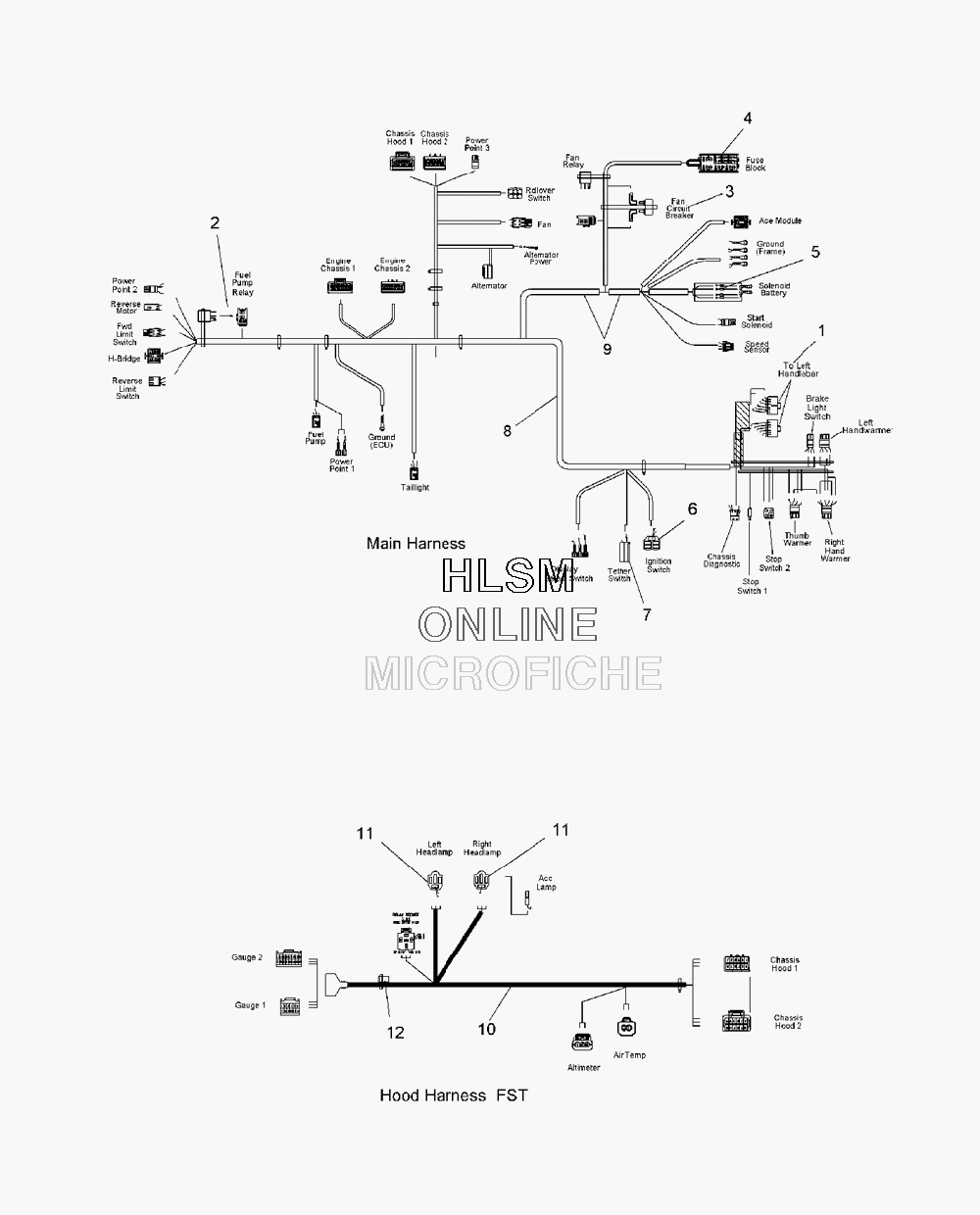

WIRE HARNESS - MAIN HOOD для Polaris FST IQ CRUSIER (S07PY7FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    4010193 HOUSING-CONNECTOR,PAC#12186213
    HOUSING-CONNECTOR,PAC#12186213
  • 2
    4010948 RELAY-MICRO,SPST,35A,SEALED
    RELAY-MICRO,SPST,35A,SEALED
  • 3
    2410692 BREAKER-CIRCUIT,10 AMP,SEALED
    BREAKER-CIRCUIT,10 AMP,SEALED
  • 4
    2434017 FUSE,PARK,20 AMP,
    FUSE,PARK,20 AMP,
  • 4
    2434015 FUSE,MAIN,30 AMP,
    FUSE,MAIN,30 AMP,
  • 4
    7173525 DECAL. FUSE BOX, 4S
    DECAL. FUSE BOX, 4S
  • 4
    4010948 RELAY-MICRO,SPST,35A,SEALED
    RELAY-MICRO,SPST,35A,SEALED
  • 5
    2202147 KIT-FUSIBLE LINK
    KIT-FUSIBLE LINK
  • 5
    2202607 KIT-FUSIBLE LINK,0.8 MM
    KIT-FUSIBLE LINK,0.8 MM
  • 5
    2202670 KIT-FUSIBLE LINK,1.0MM
    KIT-FUSIBLE LINK,1.0MM
  • 6
    4020062 RECEPTACLE HOUSING
    RECEPTACLE HOUSING
  • 7
    4020063 HOUSING,PACK
    HOUSING,PACK
  • 8
    2410489 HARNESS-MAIN WIRE,W/M10 ACE
    HARNESS-MAIN WIRE,W/M10 ACE
  • 9
    2410694 DIODE-6AMP, 1/4 TERM
    DIODE-6AMP, 1/4 TERM
  • 10
    2410767 HARNESS-HOOD,FS/T
    HARNESS-HOOD,FS/T
  • 11
    4020052 HEADLAMP
    HEADLAMP
  • 12
    4011149 BATTERY-CLOCK,3V CR2032
    BATTERY-CLOCK,3V CR2032
