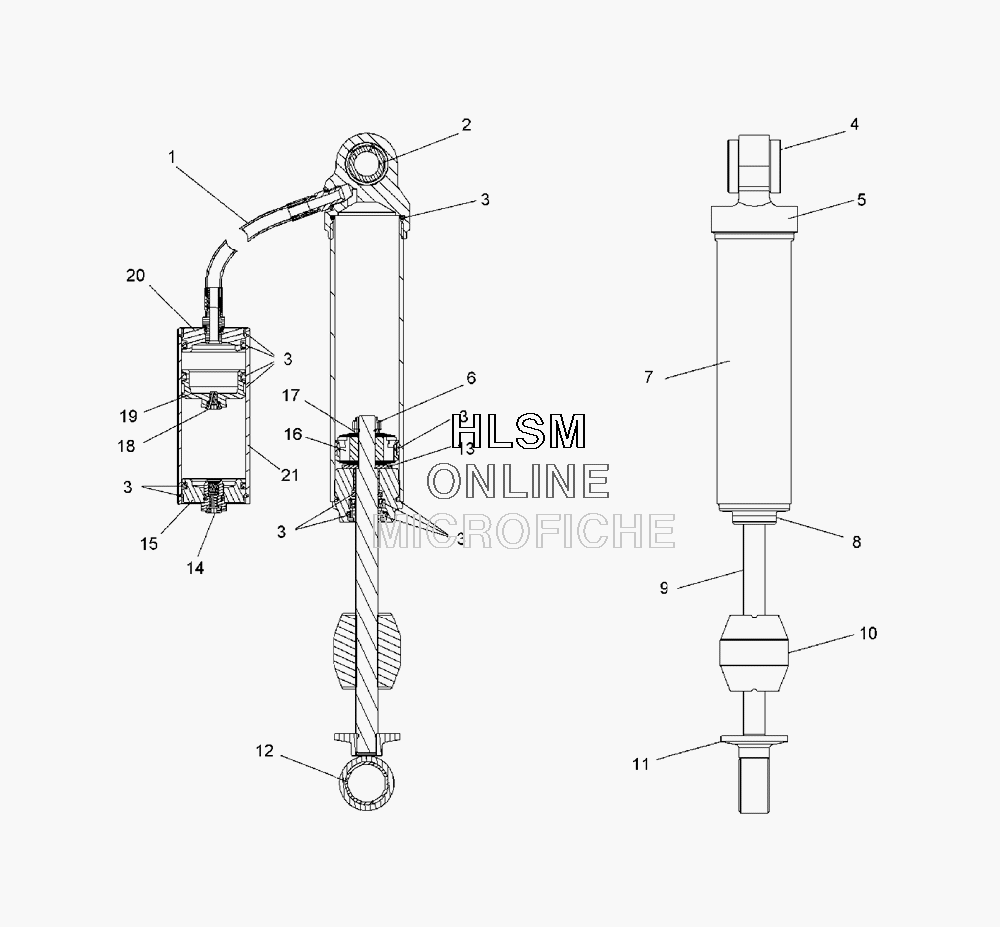

SUSPENSION - REAR SHOCK TRACK для Polaris FST IQ CRUSIER (S07PY7FS) - 2007 года выпуска`
-
№АртикулНазвание
-
11500786 HOSE,6.5'' (023-05-048)HOSE,6.5'' (023-05-048)
-
21500310 SLEEVE,.56X.81X1.2SLEEVE,.56X.81X1.2
-
31500703 KIT-REBUILD 803-00-118KIT-REBUILD 803-00-118
-
41500309 BUSHING,.35ILG,.595TLGBUSHING,.35ILG,.595TLG
-
51500787 BODY CAP (804-00-070)BODY CAP (804-00-070)
-
61500016 NUT,LOCKNUT,LOCK
-
71500561 BODYBODY
-
81500545 RETAINER RINGRETAINER RING
-
91500562 SHAFTSHAFT
-
101500567 BUMPER,B/OBUMPER,B/O
-
111500700 ASM.-EYELET 808-07-017ASM.-EYELET 808-07-017
-
121500444 BEARING-RBC 003-10-000BEARING-RBC 003-10-000
-
131500017 PLATE,TOP OUTPLATE,TOP OUT
-
141500014 VALVE ASM,AIRVALVE ASM,AIR
-
141500019 SCREWSCREW
-
151500114 VALVE BODYVALVE BODY
-
161500740 PISTON .055 BLEED 222-00-023PISTON .055 BLEED 222-00-023
-
171500015 PLATE,BACKUPPLATE,BACKUP
-
181500161 SCREW/O-RING ASM.SCREW/O-RING ASM.
-
191500601 ASM-IFPASM-IFP
-
201500788 RES. END CAP (226-00-043)RES. END CAP (226-00-043)
-
211500705 BODY-RES.,ALUM. 227-12-000BODY-RES.,ALUM. 227-12-000
