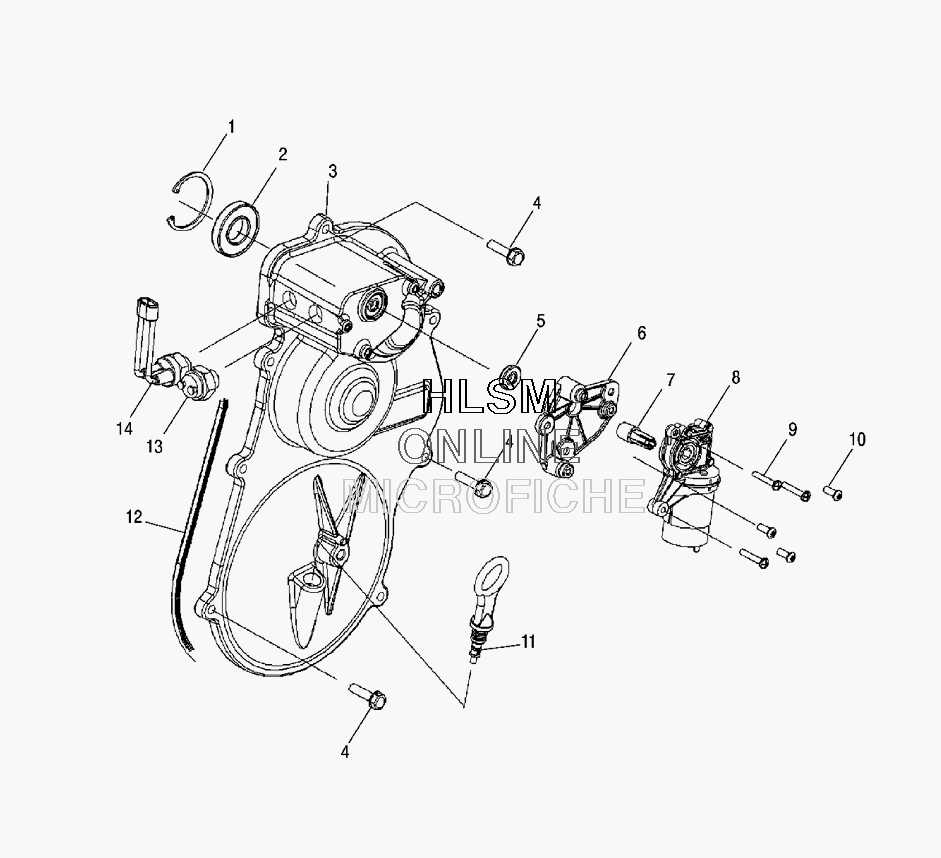

GEARCASE COVER для Polaris FST IQ CRUSIER (S07PY7FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7710560 RING-RTNG,INT,3000X-165
    RING-RTNG,INT,3000X-165
  • 2
    3514476 BEARING-BALL 20MM,16004
    BEARING-BALL 20MM,16004
  • 3
    1332317 ASM-COVER REVERSE [INCL. 1,2,5,12]
    ASM-COVER REVERSE [INCL. 1,2,5,12]
  • 4
    7512225 SCREW
    SCREW
  • 5
    3610109 SEAL-OIL .375X.725X.180
    SEAL-OIL .375X.725X.180
  • 6
    5436152 BRKT-REV ACT MNT NYLON 66
    BRKT-REV ACT MNT NYLON 66
  • 7
    5436807 COUPLER-REVERSE ACTUATOR
    COUPLER-REVERSE ACTUATOR
  • 8
    1332477 ASM-ACTUATOR (INCL. 6,7)
    ASM-ACTUATOR (INCL. 6,7)
  • 9
    7518046 SCR-#8X1 PN-PH H/L-Y
    SCR-#8X1 PN-PH H/L-Y
  • 10
    7512024 SCREW
    SCREW
  • 11
    1332250 ASM-DIPSTICK,W/MAGNET,EDGE
    ASM-DIPSTICK,W/MAGNET,EDGE
  • 12
    5412542 GASKET-8.424,CHAINCASE
    GASKET-8.424,CHAINCASE
  • 13
    4011005 POSITION-SWITCH INDICATOR
    POSITION-SWITCH INDICATOR
  • 14
    4011340 SWITCH-POSITION TYP21-670
    SWITCH-POSITION TYP21-670
