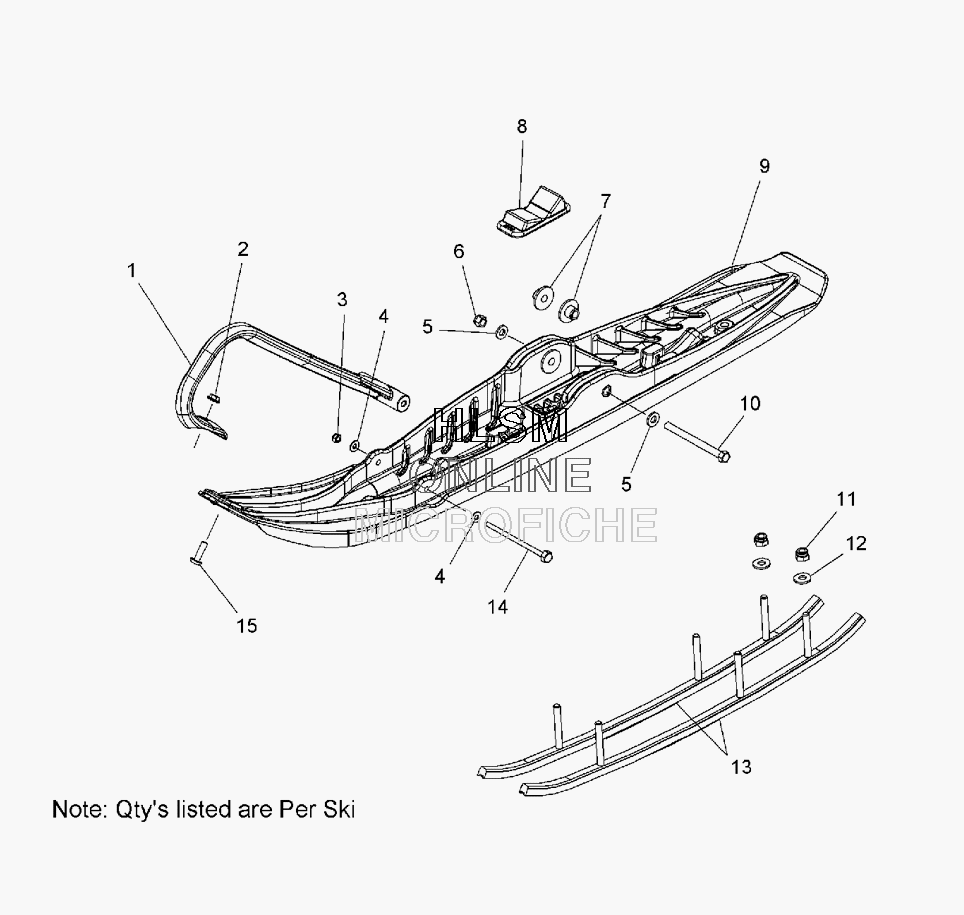

SKI ASSEMBLY для Polaris FST IQ CRUSIER (S07PY7FS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-070 TOE-PLASTIC SKI, BLACK
    TOE-PLASTIC SKI, BLACK
  • 2
    7542321 NUT,FLANGE
    NUT,FLANGE
  • 3
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 4
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 5
    7556130 WASHER-.406X1.25X.125
    WASHER-.406X1.25X.125
  • 6
    7547263 NUT-3/8-24 NYLOK
    NUT-3/8-24 NYLOK
  • 7
    5134797 BUSHING-PLSTC SKI,.390 ID,LONG
    BUSHING-PLSTC SKI,.390 ID,LONG
  • 8
    5413116 STOP-SKI RUBBER,CR
    STOP-SKI RUBBER,CR
  • 9
    1822808-070 ASM-SKI,PLSTC,IQ DUAL,SVC, BLACK [INCL. 7]
    ASM-SKI,PLSTC,IQ DUAL,SVC, BLACK [INCL. 7]
  • 10
    7518481 SCR-3/8-24X6.00-HXCP-GR8-Y
    SCR-3/8-24X6.00-HXCP-GR8-Y
  • 11
    7542324 NUT,NYLOK
    NUT,NYLOK
  • 12
    7555843 WASHER,WROUGHT
    WASHER,WROUGHT
  • 13
    2875676 KIT-SKAG, IQ DUAL 4'' 60 DEG [PAIR]
    KIT-SKAG, IQ DUAL 4'' 60 DEG [PAIR]
  • 14
    7518047 BOLT-1/4-20X4.75 HX/CP GRS
    BOLT-1/4-20X4.75 HX/CP GRS
  • 15
    7516317 SCREW-5/16-18X1.00,TORX,NYLON
    SCREW-5/16-18X1.00,TORX,NYLON
