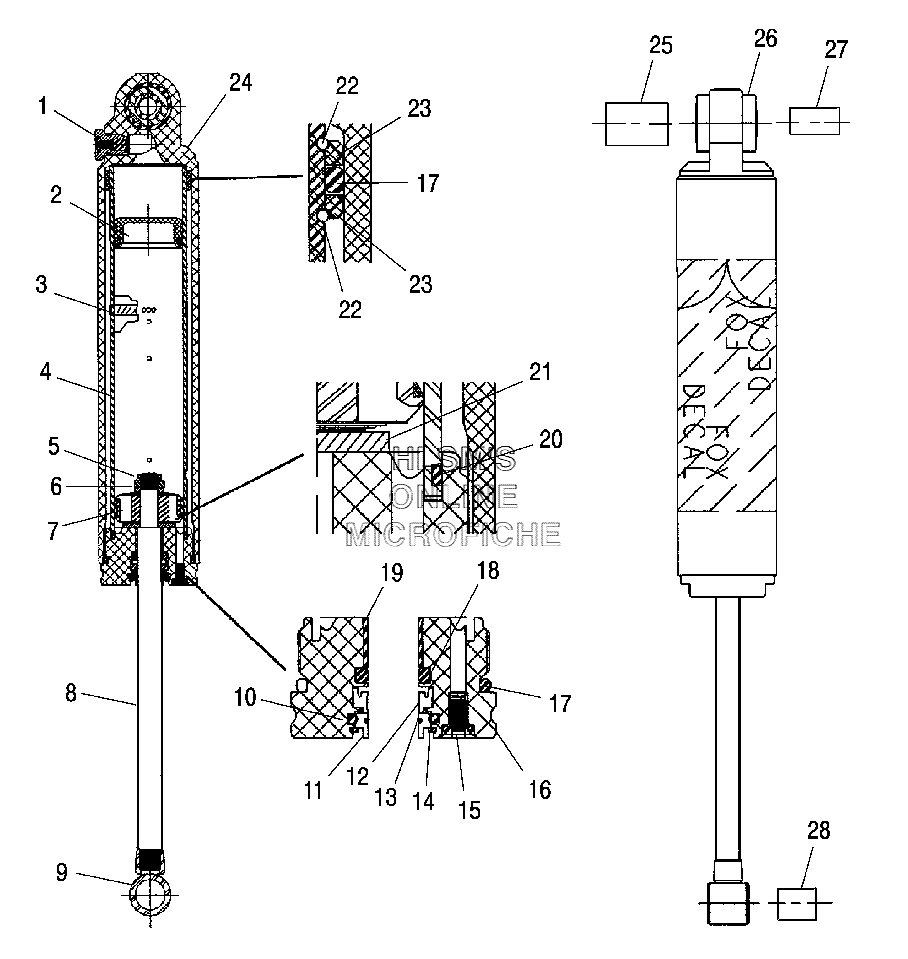

SUSPENSION - REAR SHOCK TRACK для Polaris 550 EDGE LX (S07ND5BS) - 2007 года выпуска
-
№АртикулНазвание
-
11500295 SCREWSCREW
-
11500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
21500481 FLOATING PISTON ASSYFLOATING PISTON ASSY
-
21500006 RING, PISTON, FLOATINGRING, PISTON, FLOATING
-
21500003 O-RING, ENDCAPO-RING, ENDCAP
-
31500306 VALVE, CHECKVALVE, CHECK
-
41500331 BODY ASSY, P.S. (INNER)BODY ASSY, P.S. (INNER)
-
51500016 NUT, LOCKNUT, LOCK
-
61500015 PLATE, BACKUPPLATE, BACKUP
-
71500489 PISTON (.063 BLEED)PISTON (.063 BLEED)
-
71500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
81500487 SHAFTSHAFT
-
91500302 EYELETEYELET
-
101500483 O-RINGO-RING
-
111500485 SCRAPER FIST (BRONZE)SCRAPER FIST (BRONZE)
-
121500266 U CUP 4300 URETHU CUP 4300 URETH
-
131500484 O-RING 14MM IDX1 MMO-RING 14MM IDX1 MM
-
141500486 RING SNAP, INTERNALRING SNAP, INTERNAL
-
151500295 SCREWSCREW
-
151500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
161500482 BEARING ASSY, FIST (INCL. 10 19)BEARING ASSY, FIST (INCL. 10 19)
-
171500228 O-RINGO-RING
-
181500127 O-RINGO-RING
-
191500488 BEARING (.5 IDX.5 TLG)BEARING (.5 IDX.5 TLG)
-
201500459 O-RINGO-RING
-
211500017 PLATE, TOP OUTPLATE, TOP OUT
-
221500097 RING RETAINING, WIRERING RETAINING, WIRE
-
231500336 COLLAR, ALUMINUMCOLLAR, ALUMINUM
-
241500480 BODY ASSY, PPS3 (INCL. 2)BODY ASSY, PPS3 (INCL. 2)
-
251500311 SLEEVE (.56X.81X1.28)SLEEVE (.56X.81X1.28)
-
261500307 BUSHING (.35ILG) (.63TLG)BUSHING (.35ILG) (.63TLG)
-
275333907 SLEEVE (.385X.560X1.30)SLEEVE (.385X.560X1.30)
-
285010422 BUSHINGBUSHING
-
-7043239 SHOCK, REARSHOCK, REAR
