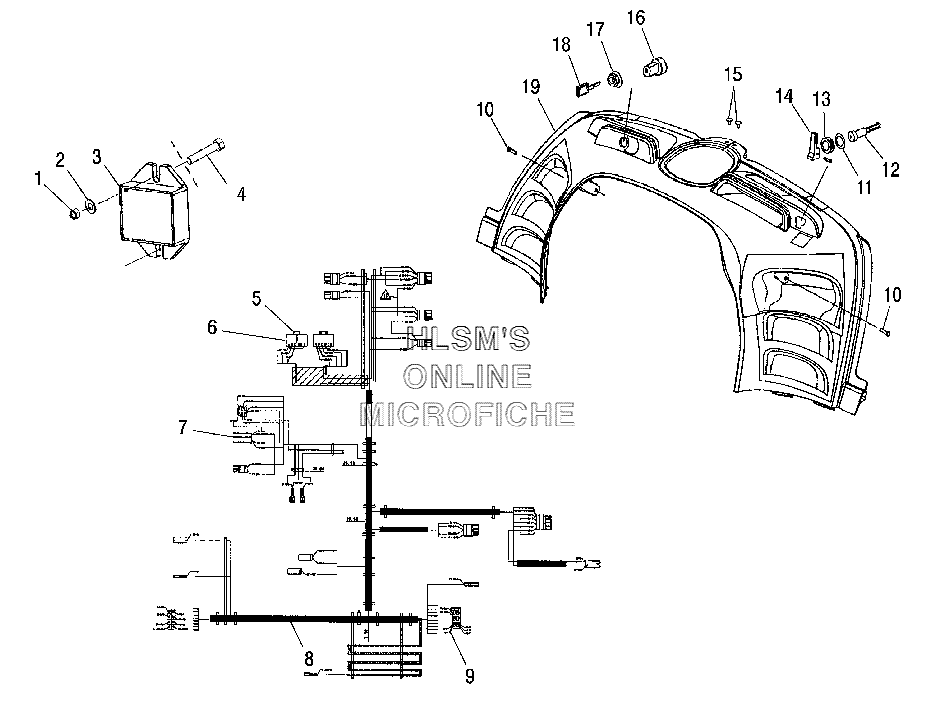

CONSOLE для Polaris 550 EDGE LX (S07ND5BS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555746 WASHER
    WASHER
  • 3
    4010794 REGULATOR AC/DC (14.3V)
    REGULATOR AC/DC (14.3V)
  • 4
    7517263 SCREW, HX/SEMS
    SCREW, HX/SEMS
  • 5
    4010193 HOUSING CONNECTOR (PACKARD #12186213)
    HOUSING CONNECTOR (PACKARD #12186213)
  • 6
    4010192 SOCKET (PACKARD #12047767)
    SOCKET (PACKARD #12047767)
  • 7
    4020063 HOUSING, PACK
    HOUSING, PACK
  • 8
    2461148 HARNESS MAIN
    HARNESS MAIN
  • 9
    4020057 HOUSING
    HOUSING
  • 10
    7515199 SCREW
    SCREW
  • 11
    7571610 WASHER LOCK
    WASHER LOCK
  • 12
    7080290 CABLE, CHOKE (INCL. 14)
    CABLE, CHOKE (INCL. 14)
  • 13
    7080229 NUT
    NUT
  • 14
    2200188 CHOKE CONTROL KIT (INCL. PIN, FLIPPER)
    CHOKE CONTROL KIT (INCL. PIN, FLIPPER)
  • 15
    7670088 CLIP, PLASTIC DART, NYLON
    CLIP, PLASTIC DART, NYLON
  • 16
    2200358 IGN.SWITCH KIT
    IGN.SWITCH KIT
  • 17
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 18
    5410611 N/A SEE NOTE:
    N/A SEE NOTE:
  • 19
    5434134 CONSOLE
    CONSOLE
