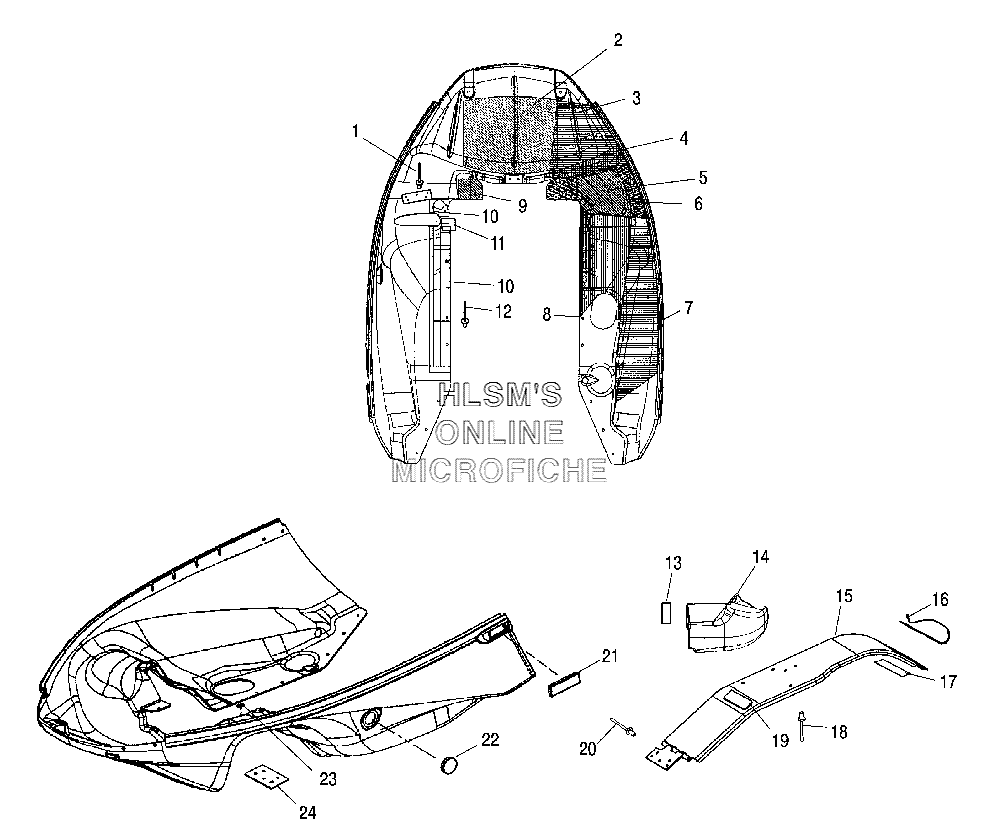

NOSEPAN W/FOIL ASSEMBLY для Polaris 550 EDGE LX (S07ND5BS) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7621462 RIVET
    RIVET
  • 2
    5811458 FOIL TAPE (12''X12'')
    FOIL TAPE (12''X12'')
  • 3
    5812040 FOIL (FRONT)
    FOIL (FRONT)
  • 4
    5812067 FOIL, TAPE
    FOIL, TAPE
  • 5
    5812039 FOIL
    FOIL
  • 6
    5812068 FOIL, TAPE
    FOIL, TAPE
  • 7
    5812018 FOIL, TAPE (UPPER/RIGHT)
    FOIL, TAPE (UPPER/RIGHT)
  • 8
    5812019 FOIL, TAPE (LOWER/RIGHT)
    FOIL, TAPE (LOWER/RIGHT)
  • 9
    5812020 FOIL, TAPE
    FOIL, TAPE
  • 10
    7080963 RETAINER ''J''CLP *
    RETAINER ''J''CLP *
  • 11
    5811948 FOIL (4.5X1.0)
    FOIL (4.5X1.0)
  • 12
    7621334 RIVET
    RIVET
  • 13
    5812353 FOAM
    FOAM
  • 14
    5434531 DUCT, ENGINE AIR OUTLET
    DUCT, ENGINE AIR OUTLET
  • 15
    1013069 GUARD ASSY, CLUTCH
    GUARD ASSY, CLUTCH
  • 16
    7080698 PIN, CLUTCH GUARD
    PIN, CLUTCH GUARD
  • 17
    5812352 PAD CLUTCH GUARD
    PAD CLUTCH GUARD
  • 18
    7621485 RIVET
    RIVET
  • 19
    7079297 DECAL-WARNING, ENGINE AND CLUTCH
    DECAL-WARNING, ENGINE AND CLUTCH
  • 20
    7621402 RIVET, POP
    RIVET, POP
  • 21
    2670134 REFLECTOR ASSY (AMBER)
    REFLECTOR ASSY (AMBER)
  • 22
    5433926 PLUG, OBLONG
    PLUG, OBLONG
  • 23
    7670131 PLUG NYLON (.322X.480) (MANUAL START)
    PLUG NYLON (.322X.480) (MANUAL START)
  • 24
    5211722 PLATE, BACKER
    PLATE, BACKER
