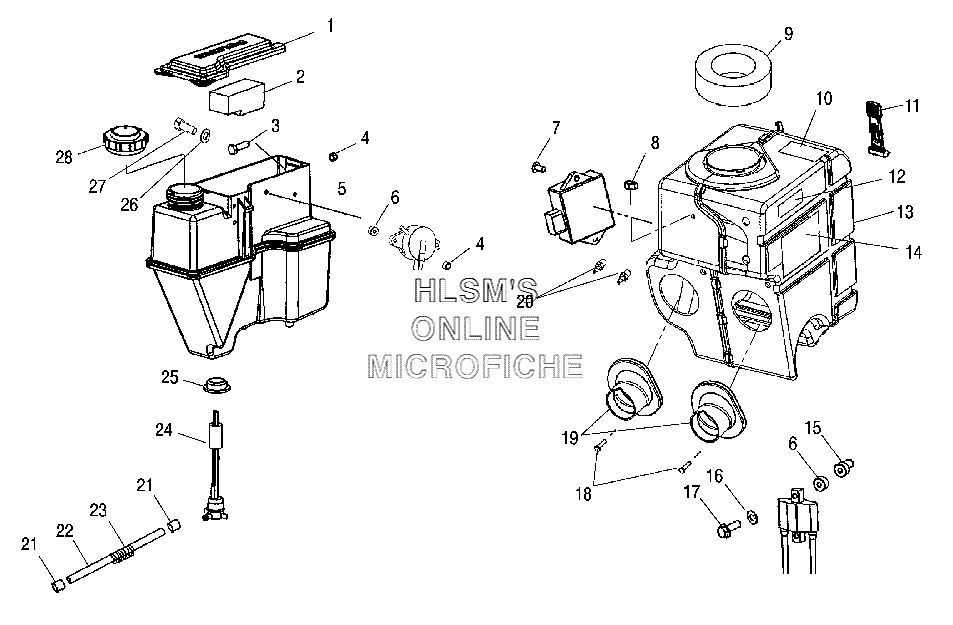

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 550 EDGE LX (S07ND5BS) - 2007 года выпуска
-
№АртикулНазвание
-
15434089 COVER TOOL BOXCOVER TOOL BOX
-
25812209 FOAMFOAM
-
37512297 SCREWSCREW
-
47542122 NUT NYLOKNUT NYLOK
-
51253453 WELD OIL BOTTLE/TOOL BOX WITH MOUNT (INCL. 1, 24)WELD OIL BOTTLE/TOOL BOX WITH MOUNT (INCL. 1, 24)
-
51261199 WELD OIL BOTTLE/TOOL BOX WITH MOUNTWELD OIL BOTTLE/TOOL BOX WITH MOUNT
-
67555932 WASHER, NYLONWASHER, NYLON
-
77512095 SCREWSCREW
-
87670102 CLIPCLIP
-
95811882 FOAMFOAM
-
107075351 DECAL, CAUTIONDECAL, CAUTION
-
115433150 STRAPSTRAP
-
127073426 DECAL, GREASINGDECAL, GREASING
-
131253499 AIR SILENCER ASSY, W/ERAIR SILENCER ASSY, W/ER
-
147171037 DECAL BELT REMOVAL, E/RDECAL BELT REMOVAL, E/R
-
157547103 NUT, WELLNUT, WELL
-
167552604 WASHERWASHER
-
177517610 SCREW (INCL. 19 AND DECALS)SCREW (INCL. 19 AND DECALS)
-
187511862 SCREWSCREW
-
195412189 BOOT CARBURETORBOOT CARBURETOR
-
207052127 FITTING, HOSEFITTING, HOSE
-
217080307 CLAMP, HOSECLAMP, HOSE
-
228450003-1525 LINE, FUEL (1/4 ID 1525 CM.)LINE, FUEL (1/4 ID 1525 CM.)
-
234010051-30 CONDUIT, CONVOLUTED (30 CM)CONDUIT, CONVOLUTED (30 CM)
-
244010660 SENDER OIL WITH FRONT TERMINALSSENDER OIL WITH FRONT TERMINALS
-
257052305 GROMMET OIL SENDERGROMMET OIL SENDER
-
267555859 WASHER, FLATWASHER, FLAT
-
277512163 BOLTBOLT
-
281240094 CAP OIL, VENTED/CUSTOM COLORCAP OIL, VENTED/CUSTOM COLOR
