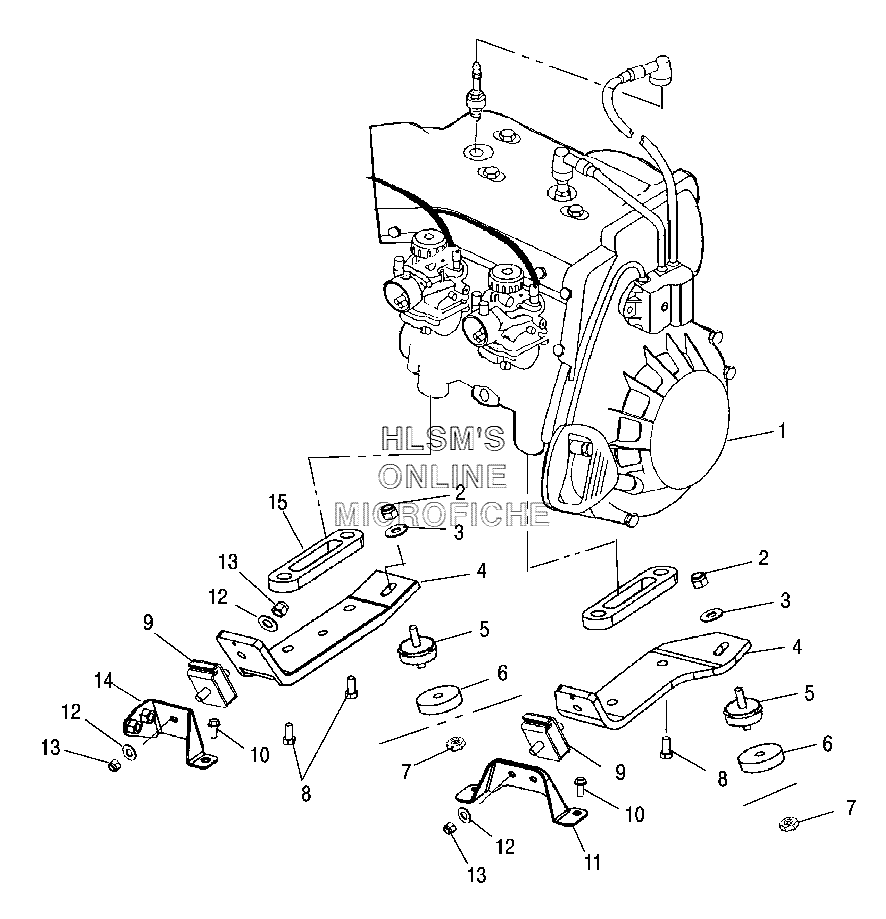

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 550 EDGE LX (S07ND5BS) - 2007 года выпуска`
-
№АртикулНазвание
-
13089517 ENGINE SHORT BLOCK (SEE NOTE)ENGINE SHORT BLOCK (SEE NOTE)
-
27542451 NUT, NYLOKNUT, NYLOK
-
37555893 WASHER, FLATWASHER, FLAT
-
45245466 STRAP ENGINE MOUNT (LEFT)STRAP ENGINE MOUNT (LEFT)
-
45246193 STRAP ENGINE MOUNT (RIGHT)STRAP ENGINE MOUNT (RIGHT)
-
53021220 MOUNT ENGINE (3/8-16)MOUNT ENGINE (3/8-16)
-
65245117 SPACER ENGINE MOUNT (.44)SPACER ENGINE MOUNT (.44)
-
77547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
87517399 SCREWSCREW
-
93021206 MOUNT ENGINE, RECT (3/8-16)MOUNT ENGINE, RECT (3/8-16)
-
107517854 SCREWSCREW
-
115245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)BRACKET ENGINE MOUNT, FORMED (RIGHT)
-
127555806 WASHER, FLATWASHER, FLAT
-
137547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
141013397 WELD ENGINE MOUNT BRKT (LEFT)WELD ENGINE MOUNT BRKT (LEFT)
-
155245020 SPACER ENGINE (.38)SPACER ENGINE (.38)
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASIS W/ FOOTREST
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- • ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN W/FOIL ASSEMBLY
- OIL PUMP
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL MOUNTING
- SEAT W/ TAILLIGHT
- SHIFT LINKAGE
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING POST - HOOP
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
