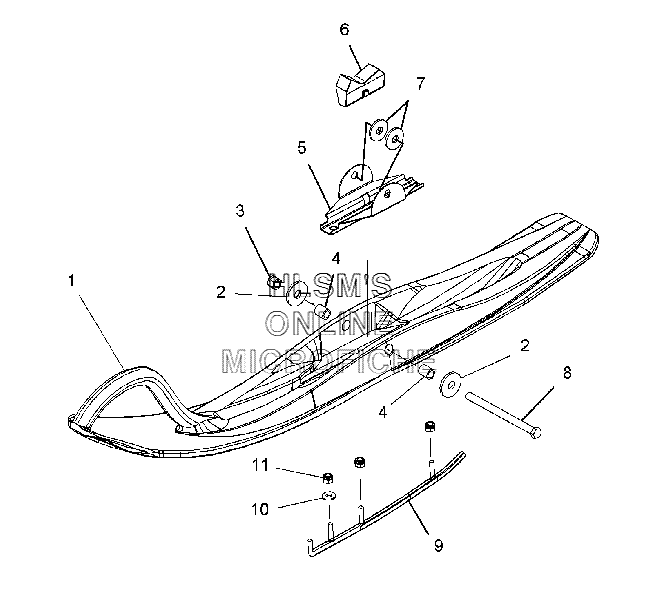

SKI ASSEMBLY для Polaris 550 EDGE LX (S07ND5BS) - 2007 года выпуска
-
№АртикулНазвание
-
15436776 SKISKI
-
27556130 WASHERWASHER
-
37547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
-
45135649 BUSHINGBUSHING
-
55250412 BRACKETBRACKET
-
65413111 BUSHINGBUSHING
-
77555983 WASHER, FLATWASHER, FLAT
-
87518663 BOLTBOLT
-
92876056 CARBIDE SKAG COMPOSIE 3'' (PAIR)CARBIDE SKAG COMPOSIE 3'' (PAIR)
-
107558403 WASHER, WROUGHTWASHER, WROUGHT
-
117547180 NUT FLANGED, NYLONNUT FLANGED, NYLON
