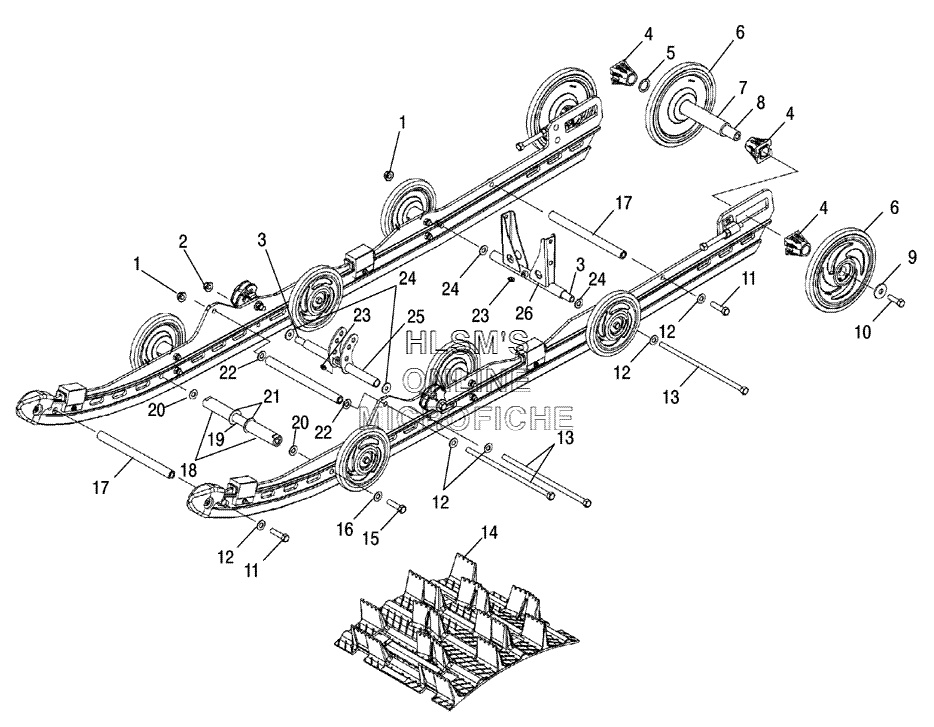

SUSPENSION W/ TRACK для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска
-
№АртикулНазвание
-
17547263 NUT NYLOKNUT NYLOK
-
27547217 NUT NYLOKNUT NYLOK
-
35334162 TUBE NITRIDE (.397X.562X8.515)TUBE NITRIDE (.397X.562X8.515)
-
45432535 SPACER, IDLERSPACER, IDLER
-
57555918 BUSHINGBUSHING
-
61590388-293 WHEEL, SCROLL ASSY (7.25) (RED)WHEEL, SCROLL ASSY (7.25) (RED)
-
67710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
63514384 BEARING NTN (.7874X1.6535X.4724) (1 PER WHEEL)BEARING NTN (.7874X1.6535X.4724) (1 PER WHEEL)
-
75333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
85020744 SHAFT, IDLERSHAFT, IDLER
-
97556130 WASHERWASHER
-
107517731 BOLTBOLT
-
117518005 SCREWSCREW
-
127555806 WASHER, FLATWASHER, FLAT
-
137517921 SCREWSCREW
-
142874057 TRACK (144'' X 1.25)TRACK (144'' X 1.25)
-
157517857 SCREWSCREW
-
167556042 WAHER, FLATWAHER, FLAT
-
175134078 SHAFT C'BORE (.688X8.665, 2045)SHAFT C'BORE (.688X8.665, 2045)
-
185334062 SPACER SHOCK CENTERINGSPACER SHOCK CENTERING
-
195133188 SHAFT (.687X8.456)SHAFT (.687X8.456)
-
207555832 WASHERWASHER
-
217556210 WASHERWASHER
-
227555893 WASHER, FLATWASHER, FLAT
-
237080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
247556242 WASHERWASHER
-
251542122-067 SHOCK PIVOT ARM (2.375) (BLACK)SHOCK PIVOT ARM (2.375) (BLACK)
-
261541832-067 WELD PIVOT ARM (REAR/BLACK)WELD PIVOT ARM (REAR/BLACK)
