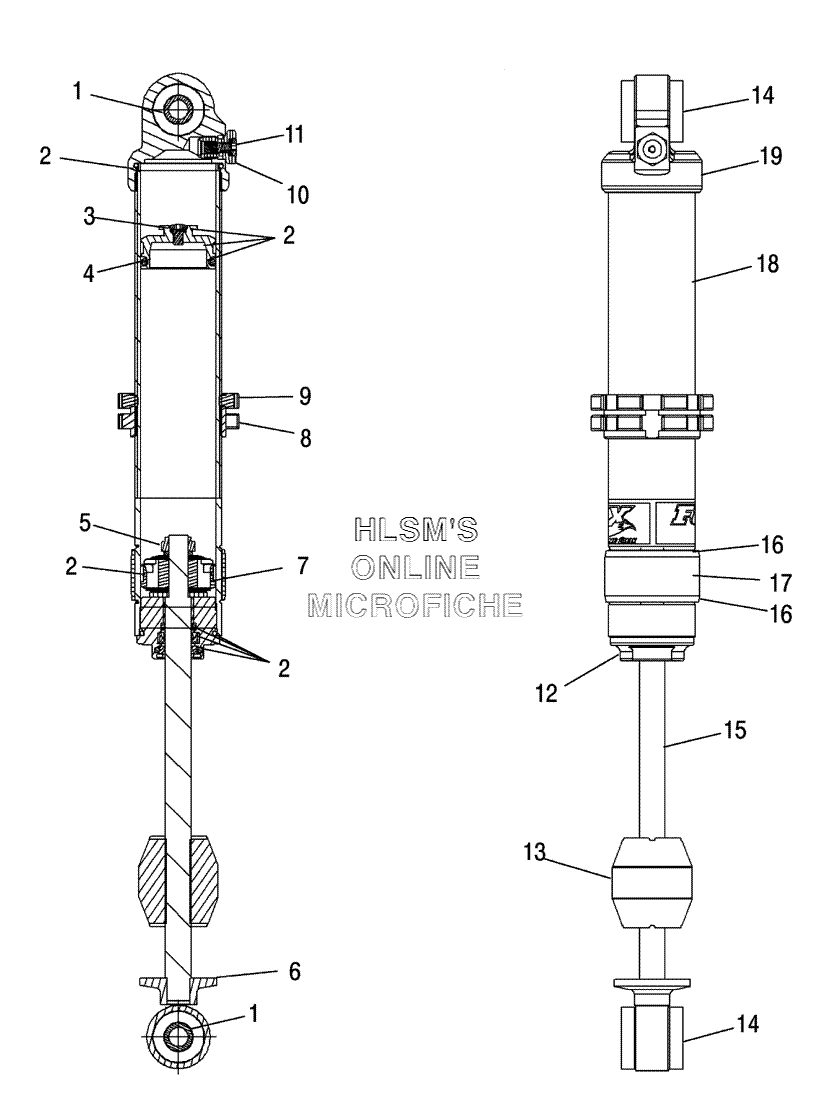

SUSPENSION - IFS SHOCK для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска
-
№АртикулНазвание
-
11500138 SLEEVE, STEELSLEEVE, STEEL
-
21500710 REBUILD KITREBUILD KIT
-
31500161 SCREW WITHOUT RING ASSYSCREW WITHOUT RING ASSY
-
41500601 IFP ASSYIFP ASSY
-
51500016 NUT, LOCKNUT, LOCK
-
61500164 EYELET, BASEEYELET, BASE
-
71500010 O-RINGO-RING
-
81500707 RING, SPRING PRELOADRING, SPRING PRELOAD
-
91500708 RING, SPRING PRELOADRING, SPRING PRELOAD
-
101500014 VALVE, AIR ASSYVALVE, AIR ASSY
-
111500019 SCREWSCREW
-
121500545 CAPCAP
-
131500567 BUMPER, B/OBUMPER, B/O
-
141500137 BUSHING, EYELETBUSHING, EYELET
-
151500768 SHAFT (9.05 TLG)SHAFT (9.05 TLG)
-
161500607 WIRE RINGWIRE RING
-
171500585 GUIDE SPRINGGUIDE SPRING
-
181500711 BODYBODY
-
191500602 BODY CAP ASSYBODY CAP ASSY
