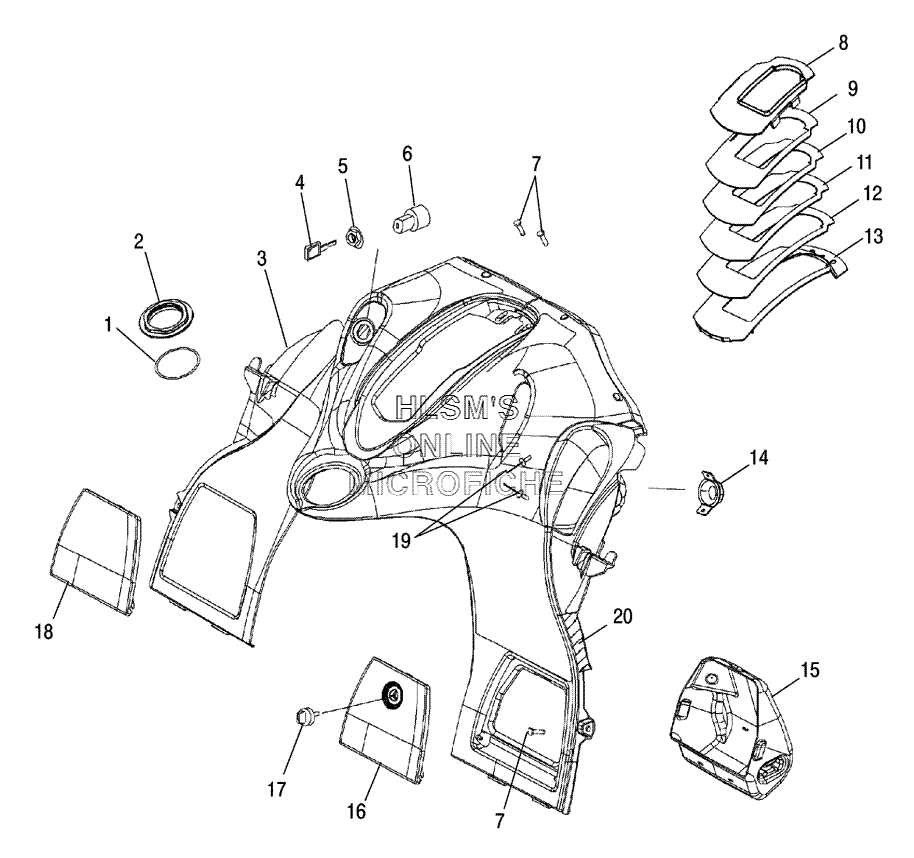

CONSOLE для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5411174 O-RING
    O-RING
  • 2
    5435156 NUT FILLER NECK
    NUT FILLER NECK
  • 3
    2632978-070 CONSOLE ASSY (BLACK) (INCL. WARNING DECALS)
    CONSOLE ASSY (BLACK) (INCL. WARNING DECALS)
  • 4
    5410611 KEY (SEE NOTE)
    KEY (SEE NOTE)
  • 5
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 6
    2200358 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 7
    7517916 SCREW
    SCREW
  • 8
    5436222 COVER ADJUSTABLE STEERING (TOP)
    COVER ADJUSTABLE STEERING (TOP)
  • 9
    5436223 PLATE ADJUSTABLE STEERING, 1
    PLATE ADJUSTABLE STEERING, 1
  • 10
    5436224 PLATE ADJUSTABLE STEERING, 2
    PLATE ADJUSTABLE STEERING, 2
  • 11
    5436225 PLATE ADJUSTABLE STEERING, 3
    PLATE ADJUSTABLE STEERING, 3
  • 12
    5436226 PLATE ADJUSTABLE STEERING, 4
    PLATE ADJUSTABLE STEERING, 4
  • 13
    5436227 COVER ADJUSTABLE STEERING (BOTTOM)
    COVER ADJUSTABLE STEERING (BOTTOM)
  • 14
    5248563 BRACKET ROPE GUIDE
    BRACKET ROPE GUIDE
  • 15
    5435944 COMPARTMENT STORAGE (RIGHT)
    COMPARTMENT STORAGE (RIGHT)
  • 16
    2632858-070 DOOR ASSY, CONSOLE (RIGHT/BLACK)
    DOOR ASSY, CONSOLE (RIGHT/BLACK)
  • 17
    5435207-070 KEY (BLACK)
    KEY (BLACK)
  • 18
    5435416-070 DOOR CONSOLE (LEFT/BLACK)
    DOOR CONSOLE (LEFT/BLACK)
  • 19
    7621323 POP RIVET
    POP RIVET
  • 20
    5812833 FOIL
    FOIL
