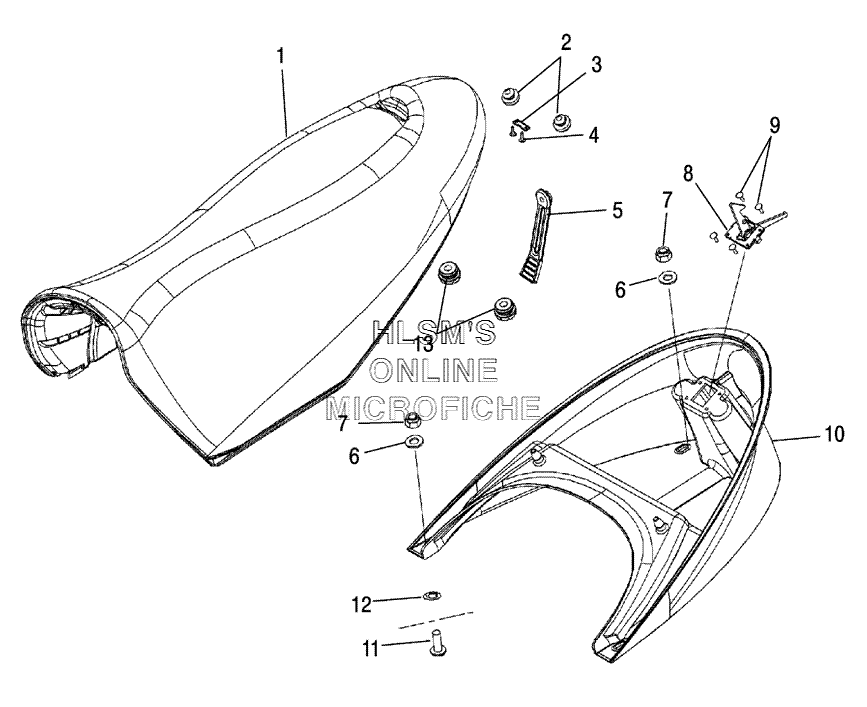

SEAT W/ TAILLIGHT для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2683756 SEAT, SWITCHBACK ASSY (BLUE/BLACK)
    SEAT, SWITCHBACK ASSY (BLUE/BLACK)
  • 1
    2683757 SEAT COVER, SWITCHBACK ASSY (BLUE/BLACK)
    SEAT COVER, SWITCHBACK ASSY (BLUE/BLACK)
  • 1
    2683758 SEAT, SWITCHBACK ASSY (RED/BLACK/BLUE)
    SEAT, SWITCHBACK ASSY (RED/BLACK/BLUE)
  • 1
    2683759 SEAT COVER, SWBAK ASSY (RED/BLACK/BLUE)
    SEAT COVER, SWBAK ASSY (RED/BLACK/BLUE)
  • 2
    5412067 BUMPER RUBBER
    BUMPER RUBBER
  • 3
    5247617 PLATE STRIKER
    PLATE STRIKER
  • 4
    7661184 RIVET
    RIVET
  • 5
    5431501 STRAP
    STRAP
  • 6
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 7
    7542122 NUT NYLOK
    NUT NYLOK
  • 8
    1014876 SEAT LATCH ASSY
    SEAT LATCH ASSY
  • 9
    7661184 RIVET
    RIVET
  • 10
    2632845-070 SEAT WEDGE ASSY (BLACK)
    SEAT WEDGE ASSY (BLACK)
  • 11
    7515203 BOLT
    BOLT
  • 12
    7670154 RETAINER BOLT (1/4 20)
    RETAINER BOLT (1/4 20)
  • 13
    5412507 GROMMET
    GROMMET
