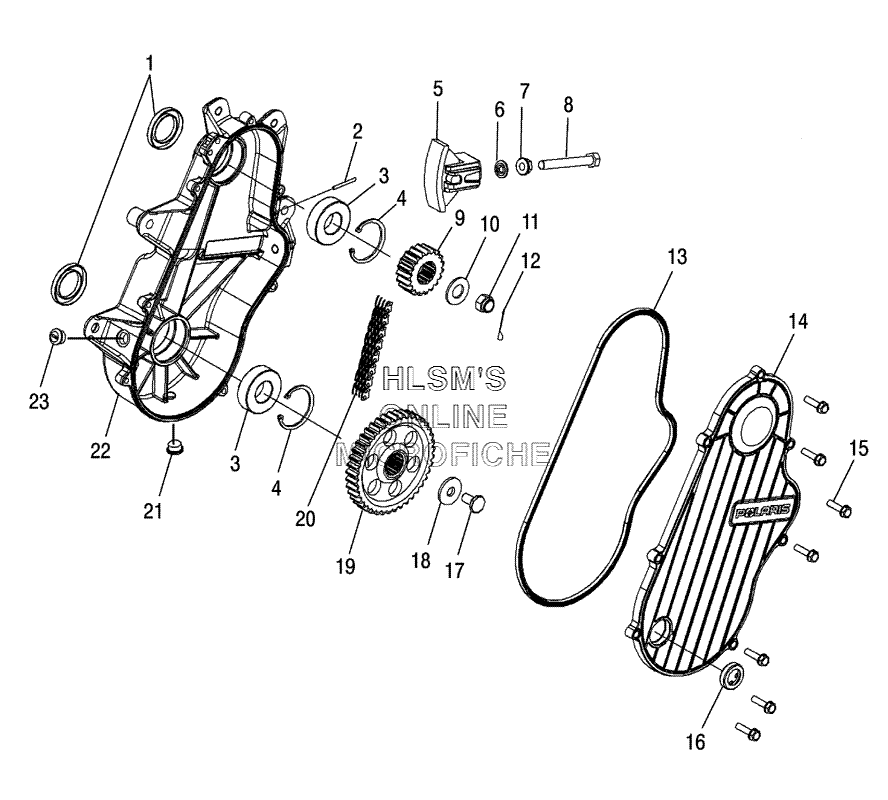

CHAINCASE ASSEMBLY для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    7661867 PIN ROLL (125''X1.25'')
    PIN ROLL (125''X1.25'')
  • 3
    3514309 BEARING, BALL (#6205)
    BEARING, BALL (#6205)
  • 4
    7718406 RING, RETAINING
    RING, RETAINING
  • 5
    1332427 TIGHTENER, CHAIN ASSY
    TIGHTENER, CHAIN ASSY
  • 6
    7556340 WASHER THREAD SEAL (3/8 16 UNC)
    WASHER THREAD SEAL (3/8 16 UNC)
  • 7
    7547304 NUT HEXAGON
    NUT HEXAGON
  • 8
    7515511 SCREW
    SCREW
  • 9
    3221102 SPROCKET HYVO (25 TEETH) (3/4W) (15 SPLINE)
    SPROCKET HYVO (25 TEETH) (3/4W) (15 SPLINE)
  • 10
    7571620 WASHER, SPRING
    WASHER, SPRING
  • 11
    7547202 NUT THIN, NYLON INSERT
    NUT THIN, NYLON INSERT
  • 12
    7661203 PIN, COTTER
    PIN, COTTER
  • 13
    5812755 GASKET CHAINCASE COVER (8.373)
    GASKET CHAINCASE COVER (8.373)
  • 14
    1332354 COVER WITH SIGHT GLASS ASSY (8.373) (INCL. 16)
    COVER WITH SIGHT GLASS ASSY (8.373) (INCL. 16)
  • 15
    7512225 SCREW
    SCREW
  • 16
    3610126 OIL CHECK SIGHT GLASS
    OIL CHECK SIGHT GLASS
  • 17
    7518358 SCREW
    SCREW
  • 18
    7556130 WASHER
    WASHER
  • 19
    3222099 SPROCKET HYVO (40/15 TEETH/SPLINE)
    SPROCKET HYVO (40/15 TEETH/SPLINE)
  • 20
    3222110 CHAIN HYVO (78P) (3/4W)
    CHAIN HYVO (78P) (3/4W)
  • 21
    7052394 PLUG MAGNETIC
    PLUG MAGNETIC
  • 22
    5134817 CHAINCASE (8.373 CD)
    CHAINCASE (8.373 CD)
  • 23
    7052382 PLUG, MAGNETIZED
    PLUG, MAGNETIZED
