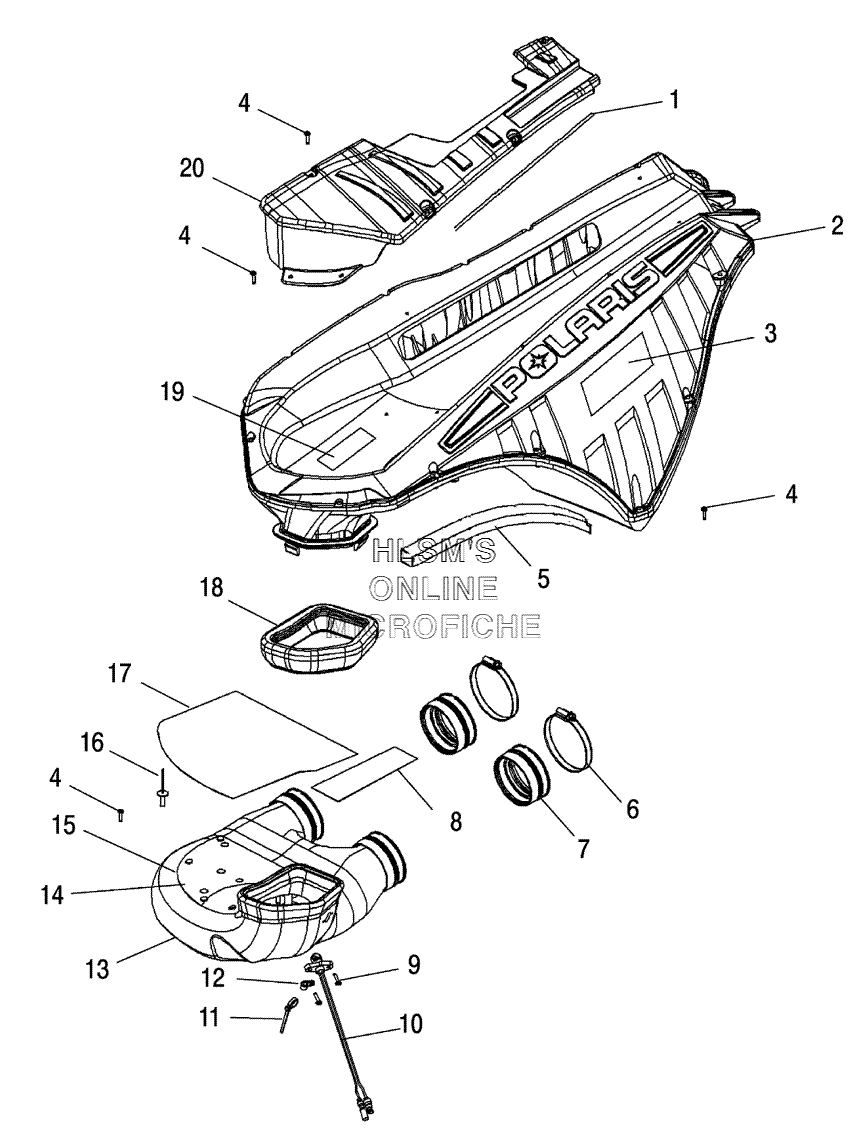

AIR INTAKE SYSTEM для Polaris 900 Switchback (S06PS8DS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5812963 FOAM SEAL (30.5'')
    FOAM SEAL (30.5'')
  • 2
    1253513 AIR SILENCER ASSY
    AIR SILENCER ASSY
  • 2
    5434926 AIR SILENCER ASSY
    AIR SILENCER ASSY
  • 2
    5435060 AIR SILENCER ASSY
    AIR SILENCER ASSY
  • 2
    5812618 FOIL PLENUM (LOWER)
    FOIL PLENUM (LOWER)
  • 2
    5812639 PLATE BAFFLE, SIDE
    PLATE BAFFLE, SIDE
  • 2
    5812647 FOAM PLENUM, INTERNAL (.5X2)
    FOAM PLENUM, INTERNAL (.5X2)
  • 2
    5812648 FOAM PLENUM, INTERNAL (1'' X7.5'')
    FOAM PLENUM, INTERNAL (1'' X7.5'')
  • 2
    5812649 FOAM PLENUM, INTERNAL (1'' X9'')
    FOAM PLENUM, INTERNAL (1'' X9'')
  • 2
    5812650 FOAM PLENUM, INTERNAL (1'' X13.5'')
    FOAM PLENUM, INTERNAL (1'' X13.5'')
  • 3
    7173899 DECAL BELT REMOVAL/CLUTCH
    DECAL BELT REMOVAL/CLUTCH
  • 4
    7512026 SCREW
    SCREW
  • 5
    5812706 FOAM SNOW SEAL, PLENUM (1.5X19)
    FOAM SNOW SEAL, PLENUM (1.5X19)
  • 6
    7080909 CLAMP, NARROW BAND(1.77/2.75)
    CLAMP, NARROW BAND(1.77/2.75)
  • 7
    5412359 BOOT
    BOOT
  • 8
    5812622 FOIL
    FOIL
  • 9
    7511881 SCREW
    SCREW
  • 10
    4011113 SENSOR AIR TEMP
    SENSOR AIR TEMP
  • 11
    7080138 CABLE TIE
    CABLE TIE
  • 12
    7080539 CLAMP, NYLON, CABLE
    CLAMP, NYLON, CABLE
  • 13
    1203147 BOOST BOX ASSY(INCL. 7, 8, 15, 17)
    BOOST BOX ASSY(INCL. 7, 8, 15, 17)
  • 14
    5812620 FOIL
    FOIL
  • 15
    5248258 PLATE REINFORCEMENT
    PLATE REINFORCEMENT
  • 16
    7621457 RIVET
    RIVET
  • 17
    5812620 FOIL
    FOIL
  • 18
    5412761 BOOT BOOST BOX RUBBER
    BOOT BOOST BOX RUBBER
  • 19
    7172672 DECAL ENGINE AND CLUTCH
    DECAL ENGINE AND CLUTCH
  • 20
    5435774 COVER PLENUM
    COVER PLENUM
