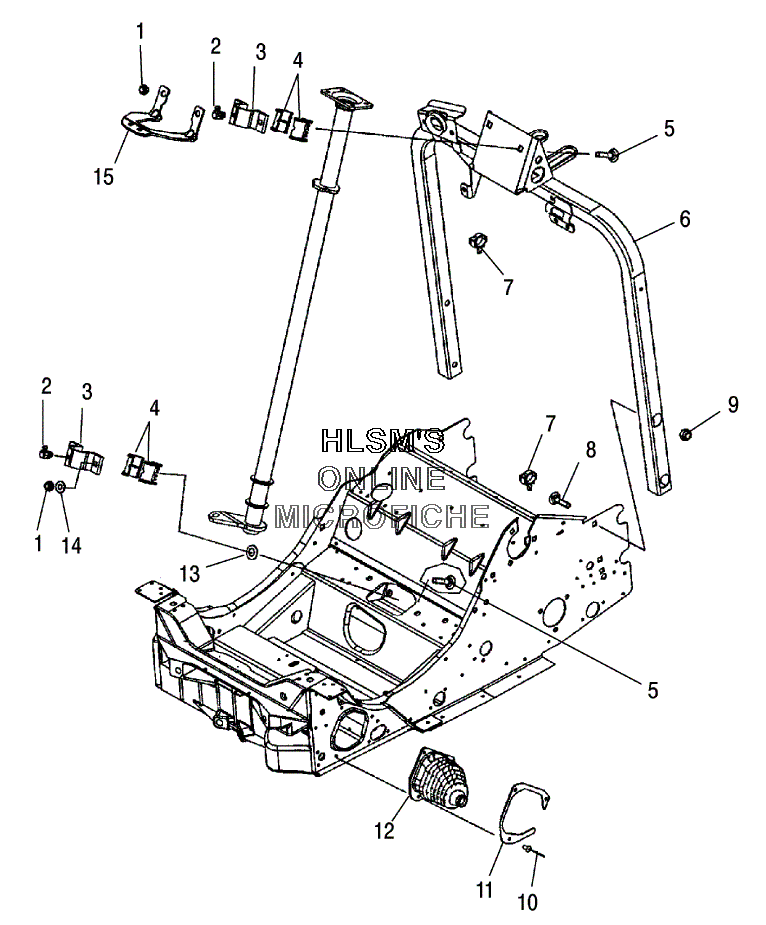

STEERING POST ASSEMBLY для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска`
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27080510 FITTING, ZERK 90 DEGREEFITTING, ZERK 90 DEGREE
-
35133648 BRACKET STEERING POST MODLEBRACKET STEERING POST MODLE
-
45432785 BUSHINGBUSHING
-
57517579 BOLT CARRIAGEBOLT CARRIAGE
-
61013776-067 WELD STEERING HOOP (BLACK) (EDGE)WELD STEERING HOOP (BLACK) (EDGE)
-
61013804-067 WELD HOOP, STEERING (BLACK)WELD HOOP, STEERING (BLACK)
-
74020139 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
87512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
97542343 NUT, FLANGENUT, FLANGE
-
107621433 RIVETRIVET
-
115244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
125433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
125433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
137547030 PALNUTPALNUT
-
147558402 WASHER, FLATWASHER, FLAT
-
155245354 BRACKET CONSOLE, NECK STUD (FRONT)BRACKET CONSOLE, NECK STUD (FRONT)
