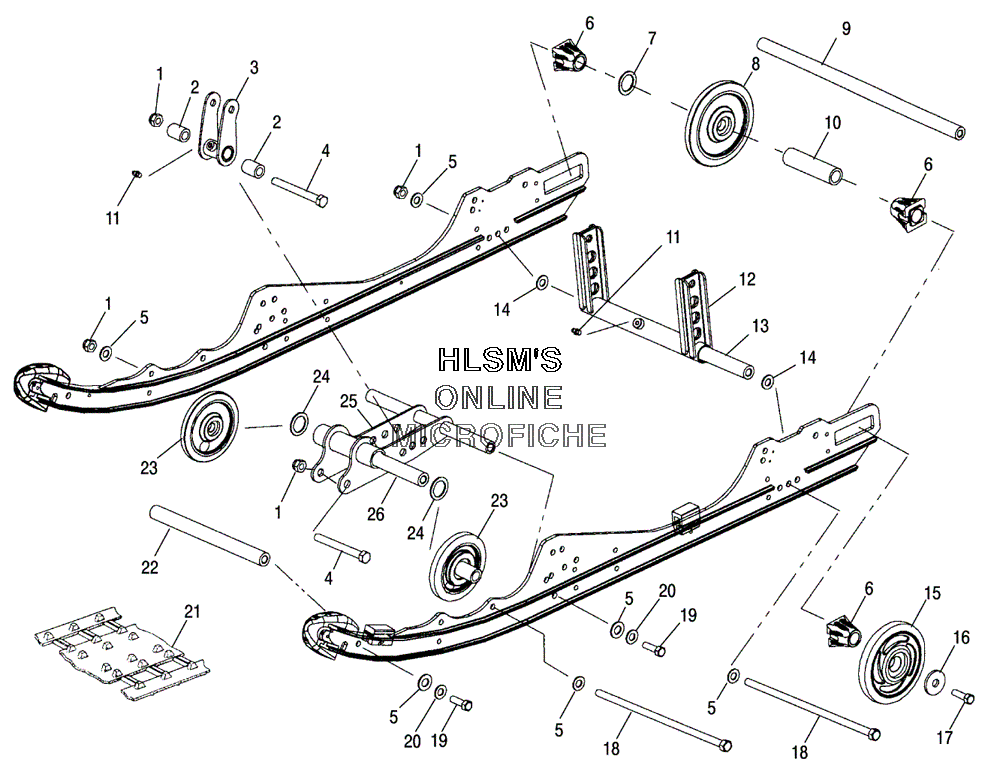

SUSPENSION - REAR (EDGE) для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 2
    5133233 BUSHING
    BUSHING
  • 3
    1541477-067 SHOCK PIVOT ARM (BLACK)
    SHOCK PIVOT ARM (BLACK)
  • 4
    7515417 SCREW
    SCREW
  • 5
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 6
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 7
    7555918 BUSHING
    BUSHING
  • 8
    1594087 WHEEL, PLAIN ASSY (6.38 O.D.)
    WHEEL, PLAIN ASSY (6.38 O.D.)
  • 9
    5020744 SHAFT, IDLER
    SHAFT, IDLER
  • 10
    5333285 SPACER, IDLER LONG
    SPACER, IDLER LONG
  • 11
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 12
    1541707-067 WELD ARM, PIVOT (REAR/BLACK)
    WELD ARM, PIVOT (REAR/BLACK)
  • 13
    5333404 SHAFT
    SHAFT
  • 14
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 15
    1590303-244 WHEEL IDLER, HP ASSY (BRIGHT METALLIC SILVER)
    WHEEL IDLER, HP ASSY (BRIGHT METALLIC SILVER)
  • 15
    7710444 RING, RETAINING
    RING, RETAINING
  • 15
    3514384 BEARING
    BEARING
  • 16
    7556130 WASHER
    WASHER
  • 17
    7517731 BOLT
    BOLT
  • 18
    7517921 SCREW, HEXAGON/LP
    SCREW, HEXAGON/LP
  • 19
    7517247 SCREW
    SCREW
  • 20
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 21
    5411057 TRACK, 121"X.82 MODULE LIGHTNING
    TRACK, 121"X.82 MODULE LIGHTNING
  • 21
    5222840 CLIP, GUIDE
    CLIP, GUIDE
  • 22
    5020723 SHAFT, PIVOT ARM
    SHAFT, PIVOT ARM
  • 23
    1541485 WHEEL, W/ HOLE ASSY (5.35, .984 ID)
    WHEEL, W/ HOLE ASSY (5.35, .984 ID)
  • 24
    7556301 BUSHING
    BUSHING
  • 25
    1541711-067 WELD MOUNT, SHOCK (BLACK)
    WELD MOUNT, SHOCK (BLACK)
  • 26
    5132490 SHAFT
    SHAFT
