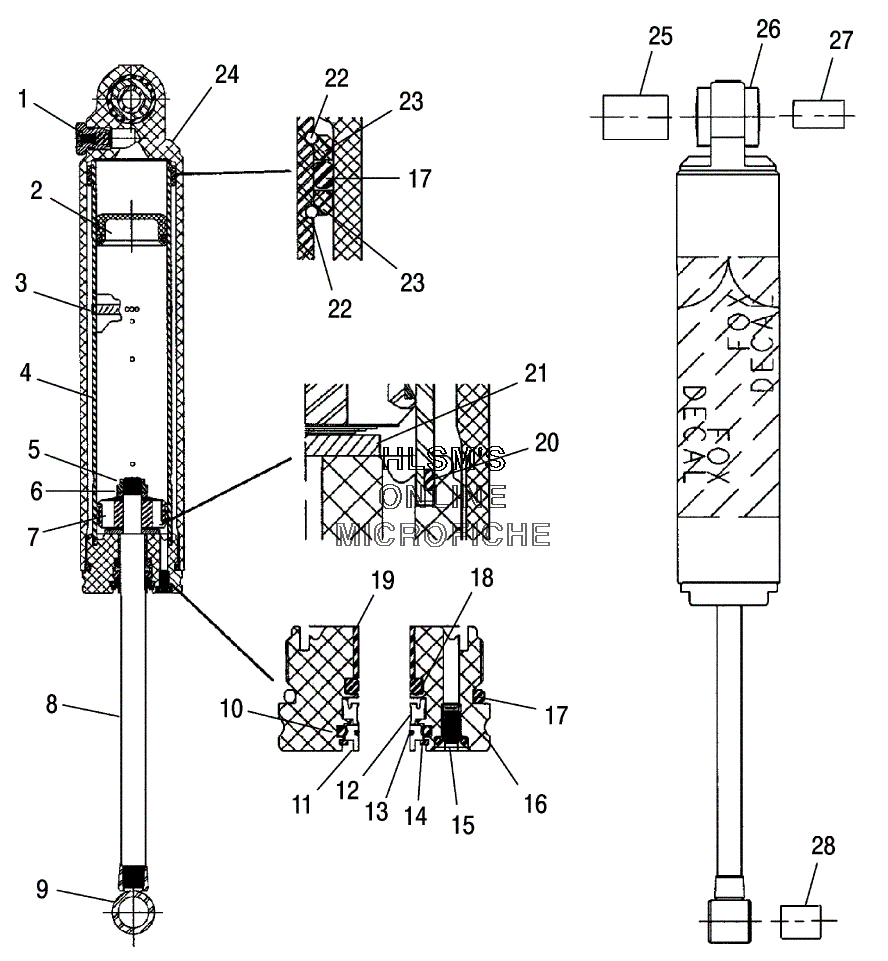

SUSPENSION - REAR TRACK (EDGE) для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1500295 SCREW
    SCREW
  • 1
    1500022 O-RING, DRUM (OUTER)
    O-RING, DRUM (OUTER)
  • 2
    1500481 FLOATING PISTON ASSY
    FLOATING PISTON ASSY
  • 2
    1500006 BEARING, EXTERNAL
    BEARING, EXTERNAL
  • 2
    1500003 O-RING, END CAP
    O-RING, END CAP
  • 3
    1500306 VALVE, CHECK NBR DURO A 90
    VALVE, CHECK NBR DURO A 90
  • 4
    1500331 BODY, P.S. ASSY (INNER)
    BODY, P.S. ASSY (INNER)
  • 5
    1500016 NUT, LOCK
    NUT, LOCK
  • 6
    1500015 PLATE, BACKUP
    PLATE, BACKUP
  • 7
    1500489 PISTON .063 BLEED
    PISTON .063 BLEED
  • 7
    1500002 BEARING, PISTON
    BEARING, PISTON
  • 8
    1500487 SHAFT
    SHAFT
  • 9
    1500302 EYELET
    EYELET
  • 10
    1500483 O-RING (.103X.73ID)
    O-RING (.103X.73ID)
  • 11
    1500485 SCRAPER-FIST (BRONZE)
    SCRAPER-FIST (BRONZE)
  • 12
    1500266 U-CUP-4300 URETH
    U-CUP-4300 URETH
  • 13
    1500484 O-RING (14MM IDX1 MM)
    O-RING (14MM IDX1 MM)
  • 14
    1500486 RING SNAP, INTERNAL
    RING SNAP, INTERNAL
  • 15
    1500295 SCREW
    SCREW
  • 15
    1500022 O-RING, DRUM (OUTER)
    O-RING, DRUM (OUTER)
  • 16
    1500482 BEARING, FIST ASSY (INCL. 10-19)
    BEARING, FIST ASSY (INCL. 10-19)
  • 17
    1500228 O-RING
    O-RING
  • 18
    1500127 O-RING
    O-RING
  • 19
    1500488 BEARING (.5 IDX.5 TLG)
    BEARING (.5 IDX.5 TLG)
  • 20
    1500459 O-RING (.070CSX1.489ID)
    O-RING (.070CSX1.489ID)
  • 21
    1500017 PLATE, TOP OUTER
    PLATE, TOP OUTER
  • 22
    1500097 RING RETAINING, WIRE
    RING RETAINING, WIRE
  • 23
    1500336 COLLAR, ALUMINUM
    COLLAR, ALUMINUM
  • 24
    1500480 BODY, PPS3 ASSY (INCL. 2)
    BODY, PPS3 ASSY (INCL. 2)
  • 25
    1500311 SLEEVE
    SLEEVE
  • 26
    1500307 BUSHING (.35ILG, .63TLG)
    BUSHING (.35ILG, .63TLG)
  • 27
    5333907 SLEEVE
    SLEEVE
  • 28
    5010422 BUSHING
    BUSHING
  • 28
    7042129 SHOCK R/T ALUM PPS
    SHOCK R/T ALUM PPS
