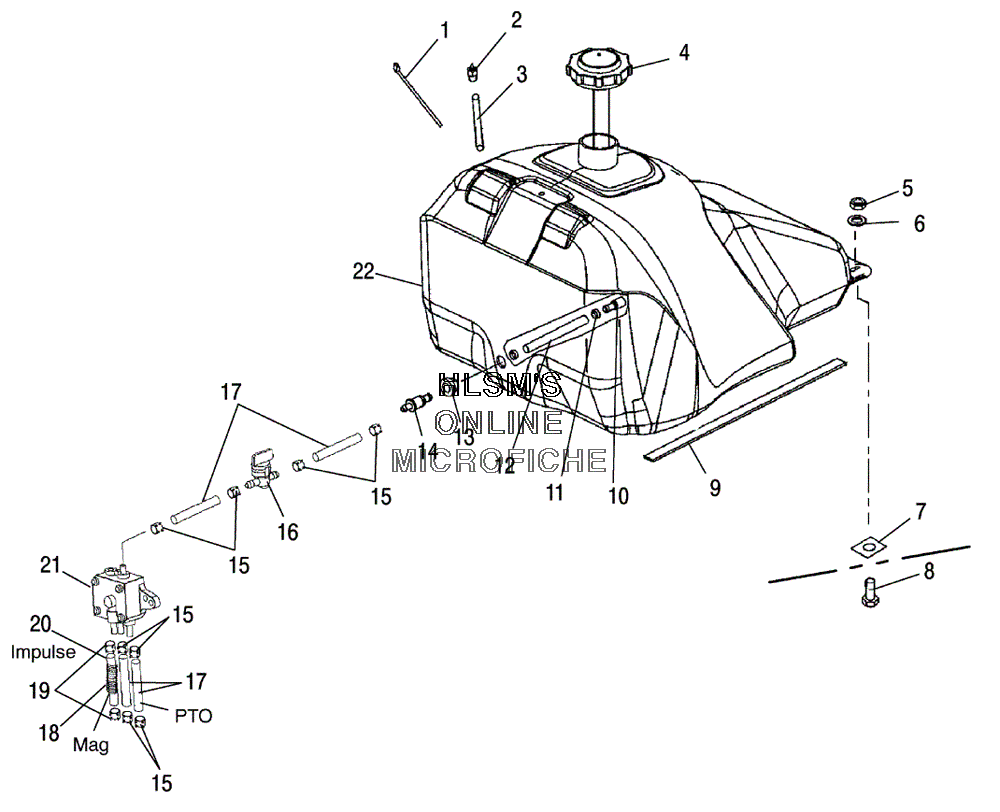

FUEL TANK для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7080804 CABLE TIE-RELEASABLE, 5 1/2"
    CABLE TIE-RELEASABLE, 5 1/2"
  • 2
    7052095 FITTING, 90 DEG 1/8
    FITTING, 90 DEG 1/8
  • 3
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 4
    2520323 FUEL CAP 12 GAL W/GAUGE
    FUEL CAP 12 GAL W/GAUGE
  • 4
    5810512 GASKET
    GASKET
  • 5
    7542122 NUT NYLOK
    NUT NYLOK
  • 6
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 7
    7670021 NUT, SPEED
    NUT, SPEED
  • 8
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 10
    7052301 PICK-UP FUEL, W/FILTER 105 MICRON
    PICK-UP FUEL, W/FILTER 105 MICRON
  • 11
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 12
    8350019-160 FUEL LINE ESTER
    FUEL LINE ESTER
  • 13
    7052028 GROMMET
    GROMMET
  • 14
    7052321 FITTING 1/4 STRAIGHT DEX
    FITTING 1/4 STRAIGHT DEX
  • 15
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    7052248 VALVE FUEL, PLASTIC INLINE 1/4"
    VALVE FUEL, PLASTIC INLINE 1/4"
  • 17
    8350018-600 TUBING ETHER ERETHNE SERVICE (160MM)
    TUBING ETHER ERETHNE SERVICE (160MM)
  • 18
    8360052-30 TUBING CONVOLUTED (.500 ID, 30CM)
    TUBING CONVOLUTED (.500 ID, 30CM)
  • 19
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 20
    8450040-600 LINE FUEL (1/4 ID/600 CM.)
    LINE FUEL (1/4 ID/600 CM.)
  • 21
    3085490 FUEL PUMP, NON-ASBESTOS ASSY
    FUEL PUMP, NON-ASBESTOS ASSY
  • 22
    2520276 FUEL TANK ASSY
    FUEL TANK ASSY
