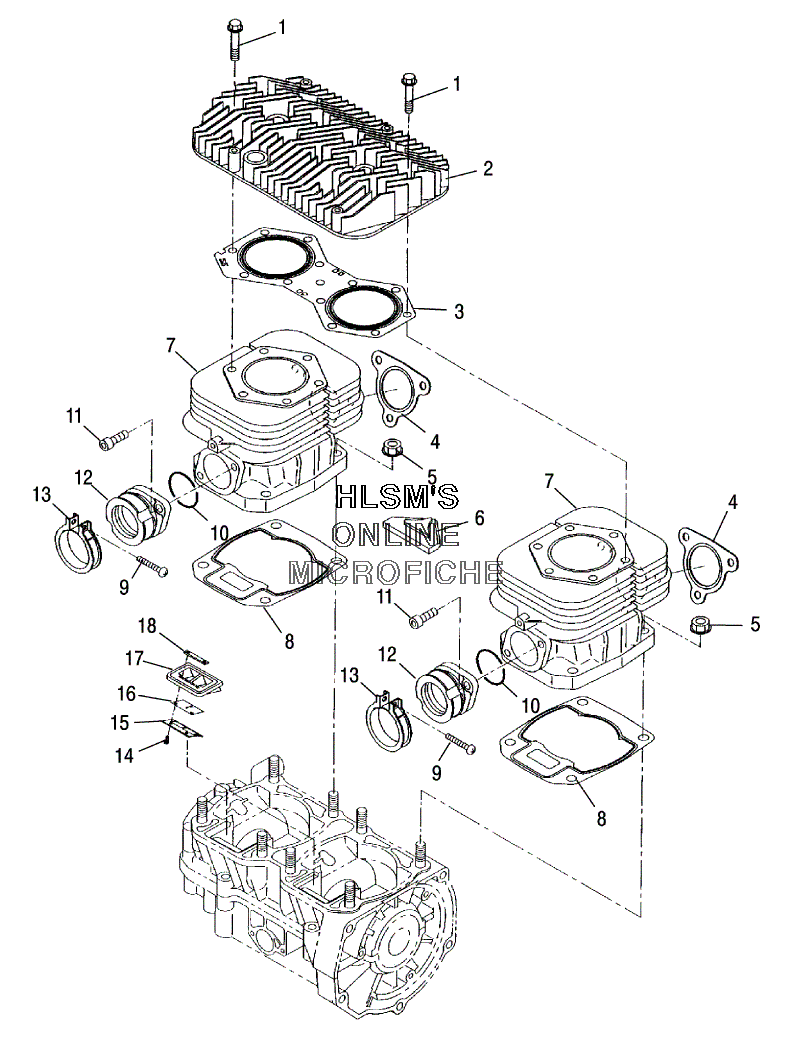

CYLINDER ASSEMBLY для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3084271 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    3088215 HEAD CYLINDER
    HEAD CYLINDER
  • 3
    3085704 GASKET, HEAD
    GASKET, HEAD
  • 4
    3085714 GASKET, EXHAUST
    GASKET, EXHAUST
  • 5
    3082911 NUT FLANGE
    NUT FLANGE
  • 6
    3085692 COVER, CYLINDER BAFFLE
    COVER, CYLINDER BAFFLE
  • 7
    3089226 CYLINDER UNIT
    CYLINDER UNIT
  • 8
    3085666 GASKET, CYLINDER
    GASKET, CYLINDER
  • 9
    3081497 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 10
    3085619 O-RING
    O-RING
  • 11
    3081330 BOLT, SOCKET HEAD
    BOLT, SOCKET HEAD
  • 12
    3085670 ADAPTER ASSY (INCL. 10)
    ADAPTER ASSY (INCL. 10)
  • 13
    3083166 ADAPTER BAND ASSY (INCL. 9)
    ADAPTER BAND ASSY (INCL. 9)
  • 14
    3085717 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 15
    3086387 STOPPER
    STOPPER
  • 16
    3085715 VALVE, REED
    VALVE, REED
  • 17
    3086386 VALVE, REED ASSY
    VALVE, REED ASSY
  • 18
    3085718 PLATE
    PLATE
