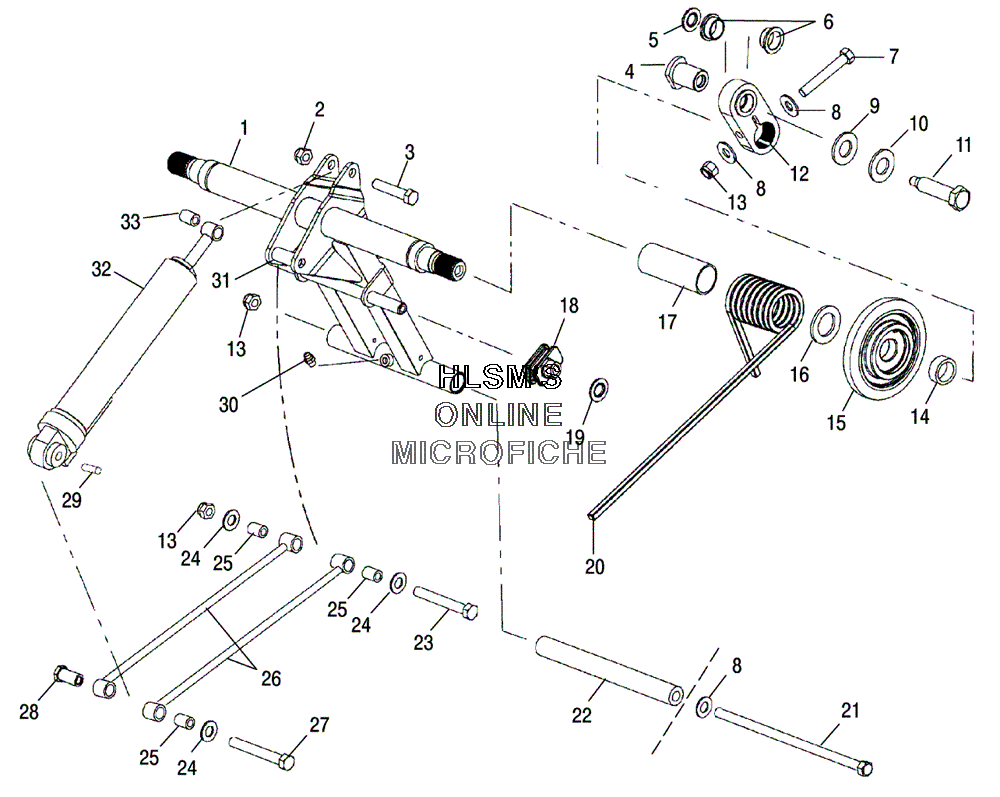

SUSPENSION - REAR TORQUE ARM ASSEMBLY (EDGE) для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1541969-067 WELD ARM, TORQUE (REAR/BLACK)
    WELD ARM, TORQUE (REAR/BLACK)
  • 2
    7542411 NUT, FLEXLOC
    NUT, FLEXLOC
  • 3
    7512410 BOLT
    BOLT
  • 4
    5333758 SHAFT-ARM
    SHAFT-ARM
  • 5
    7555945 WASHER, THRUST
    WASHER, THRUST
  • 6
    3514331 BUSHING
    BUSHING
  • 7
    7515415 SCREW
    SCREW
  • 8
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 9
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 10
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 11
    7517435 SCREW
    SCREW
  • 12
    1541967 ARM, 2.00 ASSY (INCL. 6)
    ARM, 2.00 ASSY (INCL. 6)
  • 13
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 14
    5132388 SPACER, WHEEL
    SPACER, WHEEL
  • 15
    1590343 CARRIER WHEEL, 6.38 ASSY
    CARRIER WHEEL, 6.38 ASSY
  • 16
    7555787 WASHER
    WASHER
  • 17
    5431923 SLEEVE, TORSION SPRING
    SLEEVE, TORSION SPRING
  • 18
    5432983 ROLLER, SPRING ADJUST SQUARE
    ROLLER, SPRING ADJUST SQUARE
  • 19
    7080394 CLIP, PUSH ON
    CLIP, PUSH ON
  • 20
    7041942-067 SPRING TORSION (375SQ/77Ш) (LEFT/BLACK) (OPT)
    SPRING TORSION (375SQ/77Ш) (LEFT/BLACK) (OPT)
  • 20
    7041943-067 SPRING TORSION (375SQ/77Ш) (RIGHT/BLACK) (OPT)
    SPRING TORSION (375SQ/77Ш) (RIGHT/BLACK) (OPT)
  • 20
    7041629-067 SPRING, TORSION (359/77) (LEFT/BLACK) (STD. SOFT)
    SPRING, TORSION (359/77) (LEFT/BLACK) (STD. SOFT)
  • 20
    7041630-067 SPRING, TORSION (359/77) (RIGHT/BLACK) (STD. SOFT)
    SPRING, TORSION (359/77) (RIGHT/BLACK) (STD. SOFT)
  • 20
    7041940-067 SPRING, TORSION (405SQ/77Ш) (BLACK/LEFT) (OPT. FIRM)
    SPRING, TORSION (405SQ/77Ш) (BLACK/LEFT) (OPT. FIRM)
  • 20
    7041941-067 SPRING, TORSION (405SQ/77Ш) (BLACK/RIGHT) (OPT. FIRM)
    SPRING, TORSION (405SQ/77Ш) (BLACK/RIGHT) (OPT. FIRM)
  • 21
    7517232 SCREW
    SCREW
  • 22
    5333873 SHAFT
    SHAFT
  • 23
    7515514 BOLT
    BOLT
  • 24
    7555795 WASHER, WAVE SPRING
    WASHER, WAVE SPRING
  • 25
    5132391 BUSHING
    BUSHING
  • 26
    1541479-067 ROD, SHOCK (BLACK)
    ROD, SHOCK (BLACK)
  • 27
    7517851 SCREW, HEXAGON/P
    SCREW, HEXAGON/P
  • 28
    5132390 BUSHING, NUT
    BUSHING, NUT
  • 29
    5333907 SLEEVE
    SLEEVE
  • 30
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 31
    5333904 SPACER
    SPACER
  • 32
    7042129 SHOCK, R/T SLUMINUM PPS
    SHOCK, R/T SLUMINUM PPS
  • 33
    5010422 BUSHING
    BUSHING
