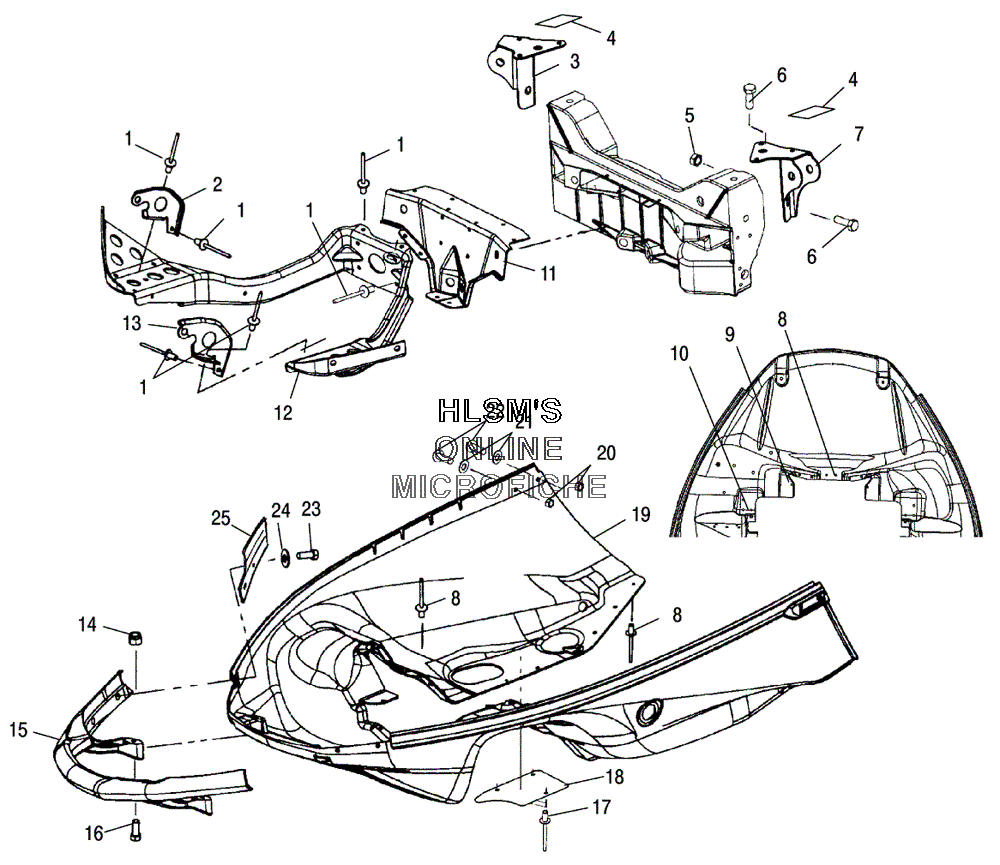

NOSEPAN ASSEMBLY #1 для Polaris 550 SUPER SPORT (S05NP5BS) - 2005 года выпуска`
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
25243992-067 HINGE- PIVOT (LOWER/BLACK, RIGHTHINGE- PIVOT (LOWER/BLACK, RIGHT
-
35243978 MOUNT, SHOCK, BLOCKHEAD (RIGHT/UPPER)MOUNT, SHOCK, BLOCKHEAD (RIGHT/UPPER)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT FLANGED, 3/8-16 NYLON-ZNUT FLANGED, 3/8-16 NYLON-Z
-
67517935 SCR-3/8, 16X1 1/4 HXSOC CS ZY3SCR-3/8, 16X1 1/4 HXSOC CS ZY3
-
75243977 MOUNT SHOCK, BLOCKHEAD (LEFT/UPPER)MOUNT SHOCK, BLOCKHEAD (LEFT/UPPER)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKT, RADIUS ROD SUPPORT (BLACK)BRACKT, RADIUS ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE-LOWER PIVOT (LEFT/BLACK)HINGE-LOWER PIVOT (LEFT/BLACK)
-
147542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
155433518-070 BUMPER ASSY (FRONT/BLACK)BUMPER ASSY (FRONT/BLACK)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, HEAT EXTENDEDSHIELD, HEAT EXTENDED
-
195434343-293 NOSEPAN GAS ASSIST (INDY RED)NOSEPAN GAS ASSIST (INDY RED)
-
195434343-070 NOSEPAN GAS ASSIST (BLK)NOSEPAN GAS ASSIST (BLK)
-
207542122 NUT NYLOKNUT NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517312 SCREWSCREW
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
255244888 GUIDE, HOOD (LEFT)GUIDE, HOOD (LEFT)
-
255244889 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
