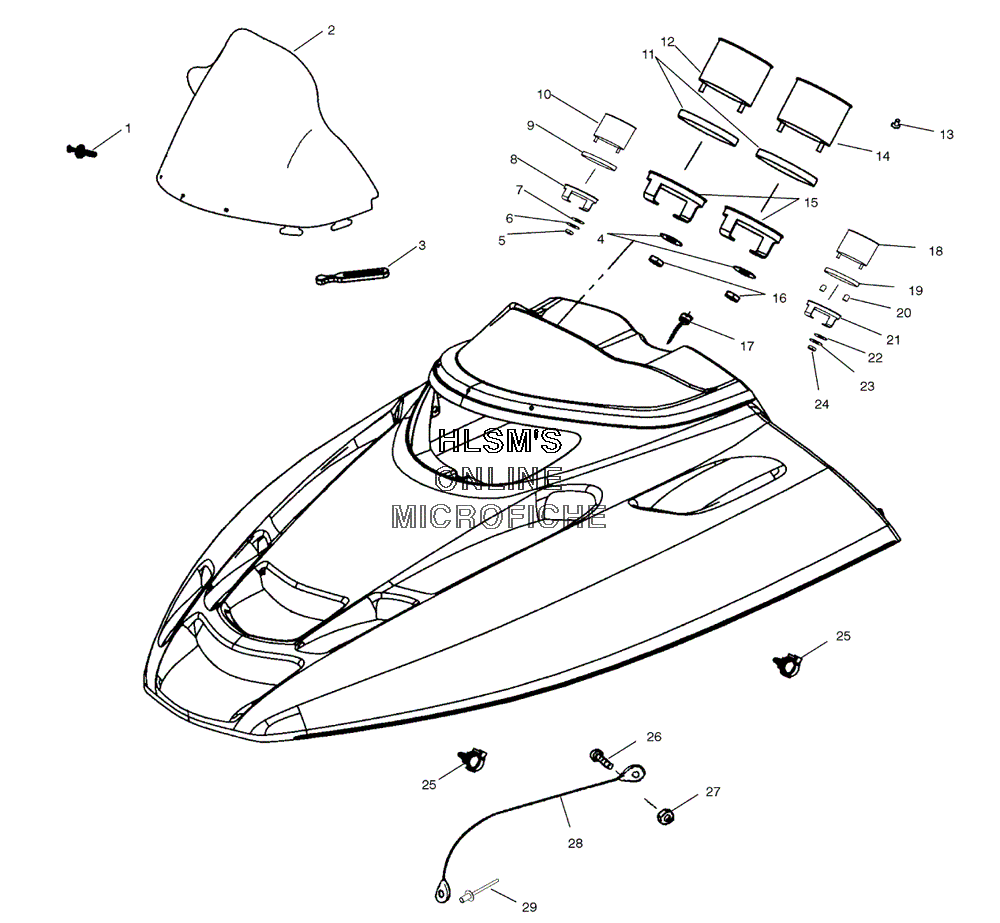

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25435045 WINDSHIELD 15" FLR (SMOKE/GRAPHITE)WINDSHIELD 15" FLR (SMOKE/GRAPHITE)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280157 WASHER, FLATWASHER, FLAT
-
57541933 NUTNUT
-
67555868 WASHER, LOCKWASHER, LOCK
-
73280324 WASHER, FLATWASHER, FLAT
-
83280322 BACK CLAMP, GAUGE 2"BACK CLAMP, GAUGE 2"
-
93280323 CUSHION, RUBBER 2"CUSHION, RUBBER 2"
-
103280404 GAUGE, RIDE CONTROL ASSY (M-10 ACE) (INCL. 8, 9)GAUGE, RIDE CONTROL ASSY (M-10 ACE) (INCL. 8, 9)
-
113280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
122874396 TACHOMETER, 5" KIT (WHITE/BLACK) (INCL. 11-16)TACHOMETER, 5" KIT (WHITE/BLACK) (INCL. 11-16)
-
124030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
133280186 KNOB, TRIP ODOMETER, THEAD (LEFT)KNOB, TRIP ODOMETER, THEAD (LEFT)
-
143280415 SPEEDOMETER, 5", 120MPH ASSY (WHITE/BLACK)SPEEDOMETER, 5", 120MPH ASSY (WHITE/BLACK)
-
144030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
153280210 BRACKET, TACHOMETER/SPEEDOMETER 5"BRACKET, TACHOMETER/SPEEDOMETER 5"
-
167546703 NUT, NYLOKNUT, NYLOK
-
173280385 CABLE SPEEDOMETER (W/FOIL)CABLE SPEEDOMETER (W/FOIL)
-
183280410 FUEL GAUGE, 2" BACKLIGHT ASSY (WHITE/BLACK)FUEL GAUGE, 2" BACKLIGHT ASSY (WHITE/BLACK)
-
184060139 FUSEFUSE
-
193280230 CUSHION, FUELGAUGECUSHION, FUELGAUGE
-
203280228 SPACER, BRACKET (FUELGAUGE)SPACER, BRACKET (FUELGAUGE)
-
213280229 BRACKET, FUELGAUGEBRACKET, FUELGAUGE
-
223280231 WASHERWASHER
-
233280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
243280232 NUTNUT
-
257080886 CLIP (ROSEBUD/GRAY)CLIP (ROSEBUD/GRAY)
-
267512018 SCREWSCREW
-
277541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
287080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
297661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
