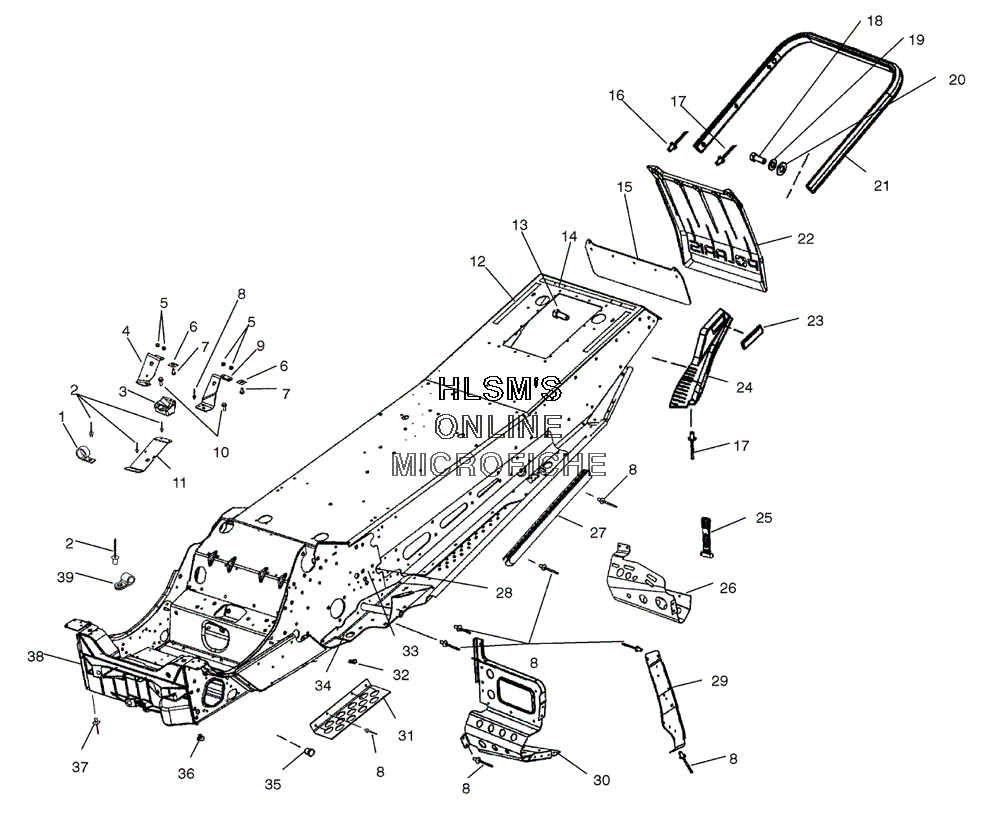

FRAME - CHASSIS для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7080693 CLAMP, HOSE NYLON
    CLAMP, HOSE NYLON
  • 2
    7621432 RIVET
    RIVET
  • 3
    5412224 TORQUE STOP
    TORQUE STOP
  • 4
    1013543 WELD ENGINE MOUNT (REAR/RIGHT)
    WELD ENGINE MOUNT (REAR/RIGHT)
  • 5
    7542122 NUT NYLOK
    NUT NYLOK
  • 6
    7670021 NUT, SPEEDOMETER
    NUT, SPEEDOMETER
  • 7
    7515203 BOLT
    BOLT
  • 8
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
  • 9
    1013542 WELD ENGINE MOUNT (REAR/LEFT)
    WELD ENGINE MOUNT (REAR/LEFT)
  • 10
    7517854 SCREW SPEC Y
    SCREW SPEC Y
  • 11
    1013786 BRACKET, COIL WITH NUTS ASSY
    BRACKET, COIL WITH NUTS ASSY
  • 12
    5812290 GASKET SEAT BASE
    GASKET SEAT BASE
  • 13
    7517441 SCREW (.75)
    SCREW (.75)
  • 14
    5812360 GASKET SEAT BASE (1/4")
    GASKET SEAT BASE (1/4")
  • 15
    5812430 BACKER SNOW FLAP
    BACKER SNOW FLAP
  • 16
    7621418 RIVET, POP
    RIVET, POP
  • 17
    7621472 RIVET
    RIVET
  • 18
    7512232 BOLT
    BOLT
  • 19
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 20
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 21
    2632165-309 BUMPER, ASSY (REAR)
    BUMPER, ASSY (REAR)
  • 22
    5434847-1106 FLAP SNO EDGE LONG (BLACK)
    FLAP SNO EDGE LONG (BLACK)
  • 23
    2670133 REFLECTOR ASSY (RED)
    REFLECTOR ASSY (RED)
  • 24
    2632443-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT) (INCL. 23)
    SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT) (INCL. 23)
  • 24
    2632444-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT) (INCL. 23)
    SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT) (INCL. 23)
  • 25
    5433150 STRAP
    STRAP
  • 26
    5245457-067 MOUNT CONSOLE, TOE CLIP (BLACK/LEFT)
    MOUNT CONSOLE, TOE CLIP (BLACK/LEFT)
  • 26
    5245458-067 MOUNT CONSOLE, TOE CLIP (BLACK/RIGHT)
    MOUNT CONSOLE, TOE CLIP (BLACK/RIGHT)
  • 27
    5245118-067 BRACE TUNNEL ROLL (BLACK)
    BRACE TUNNEL ROLL (BLACK)
  • 28
    5244997-067 BRACE TUNNEL (LOWER/BLACK/LEFT)
    BRACE TUNNEL (LOWER/BLACK/LEFT)
  • 28
    5244998-067 BRACE TUNNEL (LOWER/BLACK/RIGHT)
    BRACE TUNNEL (LOWER/BLACK/RIGHT)
  • 29
    5246310-067 SUPPORT FOOTREST (BLACK/LEFT)
    SUPPORT FOOTREST (BLACK/LEFT)
  • 29
    5246311-067 SUPPORT FOOTREST (BLACK/RIGHT)
    SUPPORT FOOTREST (BLACK/RIGHT)
  • 30
    5245288-067 FOOTREST (BLACK/LEFT)
    FOOTREST (BLACK/LEFT)
  • 30
    5247205-067 FOOTREST (BLACK/RIGHT)
    FOOTREST (BLACK/RIGHT)
  • 31
    5246811 GUARD ADAPTER, DRIVE
    GUARD ADAPTER, DRIVE
  • 32
    7081085 PLUG BARBED (.625)
    PLUG BARBED (.625)
  • 32
    5412276 GROMMET M-10 ACE WIRE
    GROMMET M-10 ACE WIRE
  • 33
    5244999-067 PAD SUSPENSION (FRONT/LEFT/BLACK)
    PAD SUSPENSION (FRONT/LEFT/BLACK)
  • 33
    5245001-067 PAD SUSPENSION (FRONT/RIGHT/BLACK)
    PAD SUSPENSION (FRONT/RIGHT/BLACK)
  • 34
    2202059 MOUNT, TRAILING ARM KIT (LEFT)
    MOUNT, TRAILING ARM KIT (LEFT)
  • 34
    2202598 MOUNT, TRAILING ARM KIT (RIGHT)
    MOUNT, TRAILING ARM KIT (RIGHT)
  • 35
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 36
    7080399 BUSHING, OPEN/CLOSE
    BUSHING, OPEN/CLOSE
  • 37
    7661639 RIVET
    RIVET
  • 38
    5132292 BULKHEAD, MACH (FRONT)
    BULKHEAD, MACH (FRONT)
  • 39
    7080539 CLAMP, NYLON CABLE
    CLAMP, NYLON CABLE
  • 39
    1014147-067 CHASSIS, SERVICE ASSY (BLACK)
    CHASSIS, SERVICE ASSY (BLACK)
