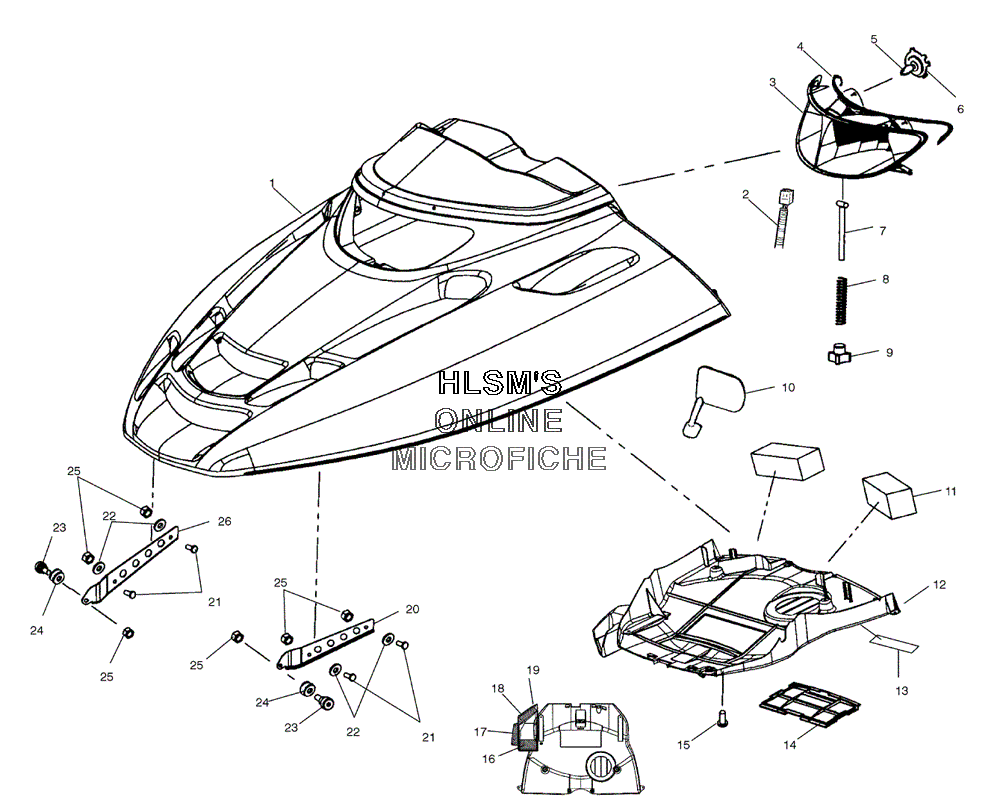

HOOD ASSEMBLY W/ HEADLIGHT для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска
-
№АртикулНазвание
-
12632621-447 HOOD, SERVICE ASSY (BLUE METALLIC)HOOD, SERVICE ASSY (BLUE METALLIC)
-
22461136 HARNESS HEADLIGHTHARNESS HEADLIGHT
-
32410132 HEADLAMP, 2-BULB ASSY (INCL. BULBS)HEADLAMP, 2-BULB ASSY (INCL. BULBS)
-
45812450 SEAL HEADLIGHT, ONE PIECESEAL HEADLIGHT, ONE PIECE
-
52870448 BULB, QUARTZ. HEADLIGHT H4BULB, QUARTZ. HEADLIGHT H4
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
77517872 BOLT TEE ADJUSTER (2.25)BOLT TEE ADJUSTER (2.25)
-
87041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
97080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
102632246-070 MIRROR ASSY (LEFT/BLACK)MIRROR ASSY (LEFT/BLACK)
-
102632247-070 MIRROR ASSY (RIGHT/BLACK)MIRROR ASSY (RIGHT/BLACK)
-
107556088 WASHER, FLATWASHER, FLAT
-
107546703 NUT, NYLOKNUT, NYLOK
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632650 PLENUM/FOIL ASSY (INCL. 16-19)PLENUM/FOIL ASSY (INCL. 16-19)
-
125433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
137170931 DECAL SUSPENSION SET UP, M-10DECAL SUSPENSION SET UP, M-10
-
137170226 DECAL SUSPENSION SET UP, M-10 ACEDECAL SUSPENSION SET UP, M-10 ACE
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165812414 FOILFOIL
-
175812324 FOILFOIL
-
185811948 FOILFOIL
-
195812415 FOIL (LEFT/INNER)FOIL (LEFT/INNER)
-
205243567-067 HINGE (UPPER/LEFT/BLACK)HINGE (UPPER/LEFT/BLACK)
-
217512240 BOLTBOLT
-
227558301 WASHER, FLATWASHER, FLAT
-
237512113 BOLTBOLT
-
245332403 SPACERSPACER
-
257542122 NUT NYLOKNUT NYLOK
-
265243568-067 HINGE (UPPER/RIGHT/BLACK)HINGE (UPPER/RIGHT/BLACK)
