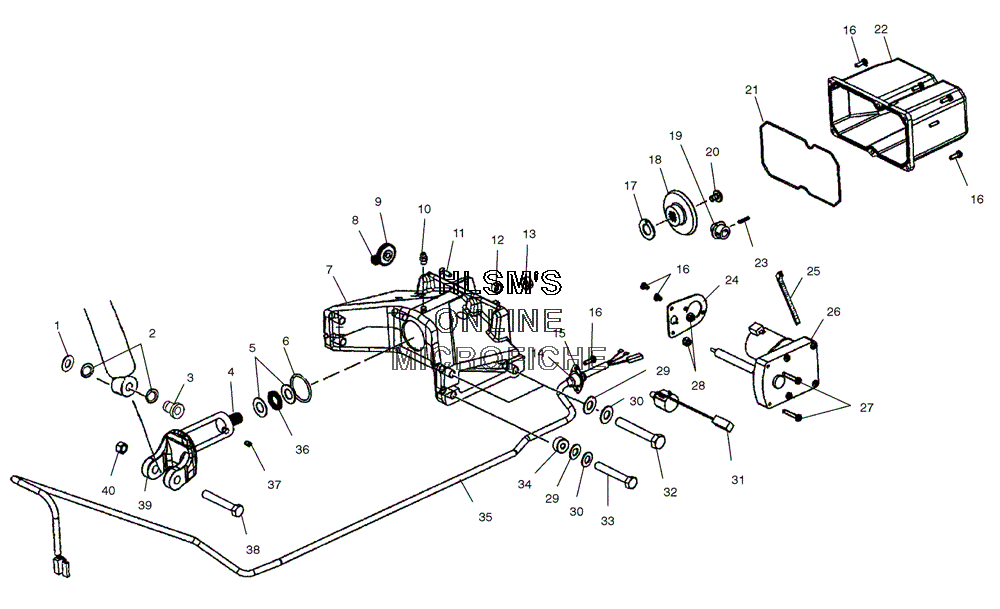

ELECTRIC MODULE (M-10) (ACE) для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска`
-
№АртикулНазвание
-
15133403 BUSHINGBUSHING
-
25411092 O-RINGO-RING
-
35133402 BUSHING FLANGEBUSHING FLANGE
-
45133159 SHAFT SCREW, M-10 ACESHAFT SCREW, M-10 ACE
-
53514388 BEARING RACEWAY, M-10 ACEBEARING RACEWAY, M-10 ACE
-
65412229 O-RINGO-RING
-
71541692 CASTING, M-10 ACE, ELECTRIC ASSY (INCL. 6, 10, 12, 13)CASTING, M-10 ACE, ELECTRIC ASSY (INCL. 6, 10, 12, 13)
-
85434728 GEAR PLASTIC, SPUR (12T)GEAR PLASTIC, SPUR (12T)
-
95434727 GEAR PLASTIC, SPUR (32T)GEAR PLASTIC, SPUR (32T)
-
107080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117518088 SCREW HEXAGON SOCKET FLANGE HEADSCREW HEXAGON SOCKET FLANGE HEAD
-
123514385 BEARING PLAINBEARING PLAIN
-
133514403 BEARING PLAINBEARING PLAIN
-
145434492 GROMMET WIRE, M-10 ACE ELECTRICGROMMET WIRE, M-10 ACE ELECTRIC
-
155222998 PLATE, GROMMETPLATE, GROMMET
-
167511866 SCREWSCREW
-
177556201 WASHER THRUSTWASHER THRUST
-
183221135 GEAR BEVEL, LARGE M-10 ACEGEAR BEVEL, LARGE M-10 ACE
-
193221136 GEAR BEVEL, SMALL M-10 ACEGEAR BEVEL, SMALL M-10 ACE
-
207518152 SCREW TRTXSCREW TRTX
-
215434293 SEAL COVER, M-10 ACESEAL COVER, M-10 ACE
-
225434292 COVER MOTOR, M-10 ACE ELECTRICCOVER MOTOR, M-10 ACE ELECTRIC
-
237661161 PIN DRIVLOKPIN DRIVLOK
-
245246536 PLATE MOTOR SUPPORT, M-10 ACEPLATE MOTOR SUPPORT, M-10 ACE
-
257080138 CABLE TIECABLE TIE
-
264010596 MOTOR M-10 ACE, ELECTRICMOTOR M-10 ACE, ELECTRIC
-
277518087 SCREW TORX/PIN HEADSCREW TORX/PIN HEAD
-
287547004 NUTNUT
-
297556042 WASHER FLATWASHER FLAT
-
307552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
314010780 POTENTIOMETER M-10 ACE, 10 TURNPOTENTIOMETER M-10 ACE, 10 TURN
-
327518006 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
337518005 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
345133351 SPACERSPACER
-
352461104 HARNESS WIRE, M-10 ACE ELECTRIC (INCL. 14)HARNESS WIRE, M-10 ACE ELECTRIC (INCL. 14)
-
363514387 BEARING THRUST, M-10 ACEBEARING THRUST, M-10 ACE
-
377518037 SCREW SETSCREW SET
-
387515438 BOLTBOLT
-
395133325 CLEVIS MACHINED, M-10 ACECLEVIS MACHINED, M-10 ACE
-
407542439 NUT, NYLOKNUT, NYLOK
