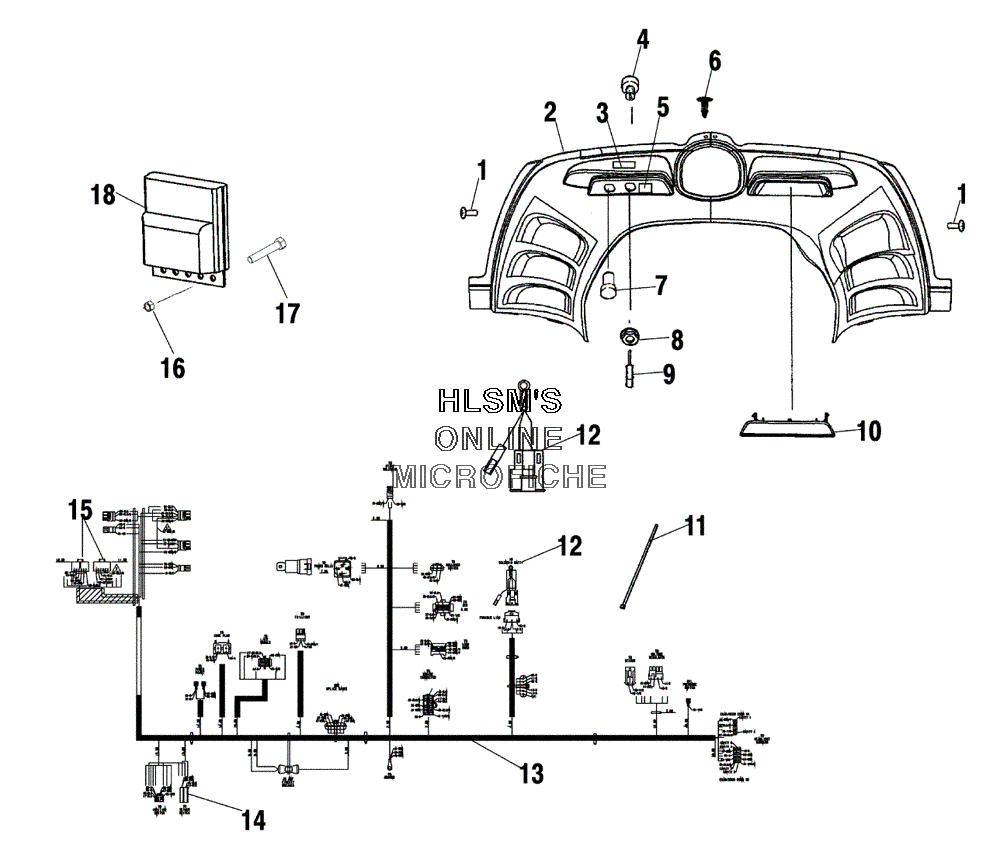

CONSOLE для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7515199 SCREW
    SCREW
  • 2
    2632649 CONSOLE WITH FOIL ASSY
    CONSOLE WITH FOIL ASSY
  • 2
    5812401 FOIL CONSOLE SIDE
    FOIL CONSOLE SIDE
  • 2
    5812402 FOIL CONSOLE LOUVER
    FOIL CONSOLE LOUVER
  • 3
    7075438 DECAL, "NO PASS." WARNING
    DECAL, "NO PASS." WARNING
  • 4
    2200358 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 5
    7170039 DECAL IGNITION
    DECAL IGNITION
  • 6
    7670090 CLIP, PLASTIC DART NYLON
    CLIP, PLASTIC DART NYLON
  • 7
    4010638 RECEPTACLE POD MOUNT, 12 VOLT
    RECEPTACLE POD MOUNT, 12 VOLT
  • 8
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 9
    5410611 N/A, USE COMPONENTS NOTE:
    N/A, USE COMPONENTS NOTE:
  • 10
    5434438 PLUG RECOIL
    PLUG RECOIL
  • 11
    7080138 CABLE TIE
    CABLE TIE
  • 12
    2461076 HARNESS FUSIBLE LINK
    HARNESS FUSIBLE LINK
  • 12
    4010725 RELAY SPDT, SEALED
    RELAY SPDT, SEALED
  • 13
    2461170 HARNESS MAIN, WITH ACE
    HARNESS MAIN, WITH ACE
  • 14
    4020063 HOUSING, PACK
    HOUSING, PACK
  • 15
    4010193 HOUSING CONNECTOR
    HOUSING CONNECTOR
  • 16
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 17
    7512050 SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 18
    4010597 CONTROLLER M-10 ACE, ELECTRIC
    CONTROLLER M-10 ACE, ELECTRIC
