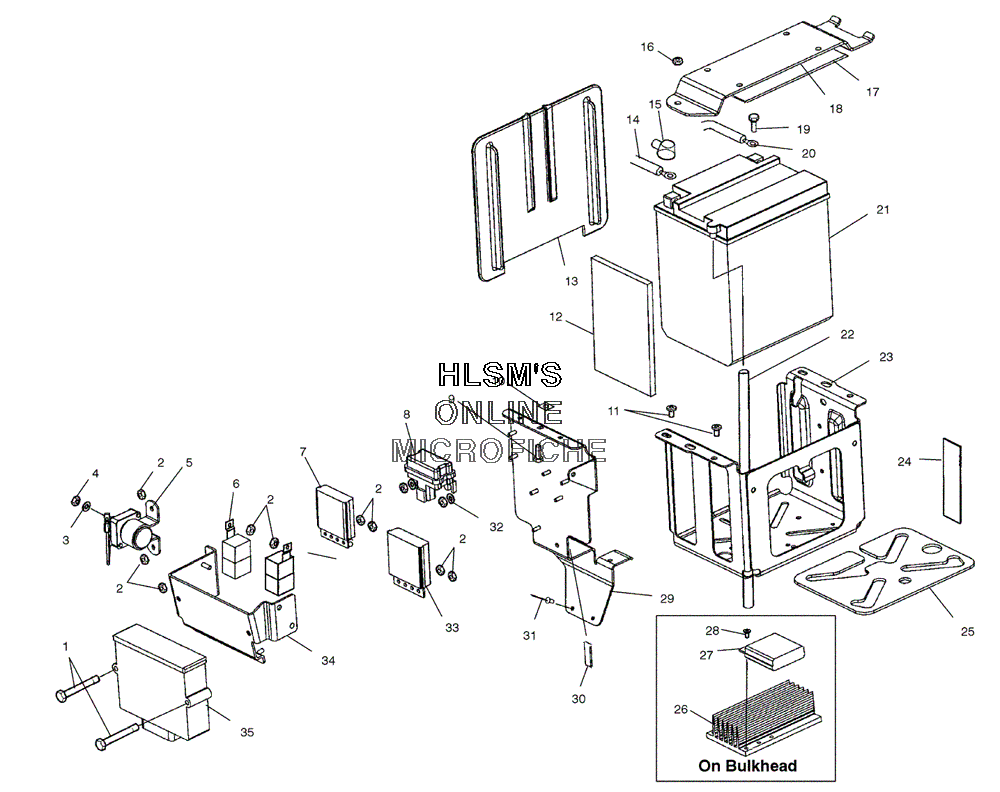

ELECTRICAL - BATTERY BOX для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска
-
№АртикулНазвание
-
17518273 SCREW UNSL HEXAGONSCREW UNSL HEXAGON
-
27541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
37552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
47542105 NUT HEXAGONNUT HEXAGON
-
52410437 STARTER SOLENOID, SERVICE (INCL. 3, 4)STARTER SOLENOID, SERVICE (INCL. 3, 4)
-
64010725 RELAY SPDT SEALEDRELAY SPDT SEALED
-
74010722 SWITCH ALTERNATOR CONTROLSWITCH ALTERNATOR CONTROL
-
84010637 SWITCH ROLL OVERSWITCH ROLL OVER
-
97512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
107670021 NUT, SPEEDOMETERNUT, SPEEDOMETER
-
117512084 SCREWSCREW
-
125812419 FOAM BATTERY BOX SPACERFOAM BATTERY BOX SPACER
-
135434659 BATTERY RETAINERBATTERY RETAINER
-
144010091 CABLE, BATTERY SOLENOIDCABLE, BATTERY SOLENOID
-
155410346 INSUL CABLE SOLENOIDINSUL CABLE SOLENOID
-
167542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
175810290 PAD, BATTERYPAD, BATTERY
-
185245525 COVER BATTERY BOXCOVER BATTERY BOX
-
192202099 BATTERY BOLT KITBATTERY BOLT KIT
-
204010057 CABLE STARTER (14 IN)CABLE STARTER (14 IN)
-
214010630 BATTERY 30 AMP, TOP MOUNTBATTERY 30 AMP, TOP MOUNT
-
225432077 TUBE, VENTTUBE, VENT
-
231013932-067 WELD BATTERY BOX (BLACK)WELD BATTERY BOX (BLACK)
-
245811651 PAD, BATTERY SIDEPAD, BATTERY SIDE
-
255811623 PAD, BATTERYPAD, BATTERY
-
265133411 HEAT SINK REGULATOR MACHHEAT SINK REGULATOR MACH
-
274010538 RECTIFIER REGULATOR 3-PHASE (LEFT)RECTIFIER REGULATOR 3-PHASE (LEFT)
-
287512018 SCREWSCREW
-
291014133 BRACKET, BATTERY BOX WITH STUDS ASSYBRACKET, BATTERY BOX WITH STUDS ASSY
-
308360012-04 EDGE TRIM (BLACK)EDGE TRIM (BLACK)
-
317621432 RIVETRIVET
-
327555746 WASHERWASHER
-
334010823 MODULE LOAD SHEDMODULE LOAD SHED
-
341014134 BRACKET ECU WITH STUDS ASSYBRACKET ECU WITH STUDS ASSY
-
354010972 ECU CALIBRATIONECU CALIBRATION
