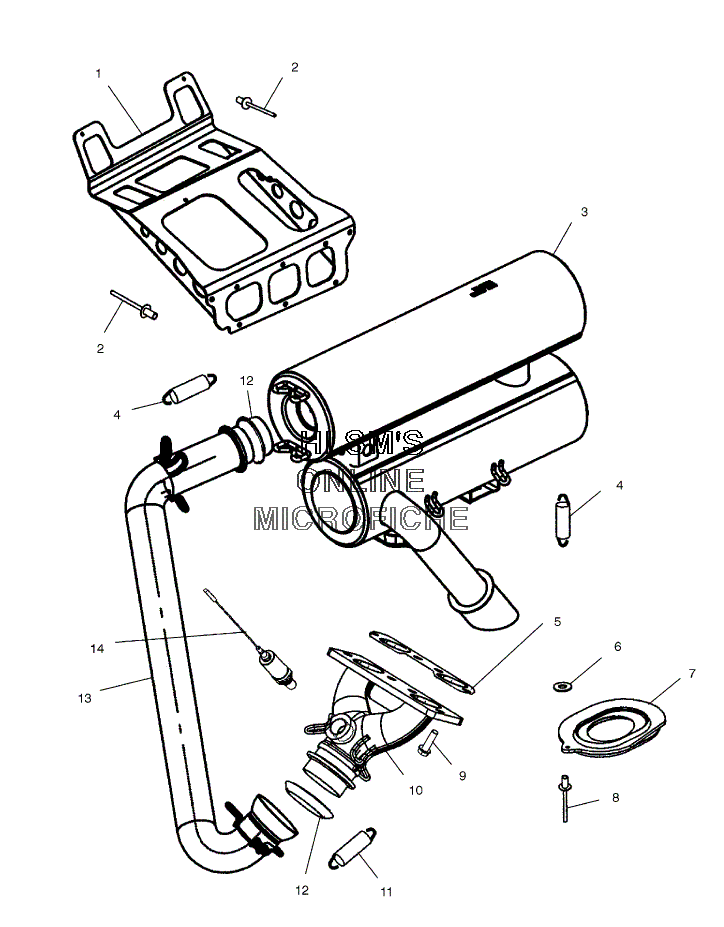

EXHAUST SYSTEM для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска`
-
№АртикулНазвание
-
11261194-029 WELD BRACKET, CHASSIS/RESONATOR (BLACK)WELD BRACKET, CHASSIS/RESONATOR (BLACK)
-
27661169 RIVET, HIGH STEERINGRIVET, HIGH STEERING
-
31261277-029 WELD RESONATOR (BLACK)WELD RESONATOR (BLACK)
-
47041687 SPRINGSPRING
-
55811511 GASKET (26MM ID)GASKET (26MM ID)
-
67555904 WASHERWASHER
-
75412145 BOOT OUTLET EXHAUSTBOOT OUTLET EXHAUST
-
87621467 RIVET, BLINDRIVET, BLIND
-
97518234 SCREW HEXAGON SOCKET SEMSSCREW HEXAGON SOCKET SEMS
-
101261268 WELD MANIFOLDWELD MANIFOLD
-
117042332 SPRINGSPRING
-
123610047 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
131261269 WELD HEAD PIPEWELD HEAD PIPE
-
144010430 SENSOR OXYGENSENSOR OXYGEN
