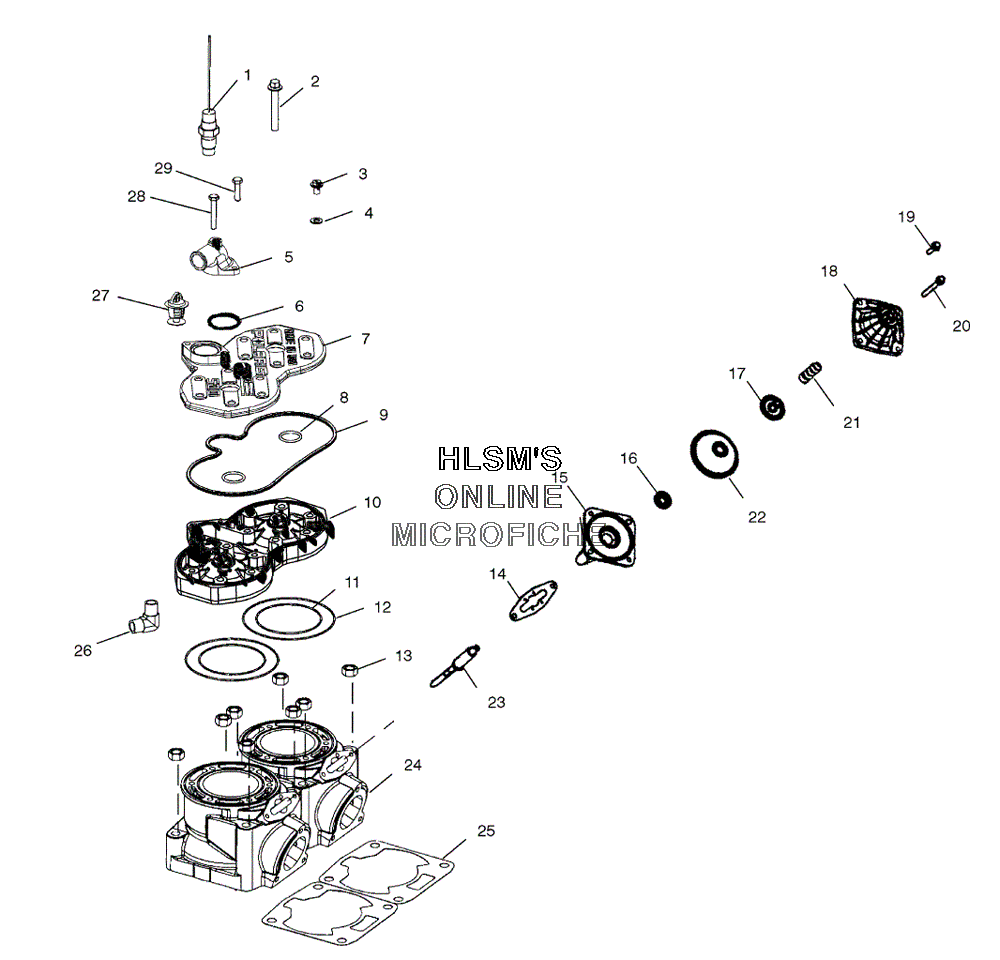

CYLINDER ASSEMBLY для Polaris 600 CLASSIC (S04ND6ES) - 2004 года выпуска`
-
№АртикулНазвание
-
14010398 SENSOR THERMISTERSENSOR THERMISTER
-
27517533 SCREW,SCREW,
-
37517679 SCREW HEXAGONSCREW HEXAGON
-
47555998 WASHER, FLATWASHER, FLAT
-
55631391 COVER, THERMOSTAT M6 BLEED MACHCOVER, THERMOSTAT M6 BLEED MACH
-
65411521 O-RING, LIPSEALO-RING, LIPSEAL
-
75631425-366 COVER HEAD (RED)COVER HEAD (RED)
-
85411411 O-RINGO-RING
-
95411465 SEALSEAL
-
103021322 HEAD CYLINDERHEAD CYLINDER
-
115410932 O-RINGO-RING
-
125411359 O-RINGO-RING
-
137547013 NUTNUT
-
145812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
151202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
165132950 WASHER BELLOWS, EXHAUST VALVEWASHER BELLOWS, EXHAUST VALVE
-
175631381 CAP/NUT, BELLOWS EXHAUST VALVCAP/NUT, BELLOWS EXHAUST VALV
-
181202640 HOUSING WITH BUSHING ASSYHOUSING WITH BUSHING ASSY
-
197516820 SCREWSCREW
-
207517932 SCREW HEXAGONSCREW HEXAGON
-
217041786-08 SPRING COMP (GREEN/YELLOW)SPRING COMP (GREEN/YELLOW)
-
225412399 BELLOWS EXHAUST MODIFIEDBELLOWS EXHAUST MODIFIED
-
235133380 VALVE GUILLOTINE 600 FORGEDVALVE GUILLOTINE 600 FORGED
-
243021333 CYLINDERCYLINDER
-
255811916 GASKET CYLINDER BASEGASKET CYLINDER BASE
-
267052234 FITTING WITH DRISEAL (3/4)FITTING WITH DRISEAL (3/4)
-
277052258 THERMOSTAT WITH OUT BYPASSTHERMOSTAT WITH OUT BYPASS
-
287516818 SCREWSCREW
-
297516822 SCREWSCREW
