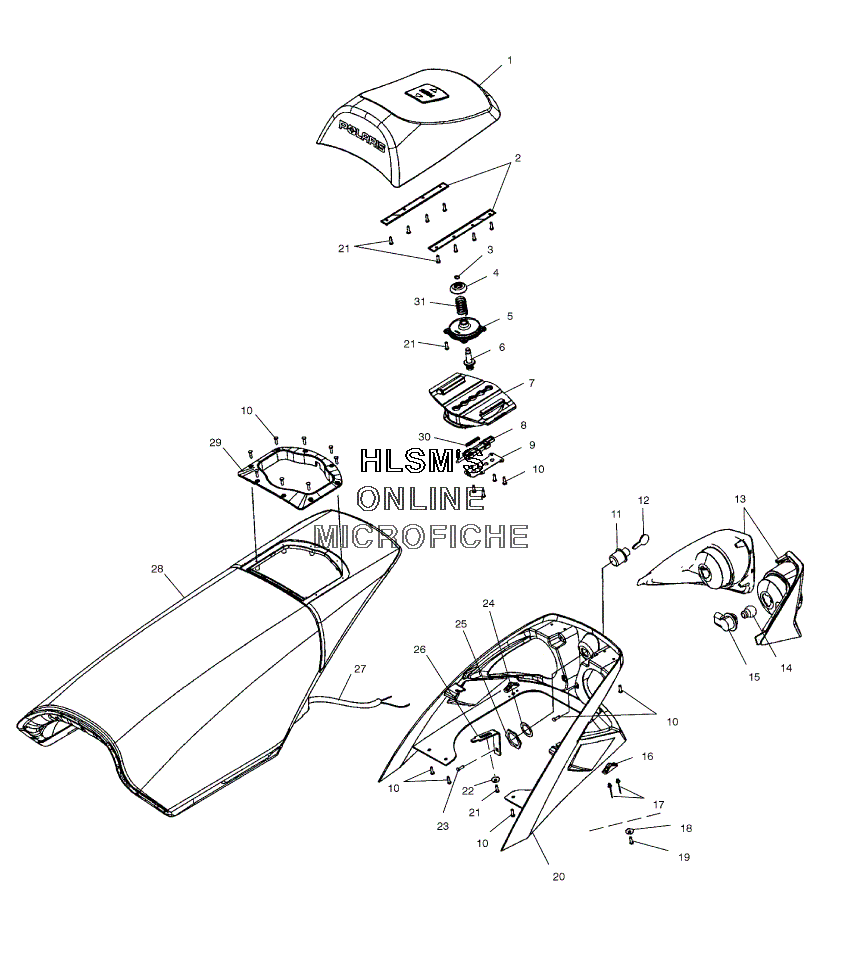

SEAT ADJUSTABLE для Polaris 600 CLASSIC (S04ND6ES) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5434819-070 BUCKET, SEAT ASSY (BLACK)
    BUCKET, SEAT ASSY (BLACK)
  • 2
    5247123 PLATE ADJUSTABLE SEAT
    PLATE ADJUSTABLE SEAT
  • 3
    7710429 RING, RETAINING
    RING, RETAINING
  • 4
    5434822 CAP PLUNGER, SEAT BUCKET
    CAP PLUNGER, SEAT BUCKET
  • 5
    5133975 PLUNGER SEAT BUCKET
    PLUNGER SEAT BUCKET
  • 6
    5434821 BASE PLUNGER
    BASE PLUNGER
  • 7
    5434816 COVER TRUNK
    COVER TRUNK
  • 8
    5434814 LATCH TRUNK
    LATCH TRUNK
  • 9
    5247107 LOCK BRACKET
    LOCK BRACKET
  • 10
    7512026 SCREW
    SCREW
  • 11
    7081121 (INCL. 12)
    (INCL. 12)
  • 12
    4010904 NOTE:
    NOTE:
  • 13
    2410395 TAILLIGHT ASSY (LEFT)
    TAILLIGHT ASSY (LEFT)
  • 13
    2410396 TAILLIGHT ASSY (RIGHT)
    TAILLIGHT ASSY (RIGHT)
  • 14
    4010764 BULB TAILLIGHT
    BULB TAILLIGHT
  • 15
    4010767 SOCKET BULB
    SOCKET BULB
  • 16
    5631194 NUT SEAT
    NUT SEAT
  • 17
    7621319 RIVET
    RIVET
  • 18
    7555828 WASHER, SPRING
    WASHER, SPRING
  • 19
    7517219 SCREW
    SCREW
  • 20
    5434813-070 TRUNK BOTTOM (BLACK)
    TRUNK BOTTOM (BLACK)
  • 21
    7518238 SCREW, HI/LO PIN-T25
    SCREW, HI/LO PIN-T25
  • 22
    7555792 WASHER
    WASHER
  • 23
    7081162 SCREW
    SCREW
  • 24
    7081161 WASHER
    WASHER
  • 25
    7081160 NUT
    NUT
  • 26
    5247221 BRACKET PUSHLOCK
    BRACKET PUSHLOCK
  • 27
    2461126 HARNESS TAILLIGHT
    HARNESS TAILLIGHT
  • 28
    2683170 SEAT ASSY [BLUE]
    SEAT ASSY [BLUE]
  • 28
    2683334 SEAT COVER, ADJUSTABLE SEAT (BLUE)
    SEAT COVER, ADJUSTABLE SEAT (BLUE)
  • 28
    2683266 SEAT, ADJUSTABLE EDGE (SOLENOID RED)
    SEAT, ADJUSTABLE EDGE (SOLENOID RED)
  • 28
    2683360 SEAT COVER, ADJUSTABLE SEAT (SOLENOID RED)
    SEAT COVER, ADJUSTABLE SEAT (SOLENOID RED)
  • 29
    5434812 FLANGE TRUNK
    FLANGE TRUNK
  • 30
    7042232 SPRING COMPRESSION LOCK
    SPRING COMPRESSION LOCK
  • 31
    7042199 SPRING, COMPRESSION PLUNGER
    SPRING, COMPRESSION PLUNGER
