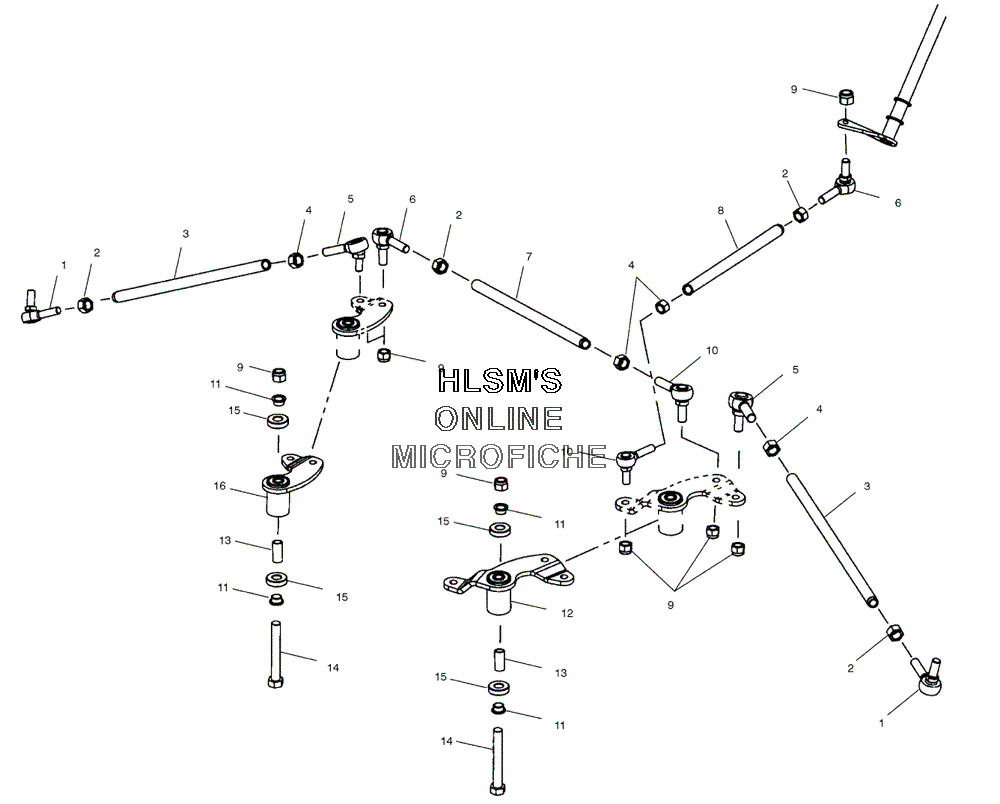

STEERING ASSEMBLY #2 для Polaris 600 CLASSIC (S04ND6ES) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7061057 ROD END (RIGHT)
    ROD END (RIGHT)
  • 2
    7542401 NUT, HEXAGON (RIGHT)
    NUT, HEXAGON (RIGHT)
  • 3
    5333949 ROD TIE
    ROD TIE
  • 4
    7542424 NUT (LEFT)
    NUT (LEFT)
  • 5
    7061055 ROD END 750 STUD (LEFT)
    ROD END 750 STUD (LEFT)
  • 6
    7061076 ROD END HI ANGLE, PR (RIGHT)
    ROD END HI ANGLE, PR (RIGHT)
  • 7
    5333772 ROD, STEERING RACK
    ROD, STEERING RACK
  • 8
    5333773-067 ROD DRAGLINK
    ROD DRAGLINK
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7061075 ROD END 3/8 HI ANGLE (LEFT)
    ROD END 3/8 HI ANGLE (LEFT)
  • 11
    5132106 BUSHING REDUCER (12MM)
    BUSHING REDUCER (12MM)
  • 12
    1820957 PITMAN ARM ASSY (INCL. 11, 13, 15)
    PITMAN ARM ASSY (INCL. 11, 13, 15)
  • 13
    5133423 SPACER TUBE PITMAN/IDLER ARMS
    SPACER TUBE PITMAN/IDLER ARMS
  • 14
    7512435 SCREW
    SCREW
  • 15
    3514320 BEARING BALL
    BEARING BALL
  • 16
    5245354 BRACKET, CONSOLE (STD) (FRONT)
    BRACKET, CONSOLE (STD) (FRONT)
