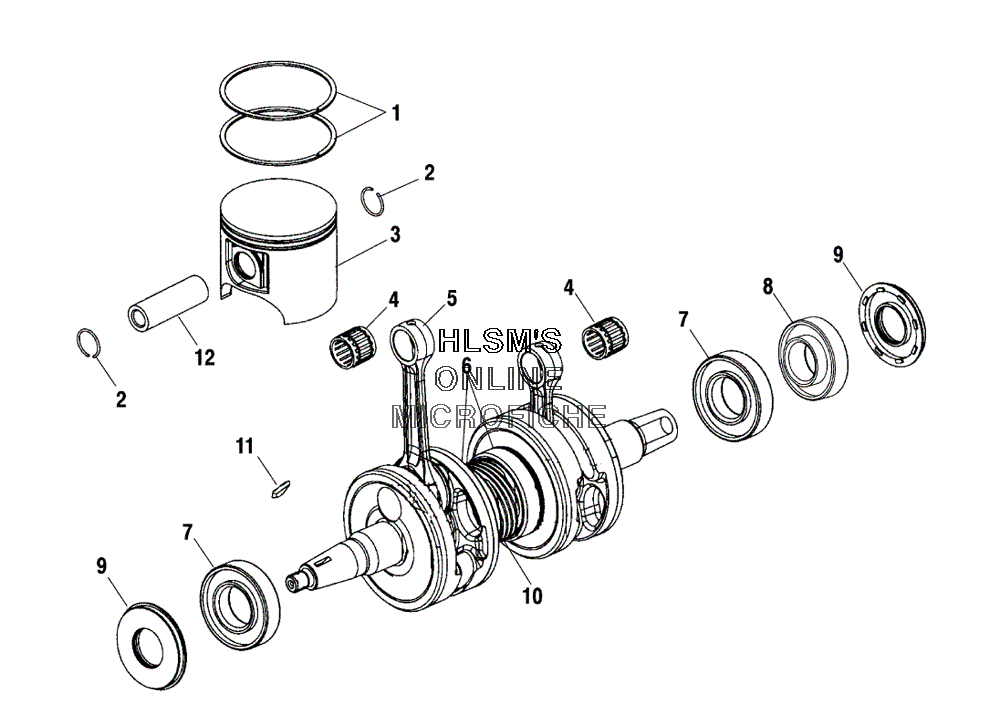

PISTON AND CRANKSHAFT для Polaris 600 CLASSIC (S04ND6ES) - 2004 года выпуска
-
№АртикулНазвание
-
12201256 PISTON RINGS KITPISTON RINGS KIT
-
23022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32202258 PISTON GRAFAL KIT (77X20) (INCL. 1, 2, 12)PISTON GRAFAL KIT (77X20) (INCL. 1, 2, 12)
-
43514365 BEARINGBEARING
-
52201132 CONNECT ROD KIT, ASSYCONNECT ROD KIT, ASSY
-
63514363 BEARING BALLBEARING BALL
-
73585503 BEARING BALLBEARING BALL
-
83514310 BEARING BALL, EXTRACEBEARING BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105133689 GEAR PUMP DRIVE 10 STARTGEAR PUMP DRIVE 10 START
-
117721117 KEY, WOODRUFFKEY, WOODRUFF
-
122202520 CRANKSHAFT, KIT (INCL. 6-8, 10)CRANKSHAFT, KIT (INCL. 6-8, 10)
