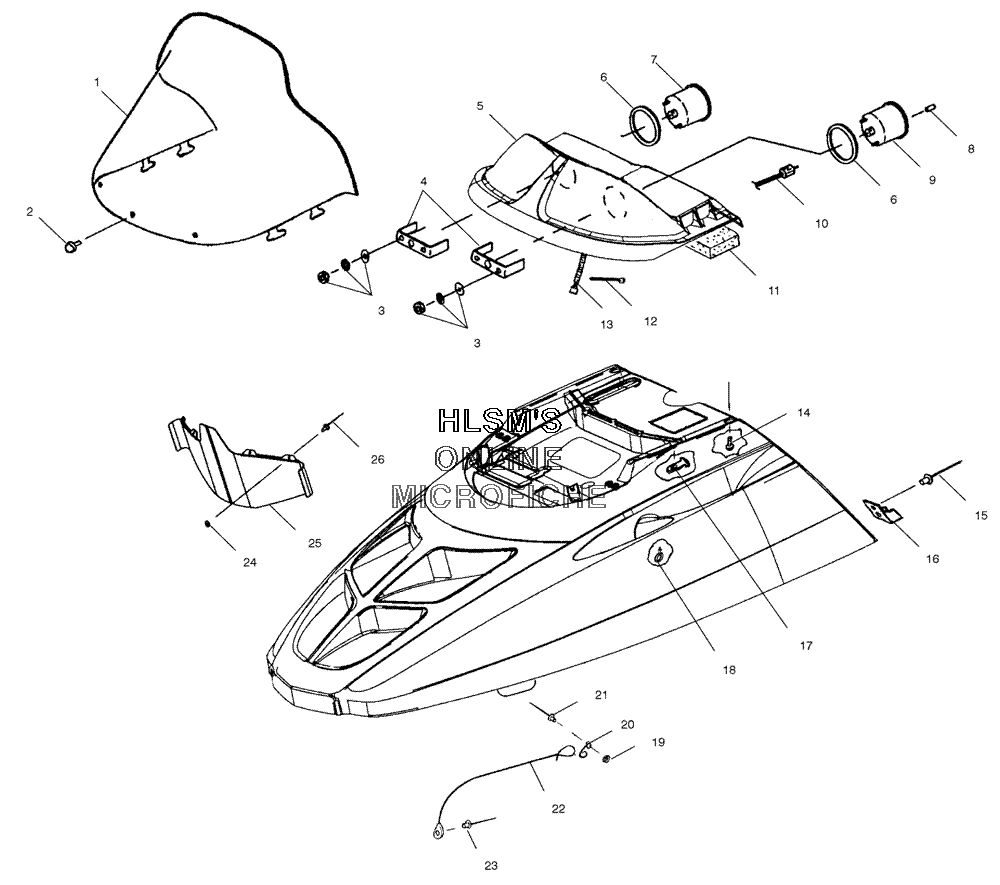

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
15433165 WINDSHIELD GEN 2, FLR 14" SMOKEWINDSHIELD GEN 2, FLR 14" SMOKE
-
27621509 RIVET, PLASTI-LOCKRIVET, PLASTI-LOCK
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRACKET TACHOMETER/SPEEDOMETER 5"BRACKET TACHOMETER/SPEEDOMETER 5"
-
52632630 INSTRUMENT HOUSING ASSY (INCL. WARNING DECALS)INSTRUMENT HOUSING ASSY (INCL. WARNING DECALS)
-
63280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
73280409 TACHOMETER, 6P, W/FUEL LIGHT (WHITE/BLACK)TACHOMETER, 6P, W/FUEL LIGHT (WHITE/BLACK)
-
83280186 KNOB, TRIP ODOMETER THD (LEFT)KNOB, TRIP ODOMETER THD (LEFT)
-
93280407 SPEEDOMETER, 5" 120 MPH ASSY (WHITE/BLACK) (INCL. 3, 4, 6)SPEEDOMETER, 5" 120 MPH ASSY (WHITE/BLACK) (INCL. 3, 4, 6)
-
103280341 CABLE, SPEEDOMETER (90")CABLE, SPEEDOMETER (90")
-
115811625 FOAM, PREFILTERFOAM, PREFILTER
-
127080138 CABLE TIECABLE TIE
-
132460732 HARNESS, HEADLIGHT G2 COM E/RHARNESS, HEADLIGHT G2 COM E/R
-
147517441 SCREW (.75)SCREW (.75)
-
157621334 RIVETRIVET
-
165430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
175410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
187080886 CLIP (ROSEBUD/GRAY)CLIP (ROSEBUD/GRAY)
-
197555904 WASHERWASHER
-
205242893 CLIP, PIGTAILCLIP, PIGTAIL
-
217661084 RIVETRIVET
-
227080764 CABLE, HOOD HYBRIDCABLE, HOOD HYBRID
-
237621402 RIVET, POPRIVET, POP
-
247555727 WASHERWASHER
-
255243212 DEFLECTOR AIR, HOODDEFLECTOR AIR, HOOD
-
267621301 RIVETRIVET
