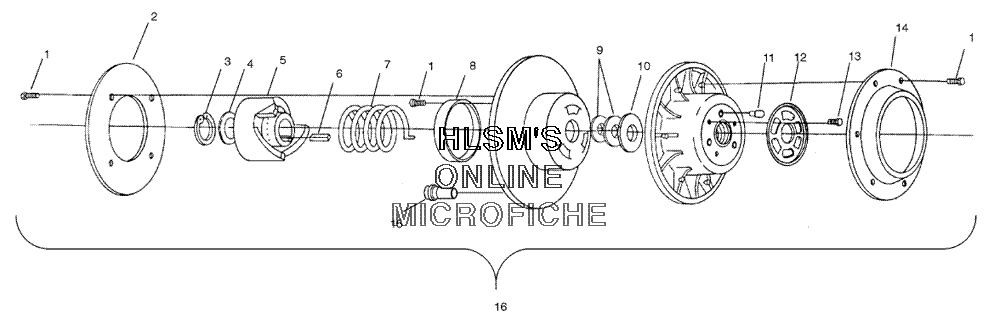

CLUTCH - DRIVEN для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7512048 SCREW
    SCREW
  • 2
    5243158 PLATE DRIVEN, VENTED
    PLATE DRIVEN, VENTED
  • 3
    7714804 RING, RETAINING
    RING, RETAINING
  • 4
    7556804 WASHER
    WASHER
  • 5
    5131623 RAMP, DRIVEN R32 MACH
    RAMP, DRIVEN R32 MACH
  • 6
    7721103 KEY SQUARE
    KEY SQUARE
  • 7
    7041646 SPRING, CLUTCH (SILVER/BLUE)
    SPRING, CLUTCH (SILVER/BLUE)
  • 8
    3569803 BUSHING DRIVEN LARGE DU
    BUSHING DRIVEN LARGE DU
  • 9
    7556804 WASHER (.03)
    WASHER (.03)
  • 9
    7555898 WASHER (.02)
    WASHER (.02)
  • 9
    7556076 WASHER (.025)
    WASHER (.025)
  • 10
    7555865 WASHER (.075)
    WASHER (.075)
  • 11
    5020653 PIN ADJUST DRIVEN
    PIN ADJUST DRIVEN
  • 12
    5222878 CAM, DRIVEN ADJUSTABLE
    CAM, DRIVEN ADJUSTABLE
  • 13
    7515133 SCREW
    SCREW
  • 14
    5243157 CAP DRIVEN, VENTED
    CAP DRIVEN, VENTED
  • 15
    5430466 BUTTON RAMP
    BUTTON RAMP
  • 16
    1321925 DRIVEN CLUTCH BASIC 203 N/B ASSY (INCL. ALL LESS 2, 5, 7, 14)
    DRIVEN CLUTCH BASIC 203 N/B ASSY (INCL. ALL LESS 2, 5, 7, 14)
