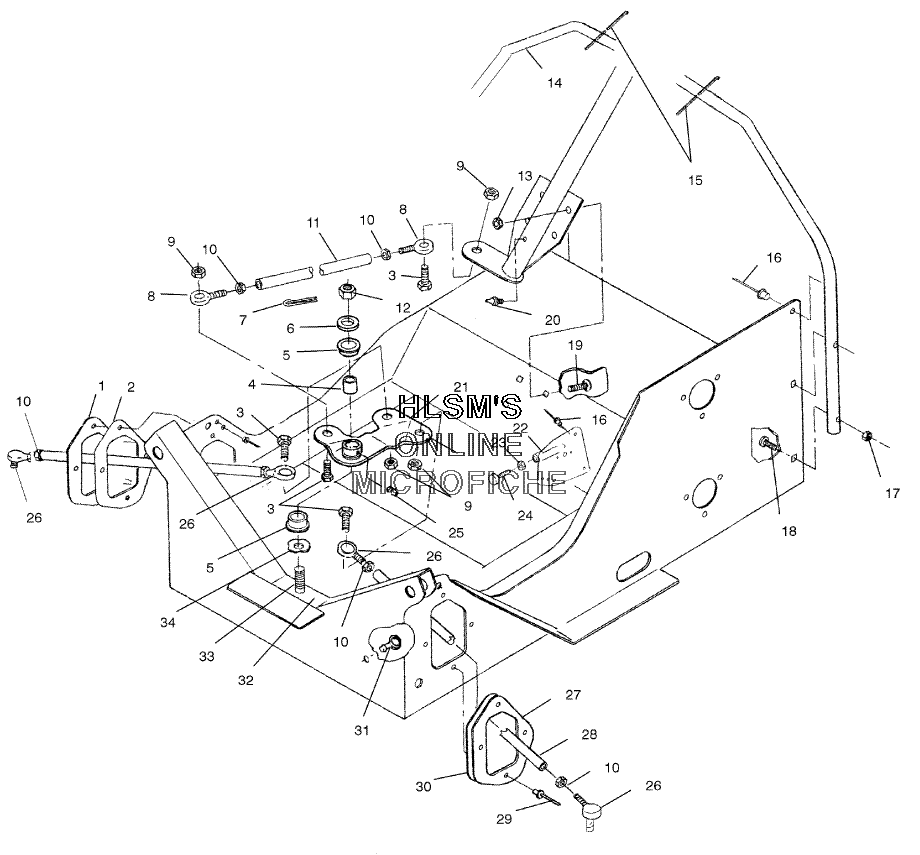

STEERING ASSEMBLY для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска
-
№АртикулНазвание
-
15211453-067 PLATE, BOOTSEAL (RIGHT/BLACK)PLATE, BOOTSEAL (RIGHT/BLACK)
-
25411123 BOOT, TIEROD XTRA (RIGHT)BOOT, TIEROD XTRA (RIGHT)
-
37515528 BOLTBOLT
-
45010463 BUSHINGBUSHING
-
53563907 BUSHINGBUSHING
-
67555721 WASHERWASHER
-
77661203 PIN, COTTERPIN, COTTER
-
87060166 ROD END (LEFT)ROD END (LEFT)
-
87060167 ROD END (RIGHT)ROD END (RIGHT)
-
97542403 NUT LOCKNUT LOCK
-
107542424 NUT (LEFT)NUT (LEFT)
-
107542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
115332712 ROD DRAG LINKROD DRAG LINK
-
127542703 NUT FLEXLOCKNUT FLEXLOCK
-
137542303 NUT FLEXLOCKNUT FLEXLOCK
-
141013153-067 STEERING HOOP (BLACK)STEERING HOOP (BLACK)
-
157080804 CABLE TIE RELEASABLE, 5 1/2"CABLE TIE RELEASABLE, 5 1/2"
-
167661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
177542103 NUT, FLEXLOCKNUT, FLEXLOCK
-
187512275 BOLT CARRIAGEBOLT CARRIAGE
-
197517428 BOLTBOLT
-
207080561 FITTING, LUB/VENFITTING, LUB/VEN
-
211822286 STRG ASSY (CENTER) (INCL. 13, 25)STRG ASSY (CENTER) (INCL. 13, 25)
-
221012855 TORQUE STOPTORQUE STOP
-
237542404 NUTNUT
-
243110078 STOP, TORQUESTOP, TORQUE
-
257080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
267060174 ROD END, 3/8 HI-ANGLE (RIGHT)ROD END, 3/8 HI-ANGLE (RIGHT)
-
267060164 ROD END (LEFT)ROD END (LEFT)
-
275211454-067 PLATE, BOOTSEAT (BLACK)PLATE, BOOTSEAT (BLACK)
-
285020878 ROD TIEROD TIE
-
297621323 POP RIVETPOP RIVET
-
305411122 BOOT, TIEROD XTRA (LEFT)BOOT, TIEROD XTRA (LEFT)
-
314020139 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
325630563 BLOCK, STEERING (CAST)BLOCK, STEERING (CAST)
-
337512682 BOLTBOLT
-
347555735 WASHER, WAVEWASHER, WAVE
