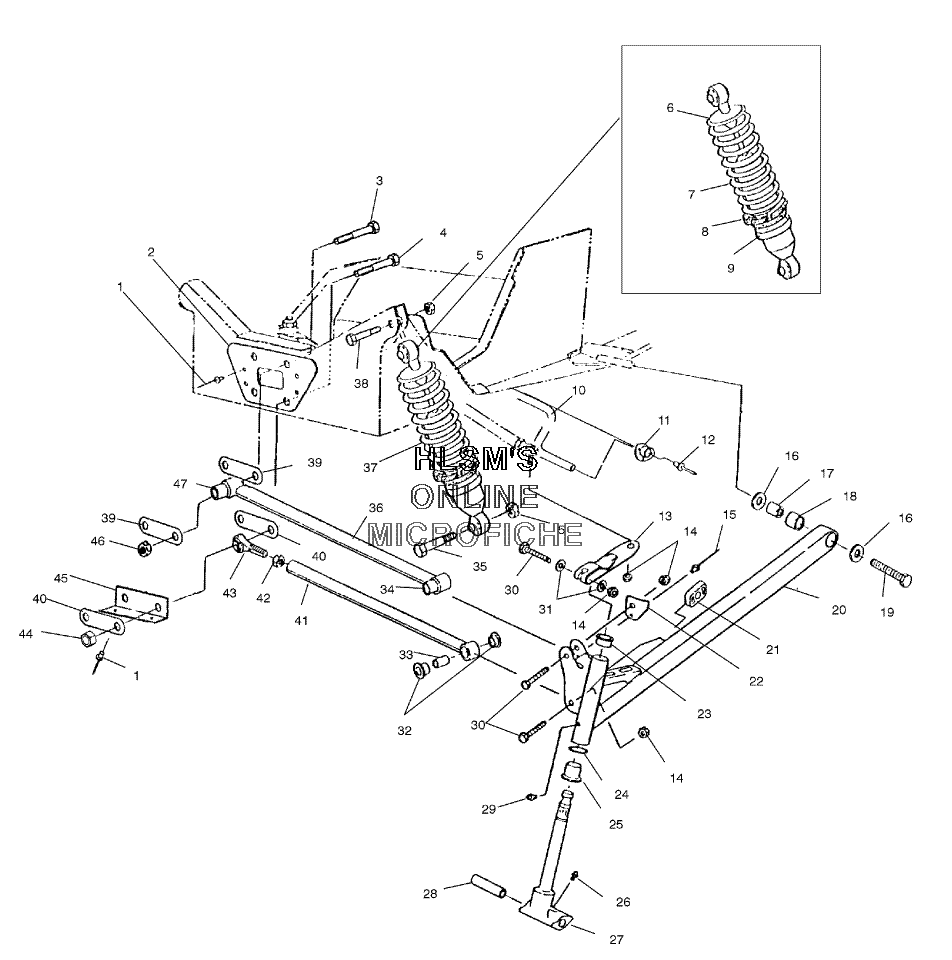

SUSPENSION - FRONT для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска

№

Артикул

Название
1

7661637 RIVET, INTERLOCK Z

RIVET, INTERLOCK Z

150 ₽
2

5211589-067 BRACE, BULK HEAD/STEERING (BLACK)

BRACE, BULK HEAD/STEERING (BLACK)

0 ₽
3

7512582 BOLT

BOLT

1 460 ₽
4

7512684 BOLT

BOLT

1 250 ₽
5

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
6

5630580 RETAINER, SPRING SLOTTED

RETAINER, SPRING SLOTTED

5 620 ₽
7

7041552-067 SPRING, COMPRESSION IFS (BLACK)

SPRING, COMPRESSION IFS (BLACK)

8 530 ₽
8

5431734 RING, SPRING PRELOAD ADJUST

RING, SPRING PRELOAD ADJUST

8 740 ₽
9

1500063 RETAINER, SPRING BODY THREADED

RETAINER, SPRING BODY THREADED

8 530 ₽
10

5224757-067 BAR SWAY (BLACK)

BAR SWAY (BLACK)

0 ₽
11

5432412 BUSHING, SWAY BAR

BUSHING, SWAY BAR

3 430 ₽
12

7621477 RIVET

RIVET

340 ₽
13

5241560-385 ARM STEERING (CLOUD SILVER)

ARM STEERING (CLOUD SILVER)

7 910 ₽
14

7542403 NUT LOCK

NUT LOCK

630 ₽
15

7661130 RIVET

RIVET

250 ₽
16

7555721 WASHER

WASHER

250 ₽
17

5010310 TUBE, BUSHING

TUBE, BUSHING

1 460 ₽
18

5410872 PIVOT, RUBBER

PIVOT, RUBBER

1 310 ₽
19

7512557 BOLT

BOLT

630 ₽
20

1822506-385 TRAILING ARM ASSY (LEFT/CLOUD SILVER) (INCL. 17, 18)

TRAILING ARM ASSY (LEFT/CLOUD SILVER) (INCL. 17, 18)

60 320 ₽
20

1822507-385 TRAILING ARM ASSY (RIGHT/CLOUD SILVER) (INCL. 17, 18)

TRAILING ARM ASSY (RIGHT/CLOUD SILVER) (INCL. 17, 18)

60 320 ₽
21

5432674 SLIDE, SWAYBAR 9/16

SLIDE, SWAYBAR 9/16

2 500 ₽
22

5241569-385 STOP STEERING (LEFT/CLOUD SILVER)

STOP STEERING (LEFT/CLOUD SILVER)

1 040 ₽
22

5241570-385 STOP STEERING (RIGHT/CLOUD SILVER)

STOP STEERING (RIGHT/CLOUD SILVER)

1 040 ₽
23

3573909 BUSHING FLANGE

BUSHING FLANGE

420 ₽
24

7556509 BUSHING

BUSHING

60 ₽
25

3574208 BUSHING, FLANGED

BUSHING, FLANGED

580 ₽
26

7080306 FITTING, LUBE. W/BALL CHECK

FITTING, LUBE. W/BALL CHECK

880 ₽
27

6230102-067 SHAFT, SPINDLE TRAILING (BLACK)

SHAFT, SPINDLE TRAILING (BLACK)

30 160 ₽
28

5010158 BUSHING, PIVOT

BUSHING, PIVOT

2 140 ₽
29

7080433 FITTING, LUBRICATION THREADED

FITTING, LUBRICATION THREADED

250 ₽
30

7517583 SCREW HEXAGON/CP GR5-Y-SP

SCREW HEXAGON/CP GR5-Y-SP

630 ₽
31

7555832 WASHER

WASHER

630 ₽
32

5431486 BUSH, RADIUS ROD PIVOT (OUTER)

BUSH, RADIUS ROD PIVOT (OUTER)

580 ₽
33

5010127 BUSHING RADIUS ROD

BUSHING RADIUS ROD

830 ₽
34

5411099 BUSHING, RADIUS ROD PIVOT

BUSHING, RADIUS ROD PIVOT

2 810 ₽
35

7515433 SCREW

SCREW

250 ₽
36

1822425-385 WELD RADIUS ROD

WELD RADIUS ROD

0 ₽
37

7041544 SHOCK, GAS IFS

SHOCK, GAS IFS

0 ₽
38

7515415 SCREW

SCREW

250 ₽
39

5211344 STRAP, SPACER (TOP)

STRAP, SPACER (TOP)

1 250 ₽
40

5211345 STRAP, SPACER (BOTTOM)

STRAP, SPACER (BOTTOM)

1 250 ₽
41

1822444-385 WELD RADIUS ROD (LOWER/CLOUD SILVER)

WELD RADIUS ROD (LOWER/CLOUD SILVER)

12 480 ₽
42

7542711 NUT JAM

NUT JAM

110 ₽
43

7061052 ROD END RADIUS (RIGHT/LOWER)

ROD END RADIUS (RIGHT/LOWER)

9 780 ₽
44

7542703 NUT FLEXOC

NUT FLEXOC

2 500 ₽
45

5242578 BRACKET, RADIUS ROD BOTTOM

BRACKET, RADIUS ROD BOTTOM

1 870 ₽
46

7542503 NUT, FLEXLOCK

NUT, FLEXLOCK

1 870 ₽
47

5411095 BUSHING, PIVOT 7/16

BUSHING, PIVOT 7/16

3 430 ₽
