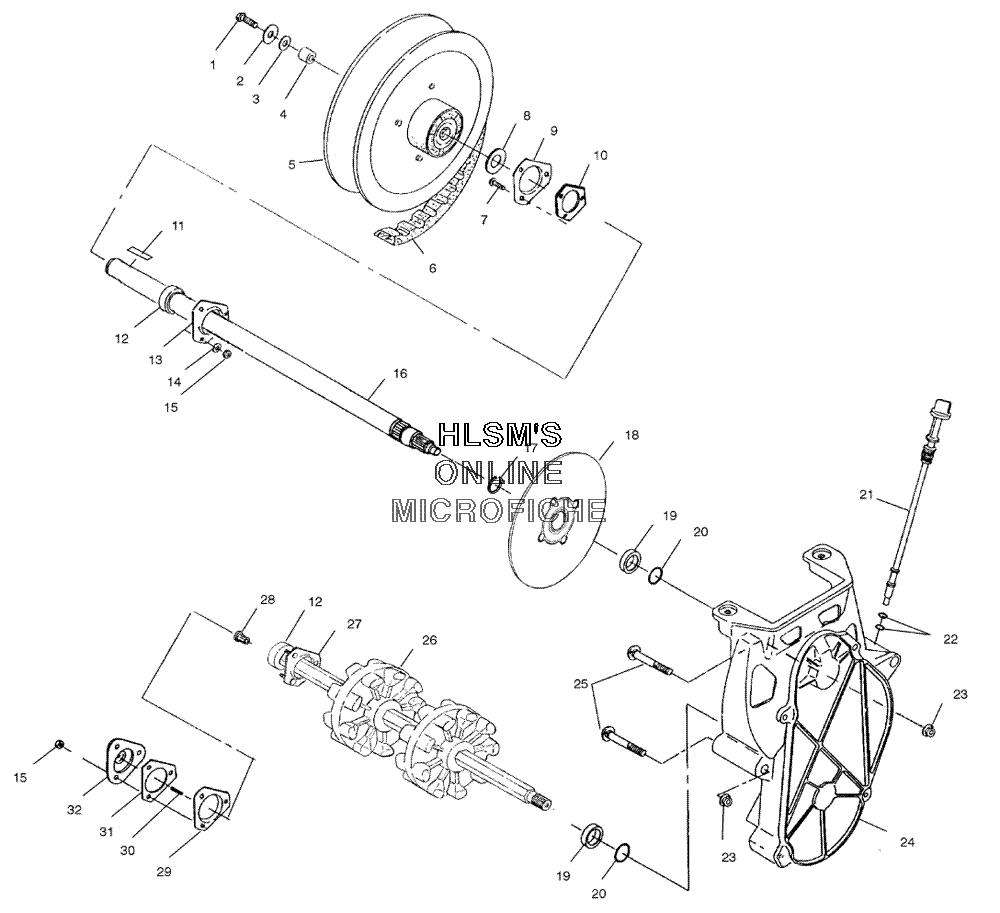

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17517820 BOLT HEXAGON/LK-GR5-ZBOLT HEXAGON/LK-GR5-Z
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020291 SPACERSPACER
-
63211070 BELT, DRIVE 28 DEG.BELT, DRIVE 28 DEG.
-
77512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
87556509 BUSHINGBUSHING
-
95241359 FLANGE ROD, RELUBE W/ZERKFLANGE ROD, RELUBE W/ZERK
-
105811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
117721128 KEYKEY
-
123514525 BEARINGBEARING
-
135222751 FLANGETTEFLANGETTE
-
147558402 WASHER, FLATWASHER, FLAT
-
157542324 NUT, NYLOKNUT, NYLOK
-
161332207 JACKSHAFT 15 SPLINE ASSY (INCL. 12, 17)JACKSHAFT 15 SPLINE ASSY (INCL. 12, 17)
-
177710422 RING, RETAININGRING, RETAINING
-
181910612 DISC BRAKE, FORGEDDISC BRAKE, FORGED
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O RINGO RING
-
215431419 DIPSTICK ASSYDIPSTICK ASSY
-
225410675 O-RINGO-RING
-
237542423 NUT, FLANGENUT, FLANGE
-
257515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
261590354 DRIVESHAFT, 2 DR W/BEARING XHS ASSYDRIVESHAFT, 2 DR W/BEARING XHS ASSY
-
271012945 FLANGETTE W/SCREWS ASSYFLANGETTE W/SCREWS ASSY
-
283280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
295243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
303280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
315830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
323280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
