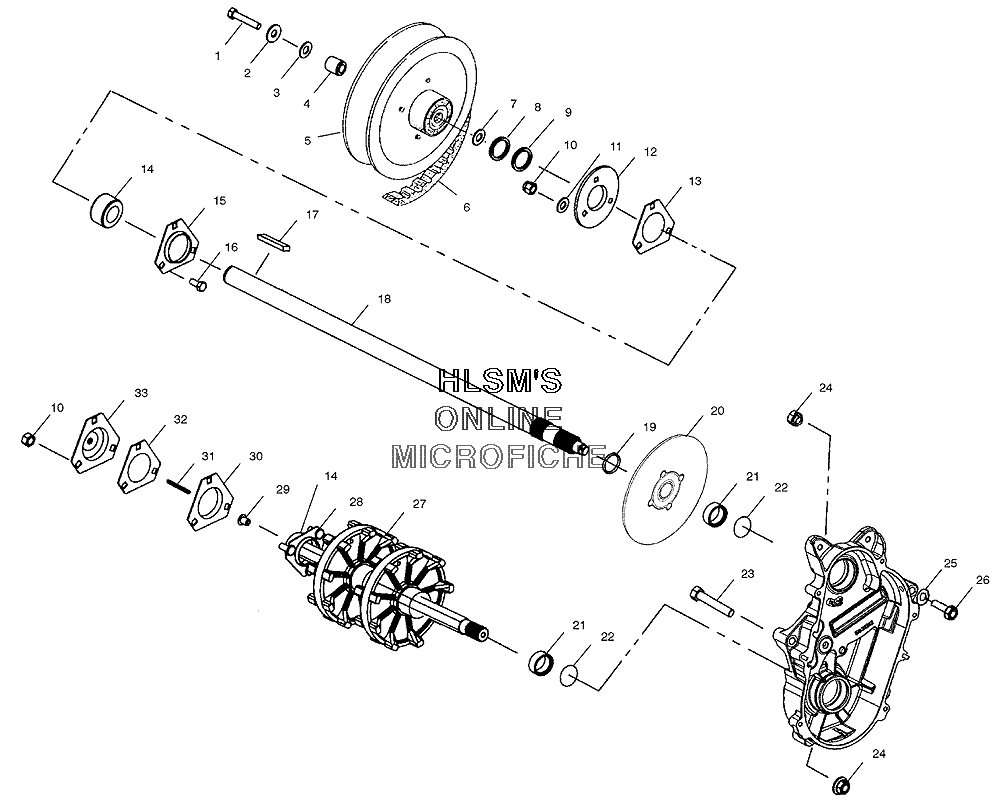

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris FRONTIER TOURING (S03NT7DS) - 2003 года выпуска`
-
№АртикулНазвание
-
17517820 BOLT HEXAGON/LK-GR5-ZBOLT HEXAGON/LK-GR5-Z
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHER FLATWASHER FLAT
-
45020291 SPACERSPACER
-
63211092 BELT DRIVE INCP-CVTBELT DRIVE INCP-CVT
-
77555917 WASHERWASHER
-
87555864 WASHERWASHER
-
97556509 BUSHINGBUSHING
-
107542324 NUT, NYLOKNUT, NYLOK
-
117558402 WASHER FLATWASHER FLAT
-
125241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
127080561 FITTING, LUB/VENFITTING, LUB/VEN
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721128 KEYKEY
-
181332220 JACKSHAFT, ASSY. W/BEARING (15T) (INCL. 16, 19)JACKSHAFT, ASSY. W/BEARING (15T) (INCL. 16, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910612 DISC BRAKE, FORGEDDISC BRAKE, FORGED
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
247542423 NUT, FLANGENUT, FLANGE
-
257558403 WASHER WROUGHTWASHER WROUGHT
-
267518002 SCREW HEXAGON/CAP G5-YSCREW HEXAGON/CAP G5-Y
-
271590346 DRSHAFT, ASSY. 1.06 2DR W (SMOOTH) (INCL. 14, 28, 29)DRSHAFT, ASSY. 1.06 2DR W (SMOOTH) (INCL. 14, 28, 29)
-
281012945 FLANGETTE W/SCREWS ASSY.FLANGETTE W/SCREWS ASSY.
-
293280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
305243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
313280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
325830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
333280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
