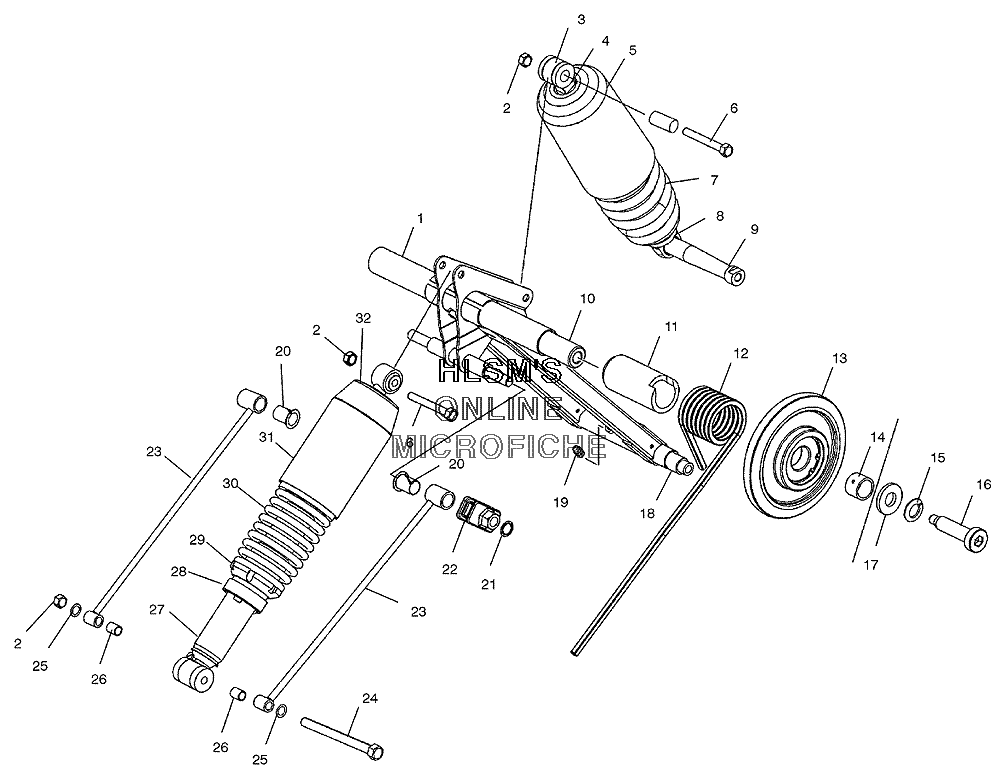

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris FRONTIER TOURING (S03NT7DS) - 2003 года выпуска
-
№АртикулНазвание
-
11541798-067 WELDREAR TORQUE ARM, M12 (BLACK)WELDREAR TORQUE ARM, M12 (BLACK)
-
27542411 NUT, FLEXLOCNUT, FLEXLOC
-
37042141 SHOCK REAR TRACKSHOCK REAR TRACK
-
45132064 RETAINER SPRINGRETAINER SPRING
-
55434921 SHIELD SPRINGSHIELD SPRING
-
67515433 SCREWSCREW
-
77042161 SPRINGSPRING
-
83514450 BEARING PLAINBEARING PLAIN
-
105133484 SHAFT (M12 STEEL) (UPPER)SHAFT (M12 STEEL) (UPPER)
-
115434627 SLEEVE TORSION SPRINGSLEEVE TORSION SPRING
-
127042139-067 SPRING TORSION (LEFT/BLACK)SPRING TORSION (LEFT/BLACK)
-
127042140-067 SPRING TORSION (RIGHT/BLACK)SPRING TORSION (RIGHT/BLACK)
-
131590355 WHEEL PLAIN OFFSET ASSY.WHEEL PLAIN OFFSET ASSY.
-
133514330 BEARING 6206BEARING 6206
-
145133485 COLLAR BEARING LOCKCOLLAR BEARING LOCK
-
147512257 SCREW SOCKET SETSCREW SOCKET SET
-
157552614 WASHER LOCKWASHER LOCK
-
167517815 SCREW SOCKET HEAD P80-DGPTSCREW SOCKET HEAD P80-DGPT
-
177555984 WASHER FLATWASHER FLAT
-
197080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
203514441 BUSHING NYLON, FLANGEBUSHING NYLON, FLANGE
-
217080394 CLIP, PUSH ONCLIP, PUSH ON
-
225432983 ROLLER, SPRING ADJUST SQUAREROLLER, SPRING ADJUST SQUARE
-
231541821-067 WELD SHOCK ROD (BLACK)WELD SHOCK ROD (BLACK)
-
247517378 SCREWSCREW
-
257555795 WASHER WAVE SPRINGWASHER WAVE SPRING
-
265333028 SPACERSPACER
-
277041486 SHOCK, FRONT TRACK ADJUST HEAVY BODY (FX/X)SHOCK, FRONT TRACK ADJUST HEAVY BODY (FX/X)
-
281500091 RETAINER, SPRING HEAVY BODYRETAINER, SPRING HEAVY BODY
-
295431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
307041351-067 SPRING, REAR SUSPENSION LXC (BLACK)SPRING, REAR SUSPENSION LXC (BLACK)
-
315410874 SHIELD, SPRINGSHIELD, SPRING
-
325630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
