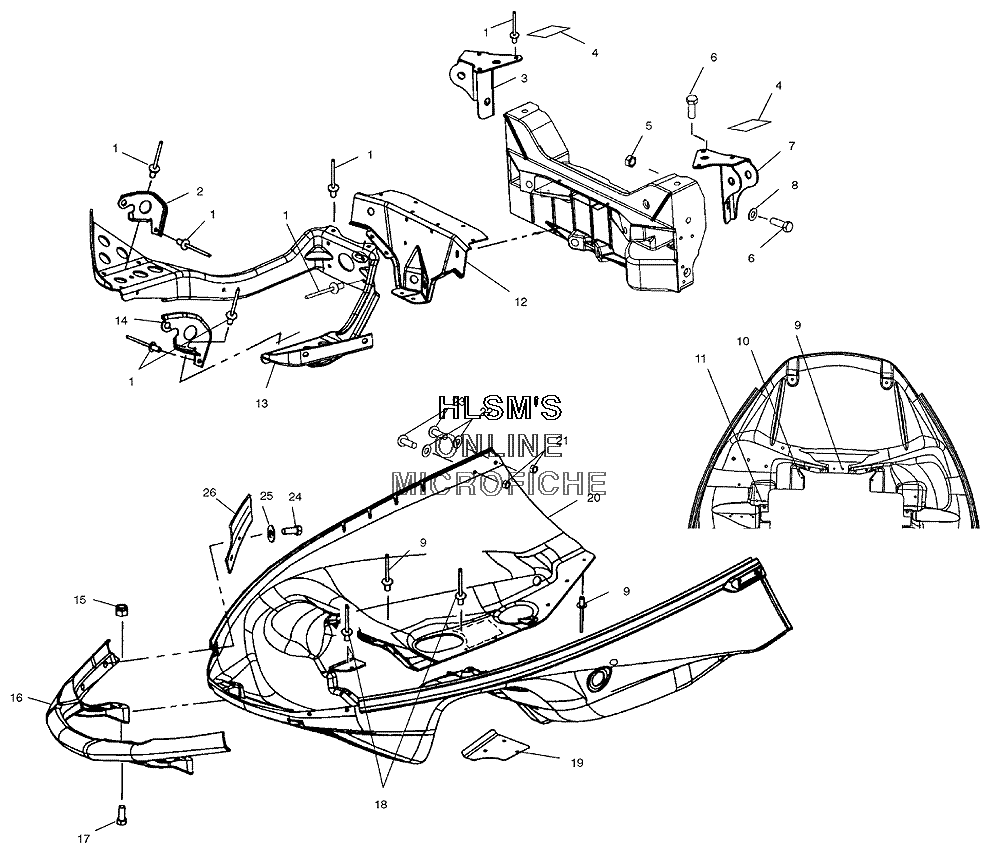

NOSEPAN ASSEMBLY #2 для Polaris FRONTIER TOURING (S03NT7DS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET INTERLOCK Z
    RIVET INTERLOCK Z
  • 2
    5243992-067 HINGE PIVOT (BLACK/RIGHT/LOWER)
    HINGE PIVOT (BLACK/RIGHT/LOWER)
  • 3
    5243978 MOUNT SHOCK BULKHEAD (RIGHT/UPPER)
    MOUNT SHOCK BULKHEAD (RIGHT/UPPER)
  • 4
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 5
    7547180 NUT FLANGED, 3/8-16 NYLON-Z
    NUT FLANGED, 3/8-16 NYLON-Z
  • 6
    7517935 SCREW HEXAGON SOCKET CS ZY3
    SCREW HEXAGON SOCKET CS ZY3
  • 7
    5243977 MOUNT SHOCK BULKHEAD (LEFT/UPPER)
    MOUNT SHOCK BULKHEAD (LEFT/UPPER)
  • 8
    7556153 WASHER 3/8 FW
    WASHER 3/8 FW
  • 9
    7621467 RIVET BLIND
    RIVET BLIND
  • 10
    7621431 RIVET
    RIVET
  • 11
    7661136 RIVET
    RIVET
  • 12
    5244049-067 BRACKET RADIUS ROD SUPPORT (BLACK)
    BRACKET RADIUS ROD SUPPORT (BLACK)
  • 13
    5244050 BRACE, PAN (LOWER)
    BRACE, PAN (LOWER)
  • 14
    5243991-067 HINGE PIVOT (LEFT/BLACK/LOWER)
    HINGE PIVOT (LEFT/BLACK/LOWER)
  • 15
    7542153 NUT, NYLOK FLANGED
    NUT, NYLOK FLANGED
  • 16
    5433518-070 BUMPER, ASSY. (FRONT/BLACK)
    BUMPER, ASSY. (FRONT/BLACK)
  • 17
    7512163 BOLT
    BOLT
  • 18
    7621472 RIVET
    RIVET
  • 19
    5245853 SHIELD, HEAT EXTENDED
    SHIELD, HEAT EXTENDED
  • 20
    5434183-070 NOSEPAN GAS ASSIST (BLACK)
    NOSEPAN GAS ASSIST (BLACK)
  • 21
    7542122 NUT NYLOK
    NUT NYLOK
  • 22
    7555827 WASHER
    WASHER
  • 23
    7515166 SCREW
    SCREW
  • 24
    7517312 SCREW
    SCREW
  • 25
    7552801 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 26
    5244888 GUIDE HOOD (LEFT)
    GUIDE HOOD (LEFT)
  • 26
    5244889 GUIDE HOOD (RIGHT)
    GUIDE HOOD (RIGHT)
